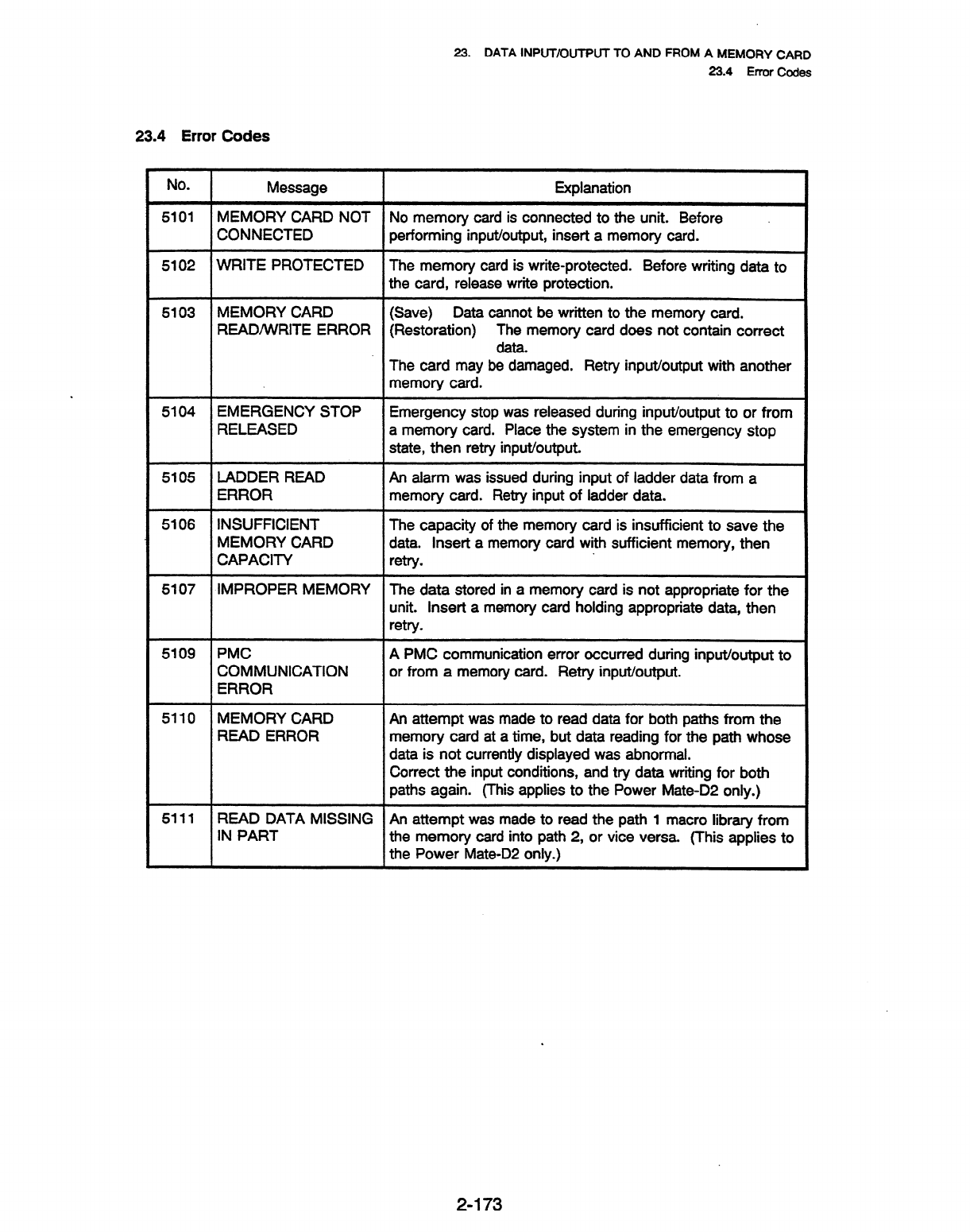

23. DATA lNPUT/OU’l-PUT TO AND FROM A MEMORY CARD

23.4 Error Codes

Message

Explanation

5101

MEMORY CARD NOT No memory card is connected to the unit. Before

CONNECTED

performing input/output, insert a memory card.

5102 \NRITE PROTECTED The memory card is write-protected. Before writing data to

the card, release write protection.

5103 MEMORY CARD

(Save) Data cannot be written to the memory card.

READMIRITE ERROR (Restoration)

The memory card does not contain correct

data.

The card may be damaged. Retry input/output with another

memory card.

5104 EMERGENCY STOP Emergency stop was released during input/output to or from

RELEASED

a memory card. Place the system in the emergency stop

state, then retry input/output.

5105 LADDER READ

An alarm was issued during input of ladder data from a

ERROR

memory card. Retry input of ladder data.

5106 INSUFFICIENT

The capacity of the memory card is insufficient to save the

MEMORY CARD data. Insert a memory card with sufficient memory, then

CAPACITY retry.

5107

,lMPROPER MEMORY The data stored in a memory card is not appropriate for the

unit. Insert a memory card holding appropriate data, then

retry.

5109 PMC

COMMUNICATION

ERROR

A PMC communication error occurred during input/output to

or from a memory card. Retry input/output.

5110 ' MEMORY CARD

READ ERROR

An attempt was made to read data for both paths from the

memory card at a time, but data reading for the path whose

data is not currently displayed was abnormal.

Correct the input conditions, and try data writing for both

paths again. (This applies to the Power Mate-D2 only.)

5111

READ DATA MISSING An attempt was made to read the path 1 macro library from

IN PART

the memory card into path 2, or vice versa. (This applies to

the Power Mate-D2 only.)

2-173
