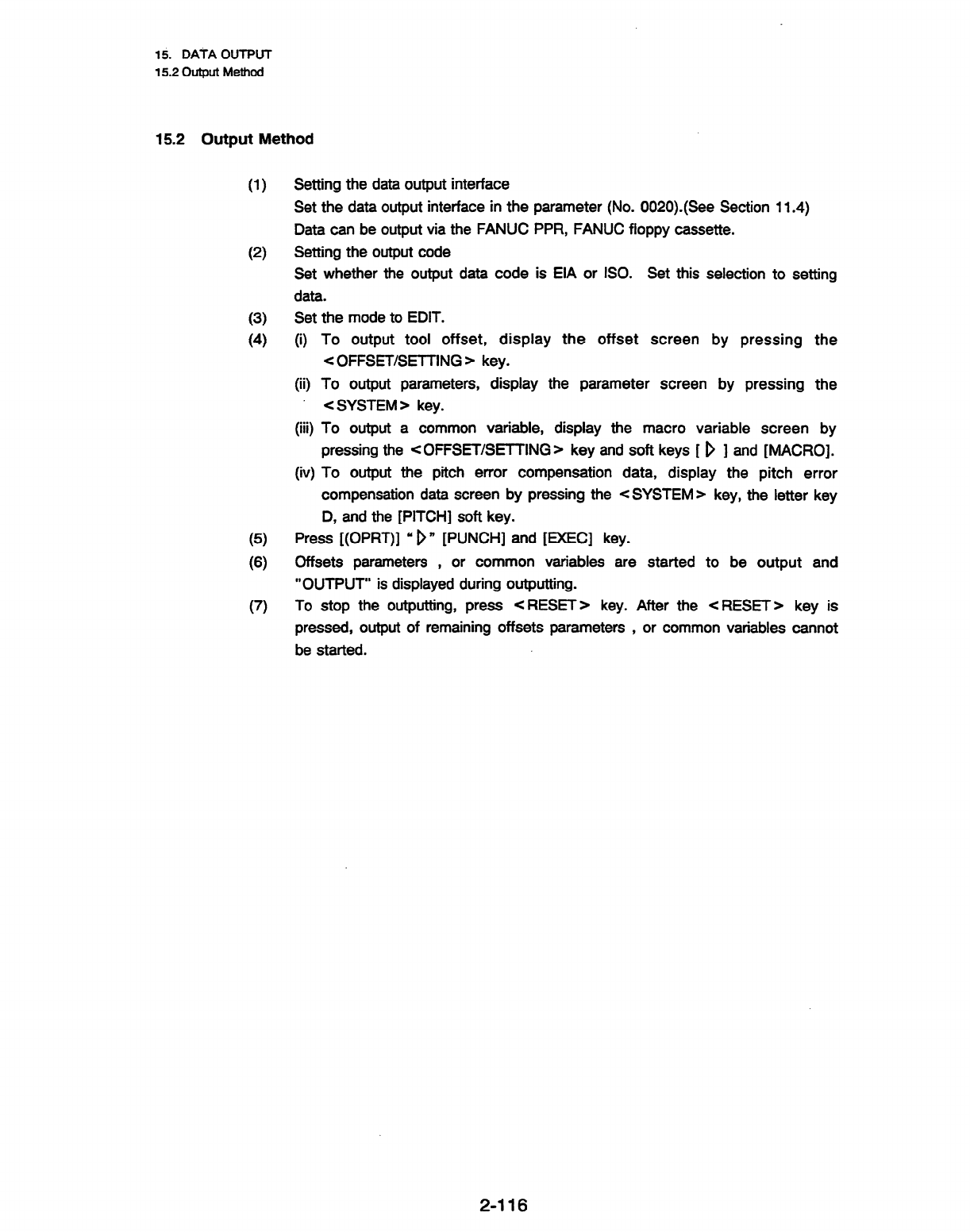

15.2 Output Method
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Setting the data output interface
Set the data output interface in the parameter (No. 0020).(See Section 11.4)
Data can be output via the FANUC PPR, FANUC fioppy cassette.
Setting the output code
Set whether the output data code is EIA or ISO. Set this selection to setting
data.
Set the mode to EDIT.
(i) To output tool offset, display the offset screen by pressing the
< OFFSET/SETTING ) key.
(ii) To output parameters, display the parameter screen by pressing the
* <SYSTEM> key.
(iii) To output a common variable, display the macro variable screen by
pressing the <OFFSET/SETTING > key and soft keys [ D ] and [MACRO].
(iv) To output the pitch error compensation data, display the pitch error
compensation data screen by pressing the <SYSTEM) key, the letter key
D, and the [PITCH] soft key.
Press [(OPRT)] u D” [PUNCH] and [EXEC] key.
OfFsets parameters ,
or common variables are started to be output and
“OUTPUT” is displayed during outputting.
To stop the outputting, press <RESET> key. After the <RESET> key is
pressed, output of remaining offsets parameters , or common variables cannot
be started.
