2. OPERATIONAL DEVICES

2.1 DPUMDI Panel, CRT/MD1 Panel

21.2 CFWMDI Panel

@ Function keys

~Acldresshumber keys

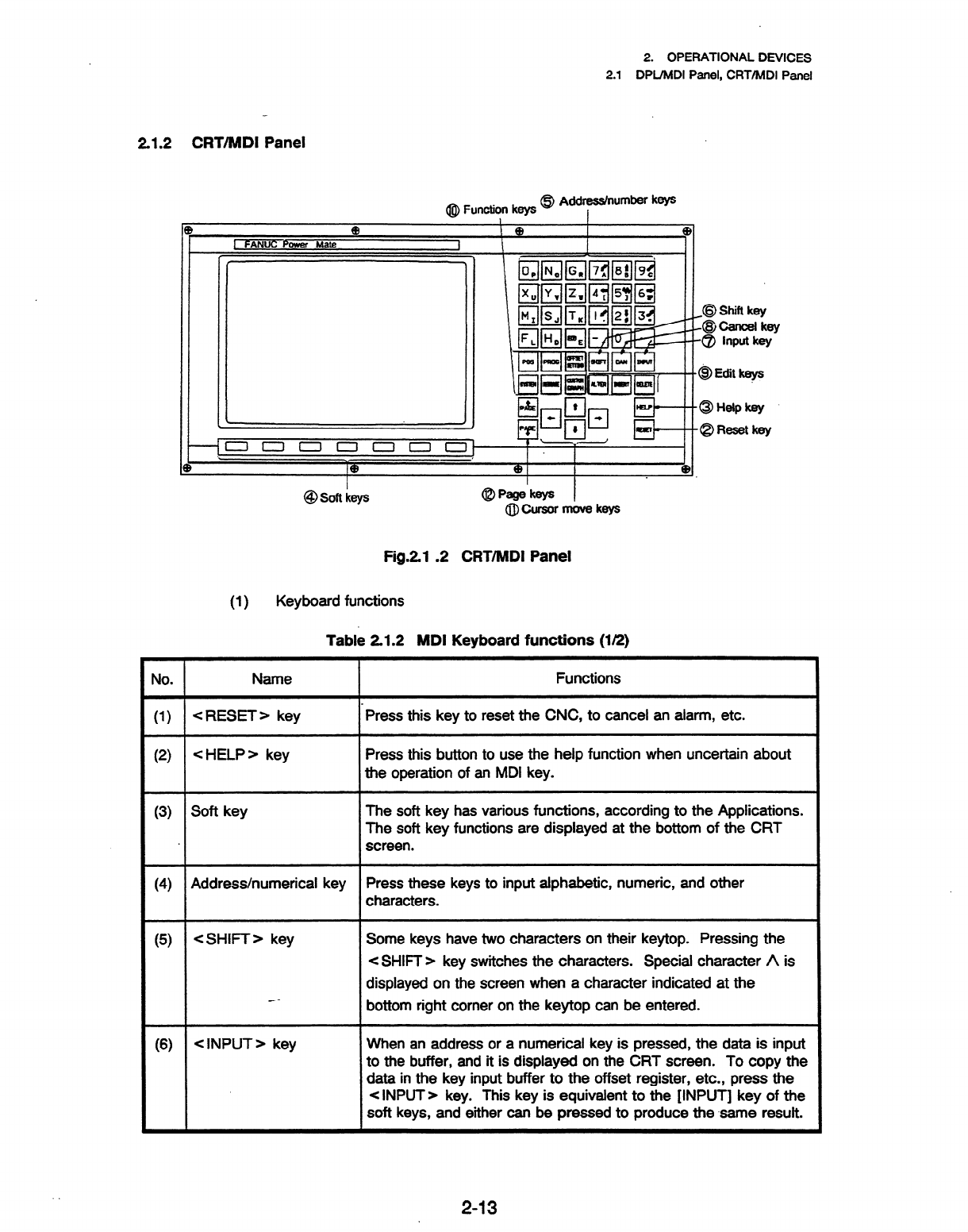

Fig.21 -2 CRT/lUlDI Panel

(1)

Keyboard functions

Table 21.2 MD1 Keyboard functions (l/2)

Name

Functions

(1)

< RESET) key

‘Press this key to reset the CNC, to cancel an alarm, etc.

(2)

< HELP) key

Press this button to use the help function when uncertain about

the operation of an MDI key.

(3) Soft key

The soft key has various functions, according to the Applications.

The soft key functions are displayed at the bottom of the CRT

screen.

(4) Address/numerical key

Press these keys to input alphabetic, numeric, and other

characters.

(5)

<SHIFT> key Some keys have two characters on their keytop. Pressing the

<SHIFT) key switches the characters. Special character A is

displayed on the screen when a character indicated at the

-_-

bottom right corner on the keytop can be entered.

(6)

< INPUT) key When an address or a numerical key is pressed, the data is input

to the buffer, and it is displayed on the CRT screen. To copy the

data in the key input buffer to the offset register, etc., press the

< INPUT ) key. This key is equivalent to the [INPUT] key of the

soft keys, and either can be pressed to produce the same resuit.

2-13
