4. INTERPOLATION FUNCTIONS

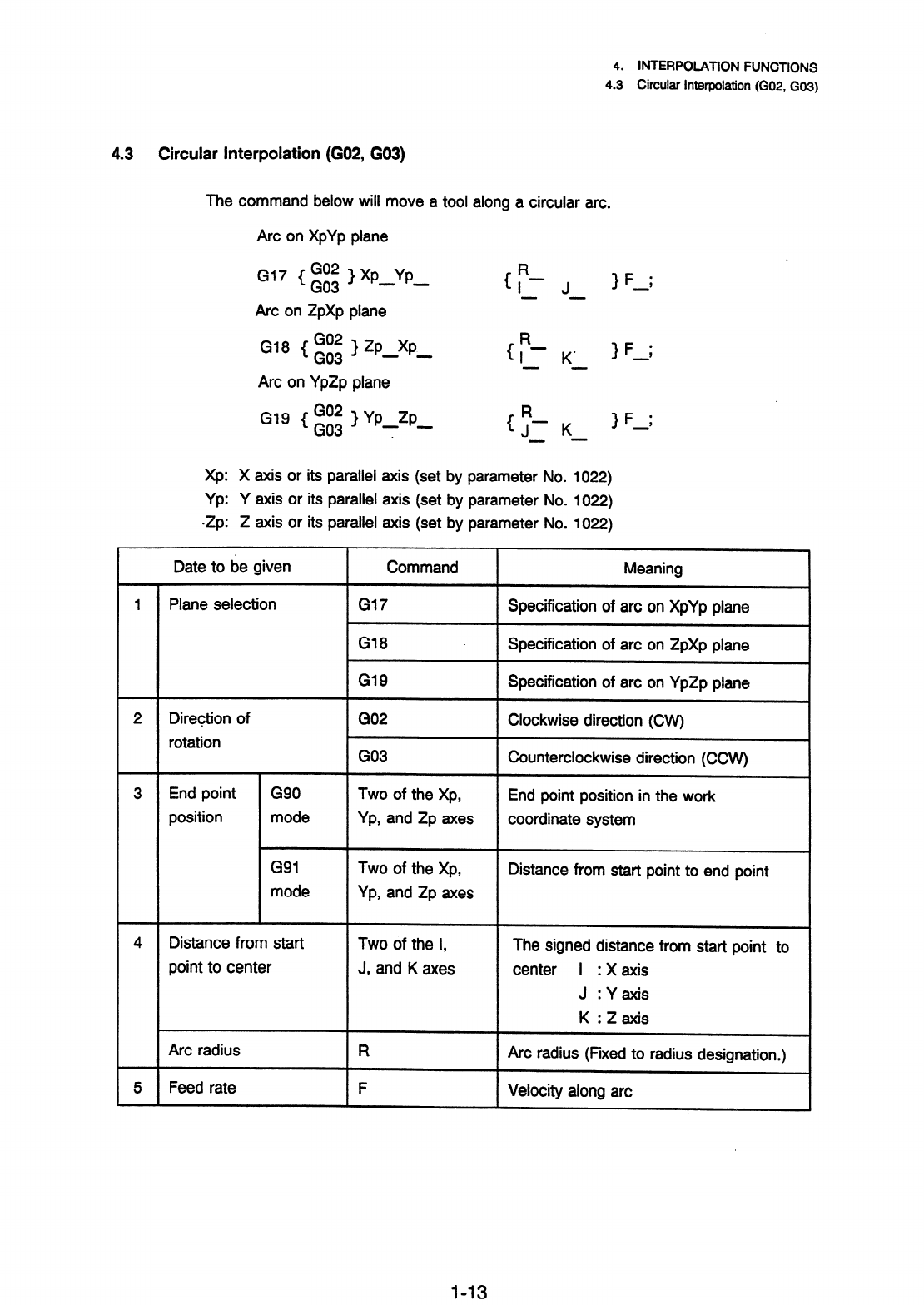

4.3 Circular Interpolation (GO2, G03)

4.3

Circular Interpolation (G02, G03)

The command below will move a tool along a circular arc.

Arc on XpYp plane

{ 1 - J

1 F-i

Arc on ZpXp plane

- -

(38 {g; 1 ZP

D -

Arc on YpZp plane

G19 { z;; )YP

- -

Xp: X axis ‘or its parallel axis (set by parameter No. 1022)

Yp: Y axis or its parallel axis (set by parameter No. 1022)

-Zp: Z axis or its parallel axis (set by parameter No. 1022)

Date to be given

Command

Meaning

Plane selection G17 Specification of arc on XpYp plane 1

G18 Specification of arc on ZpXp plan0

G19 Specification of arc on YpZp plane

2 GO2

Clockwise direction (CW)

Direction of

rotation

End point G90

position mode *

G91

mode

GO3

Counterclockwise direction (CCW)

Two of the Xp,

Yp, and Zp axes

End point position in the work

coordinate system

Two of the Xp,

Yp, and Zp axes

Distance from start point to end point

Distance from start

Two of the I,

point to center

J, and K axes

The signed distance from start point to

center I : X axis

J :Y axis

K : Z axis

Arc radius (Fixed to radius designation.)

Arc radius

Velocity along arc

Feed rate

1-13
