5. FEED FUNCTIONS

5.8

Speed Control at Comers of Blocks

5.8

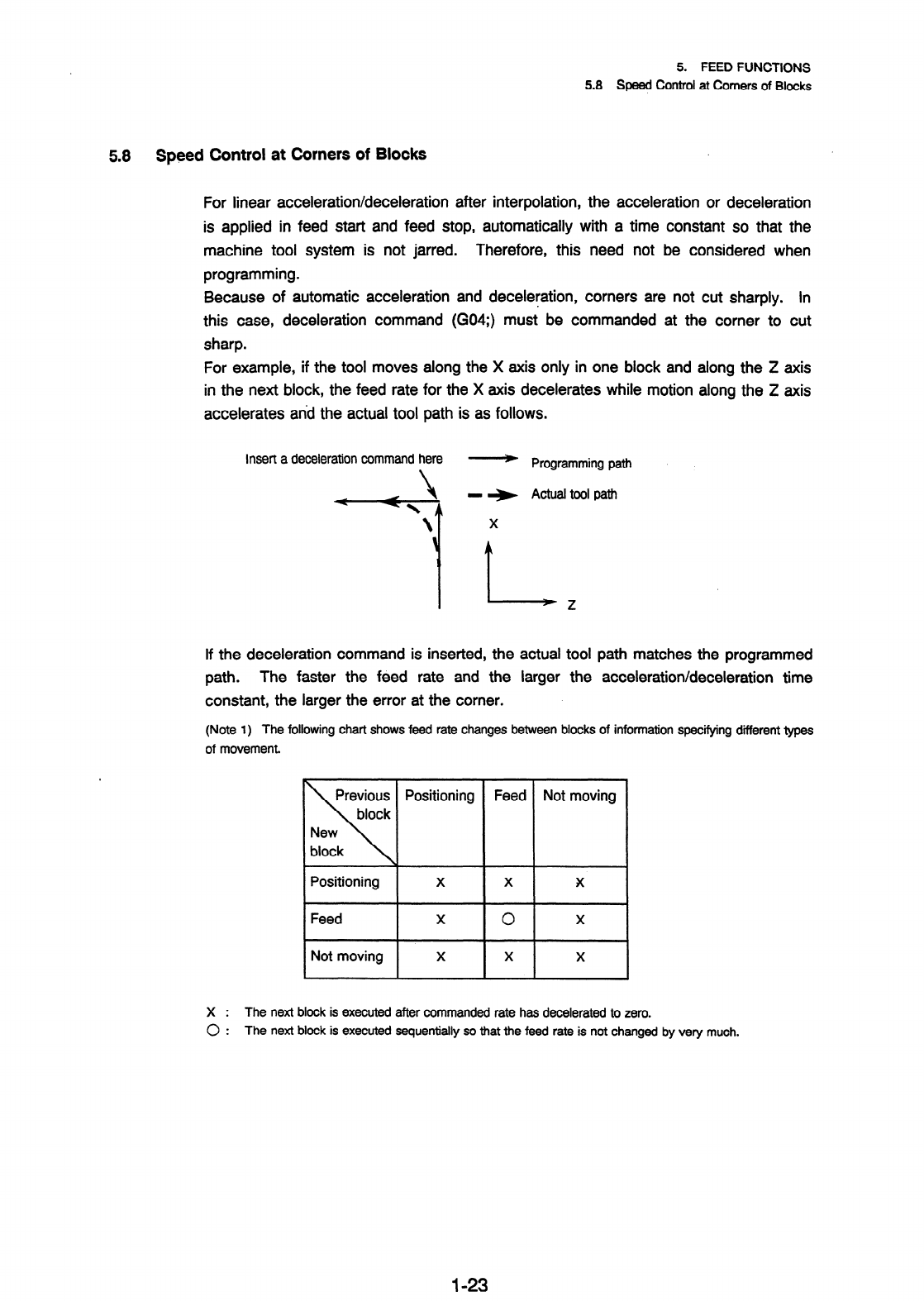

Speed Control at Corners of Blocks

For linear acceleration/deceleration after interpolation, the acceleration or deceleration

is applied in feed start and feed stop, automatically with a time constant so that the

machine tool system is not jarred.

Therefore, this need not be considered when

programming.

Because of automatic acceleration and deceleration, corners are not cut sharply. In

this case, deceleration command (G04;) must be commanded at the corner to cut

sharp.

For example, if the tool moves along the X axis only in one block and along the Z axis

in the next block, the feed rate for the X axis decelerates while motion along the Z axis

accelerates and the actual tool path is as follows.

Insert a deceleration command here

- Programming path

- + Actual tool path

If the deceleration command is inserted, the actual tool path matches the programmed

path

. The faster the feed rate and the larger the acceleration/deceleration time

constant, the larger the error at the corner.

(Note 1) The following chart shows feed rate changes between blocks of information specifying different types

of movement.

Positioning Feed Not moving

Positioning X X X

Feed

I I

Not moving 1 ---x -p---r x

x :

The next block is executed after commanded rate has decelerated to zero.

0 : The next bl

k * IS executed sequentially so that the feed rate is not changed by very much.

l-23
