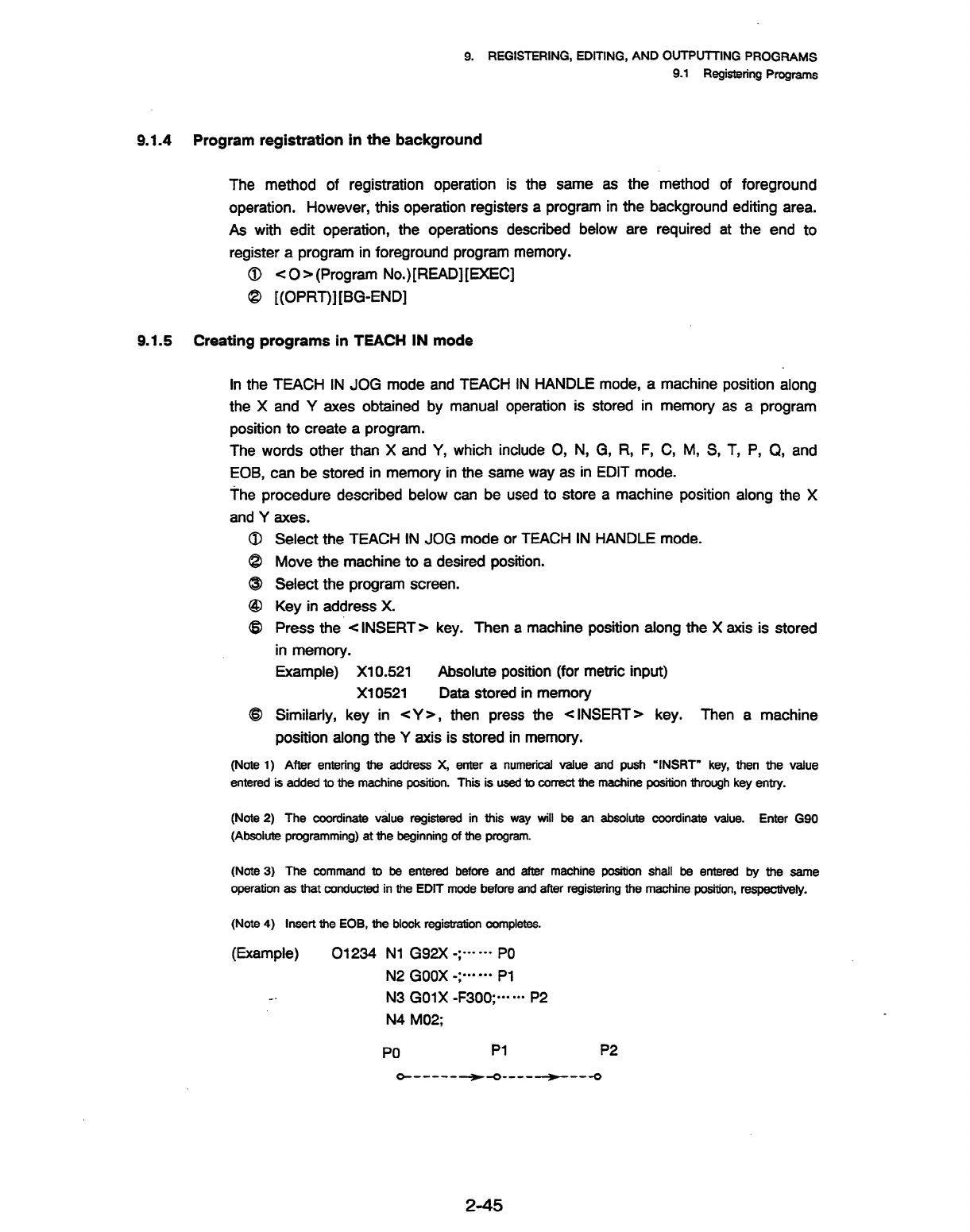

g. REGISTERING, EDITING, AND O~U-I-WG PROGRAMS

9.1 Registering Programs

9.1.4

Program registration in the background

The method of registration operation is the same as the method of foreground

operation. However, this operation registers a program in the background editing area.

As with edit operation, the operations described below are required at the end to

@ < 0) (Program No.)[READ][EXEC]

@ [(OPRT)] [BG-END]

9.1.5 Creating programs in TEACH IN mode

In the TEACH IN JOG mode and TEACH IN HANDLE mode, a machine position along

the X and Y axes obtained by manual operation is stored in memory as a program

position to create a program.

The words other than X and Y, which include 0, N, G, R, F, C, M, S, T, P, Q, and

EOB, can be stored in memory in the same way as in EDIT mode.

ihe procedure described below can be used to store a machine position along the X

and Y axes.

Select the TEACH IN JOG mode or TEACH IN HANDLE mode.

Move the machine to a desired position.

Select the program screen.

Key in address X.

Press the < INSERT) key. Then a machine position aJong the X axis is stored

in memory.

Example) Xl 0.521

Absolute position (for metric input)

Xl 0521

Data stored in memory

Similarly, key in <Y), then press the < INSERT) key. Then a machine

position along the Y axis is stored in memory.

(Note 1) After entering the address X,

enter a numerical value and push

VNSRT” key,

entered is added to the machine position.

This is used to correct the machine

position through

(Note 2) The coordinate i&e registered in this way

(Absolute programming) at the beginning of the program.

(Note 3) The command ‘to be entered before and

after machine position

shall be entered

bythesame

operation as that conducted in the EDIT mode before

and after registering the

machine

position, respectMy.

will be an absolute coordinate value.

then the

key entry.

Enter G90

(Note 4) Insert the EOB, the block registration completes.

(Example)

01234 Nl G92X -;- 0-0 PO

N2 GOOX -;- -0 Pl

N3 GO1 X -F300; l am l a. P2

N4 M02;

PI P2

~---I)-II),~IW-~--~
