Power Mate D and F Motion Controllers Programming manual Page 63

Programming manual

Page of 373

/ 373

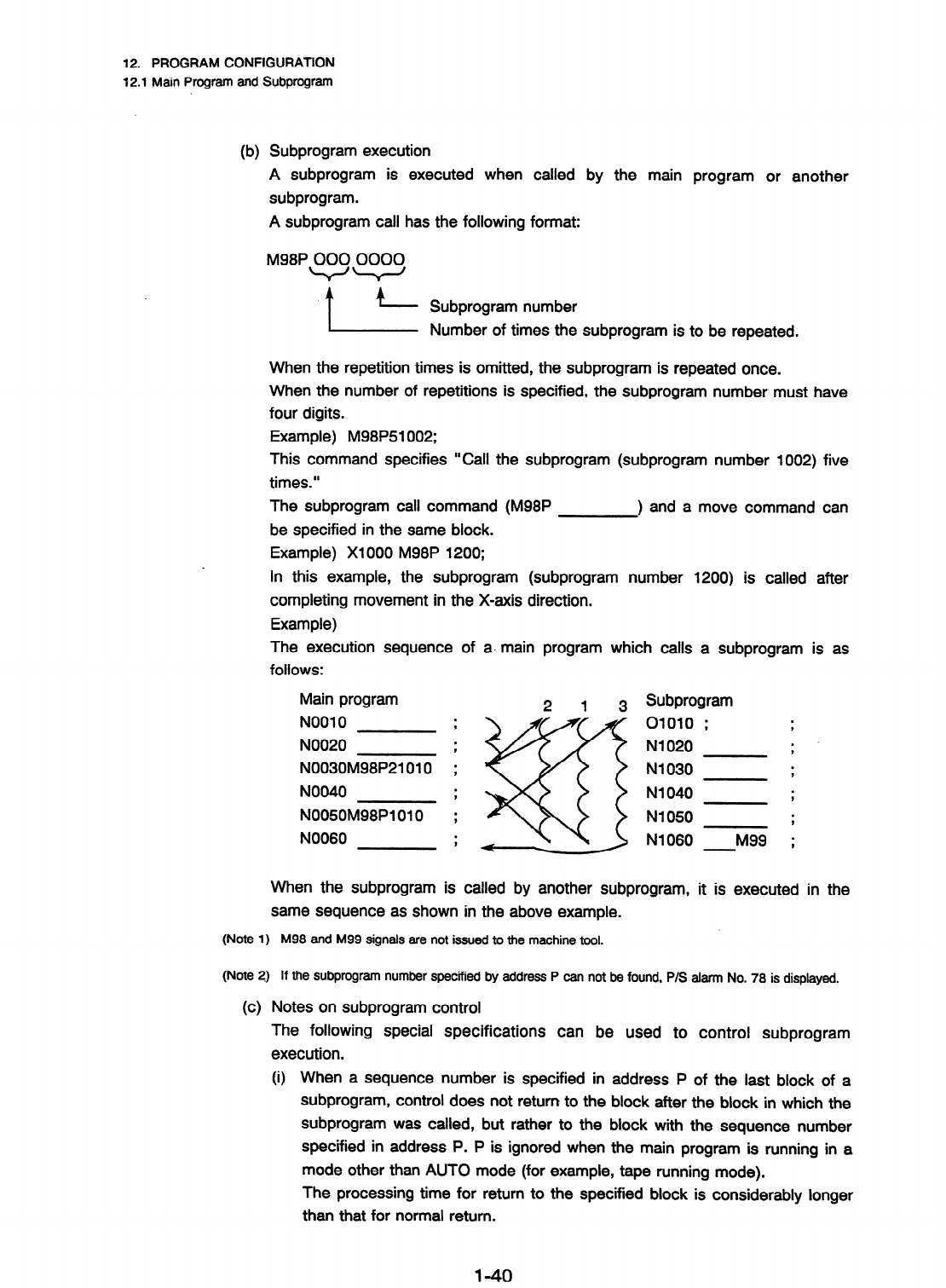

12. PROGRAM CONFIGURATION

12.1 Main Program and Subprogram

(b) Subprogram execution

A subprogram is executed when called by the main program or another

subprogram.

A subprogram call has the following format:

M98P 000 0000

Subprogram number

Number of times the subprogram is to be repeated.

When the repetition times is omitted, the subprogram is repeated once.

When the number of repetitions is specified, the subprogram number must have

four digits.

Example) M98P51002;

This command specifies “Call the subprogram (subprogram number 1002) five

times. “

The subprogram call command (M98P

) and a move command can

be specified in the same block.

Example) Xl 000 M98P 1200;

In this example, the subprogram (subprogram number 1200) is called after

completing movement in the X-axis direction.

Example)

The execution sequence of a- main program which calls a subprogram is as

follows:

Main program

Subprogram

NO010

NO020

N0030M98P21010

NO040

N1030

) } NlO40 ~~

;

N0050M98PlOlO

NO060

N1050

N1060

M99

When the subprogram is called by another subprogram, it is executed in the

same sequence as shown in the above example.

(Note 1) M98 and M99 signals are not issued to the machine tool.

(Note 2) If the subprogram number specified by address P can not be found, P/S alarm No. 78 is displayed.

The following special specifications can be used to control subprogram

execution.

When a sequence number is specified in address P of the last block of a

subprogram, control does not return to the block after the block in which the

subprogram was called, but rather to the block with the sequence number

specified in address P. P is ignored when the main program is running in a

mode other than AUTO mode (for example, tape running mode).

The processing time for return to the specified block is considerably longer

than that for normal return.

l-40
