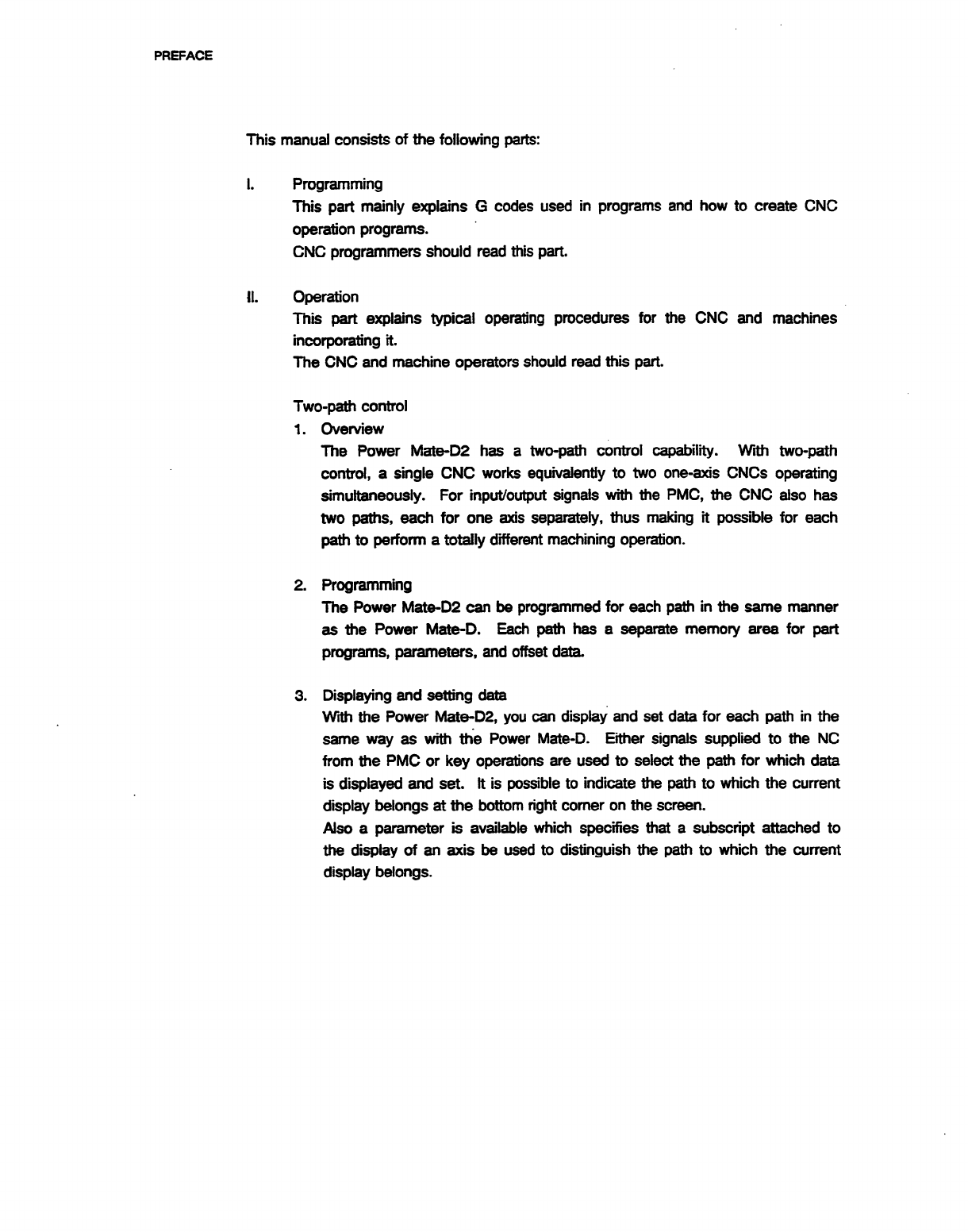

PREFACE

This manual consists of the following parts:

Programming

This part mainly explains G codes used in programs and how to create CNC

operation programs. ’

CNC programmers should read this part.

il . Operation

This part explains typical operating procedures for the CNC and machines

incorporating it.

The CNC and machine operators should read this part.

Two-path control

2 .

Overview

The Power Mate-D2 has a two-path control capability. Wti two-path

control, a single CNC works equivalentiy to two one-axis CNCs operating

simultaneously. For input/output signals with the PMC, the CNC aiso has

two paths, each for one axis separately, thus making it possible for each

path to perform a totally different machining operation.

Programming

The Power Mate-D2 can be programmed for each path in the same manner

as the Power Mate-D. Each path has a separate memory area for part

programs, parameters, and offset data.

Displaying and setting data

Wti the Power Mate-D2, you can display and set data for each path in the

same way as with the Power Mate-D. Either signals supplied to the NC

from the PMC or key operations are used to select the path for which data

is displayed and set. lt is possible to indicate the path to which the current

display belongs at the bottom right comer on the screen.

Also a parameter is available which specifies that a subscript attached to

the display of an axis be used to distinguish the path to which the current

display belongs.
