Power Mate D and F Motion Controllers Programming manual Page 310

Programming manual
20. PMC PROGRAMMER (DPUMDI)
20.6
Error Messag-es (For Mnemonic Ladder Edit)

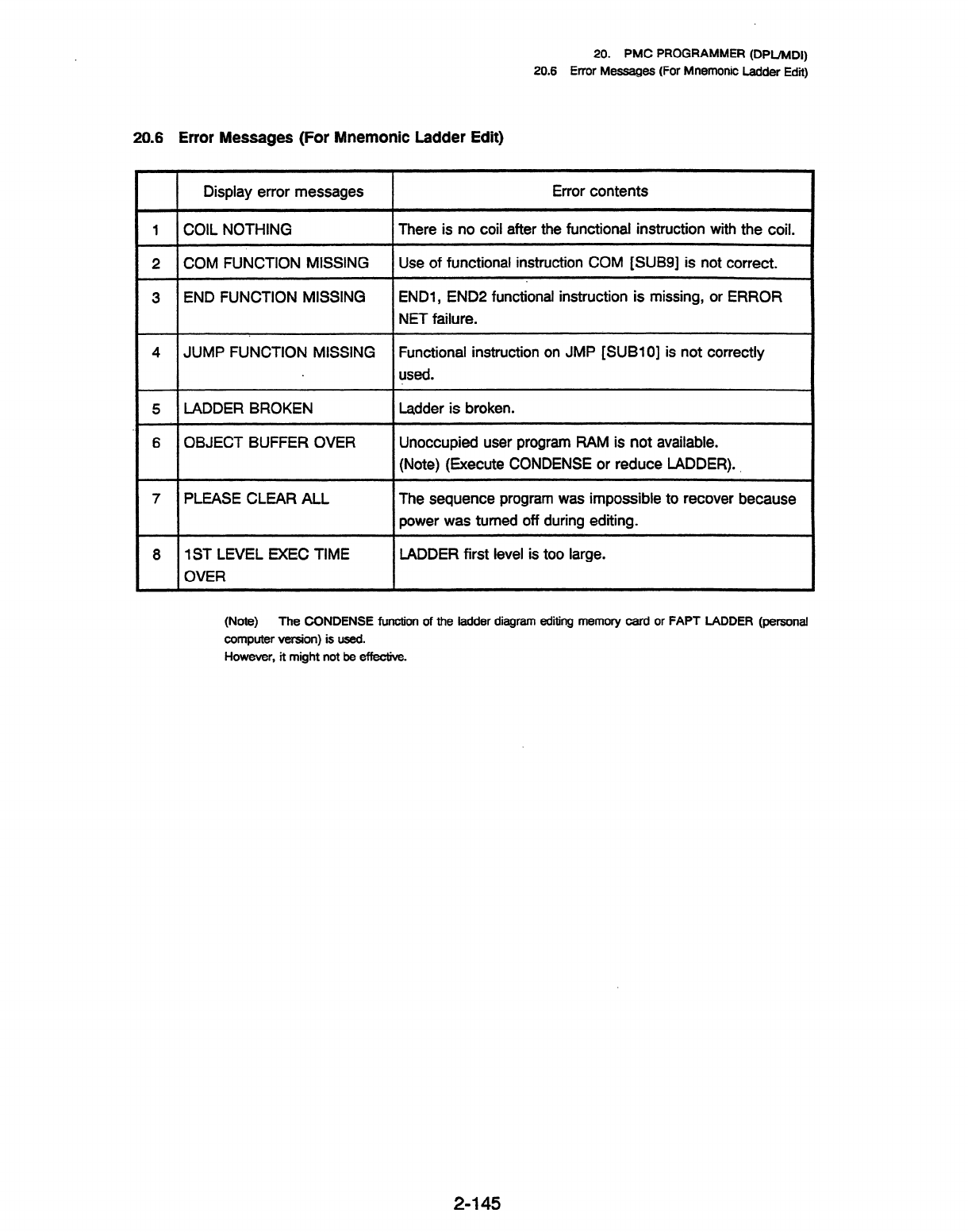

20.6 Error Messages (For Mnemonic Ladder Edit)
Display error messages
Error contents
1 COIL NOTHING
There is no coil after the functional instruction with the coil.
2 COM FUNCTION MISSING
Use of functional instruction COM [SUBS] is not correct.
3 END FUNCTION MISSING
ENDl, END2 functional instruction is missing, or ERROR
NET failure.
4 JUMP FUNCTION MISSING Functional instruction on JMP [SUBlO] is not correctly
.
used.
5 LADDER BROKEN Ladder is broken.
6 OBJECT BUFFER OVER Unoccupied user program RAM is not available.
(Note) (Execute CONDENSE or reduce LADDER). .
7
PLEASE CLEAR ALL The sequence program was impossible to recover because
power was turned off during editing.
8 IST LEVEL EXEC TIME LADDER first level is too large.
OVER
(Note)
The CONDENSE function of the ladder diagram editing memory card or FAPT LADDER (personal
computer version) is used.
However, it might not be effectbe.
2-145
