APPENDIX 8 ~LANATION OF ERMS

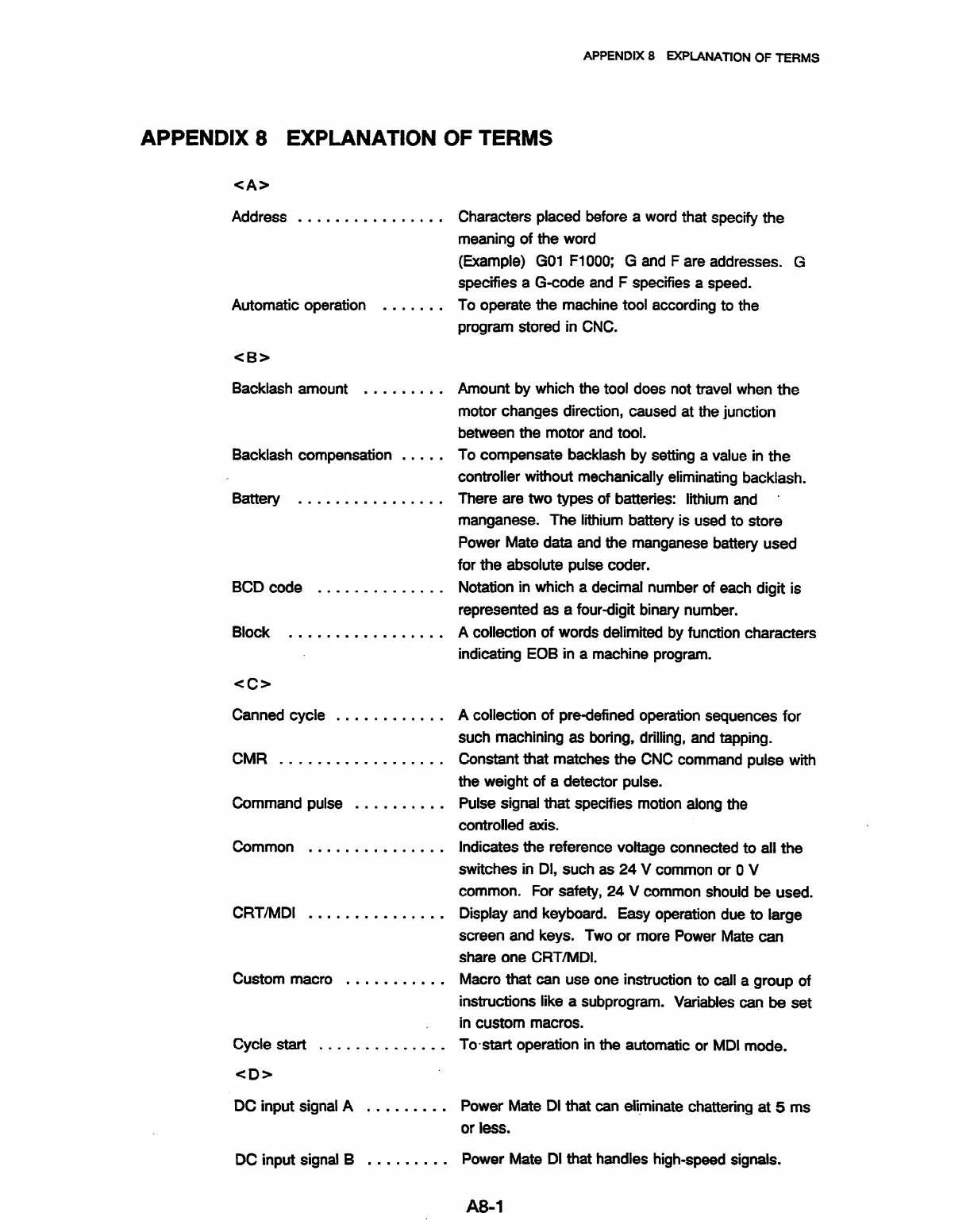

APPENDIX 8 EXPLANATION OF TERMS

Address . . . . . . . . . . . . . . . .

Automatic operation . . . . . . .

Backlash amount . . . . . . . . .

Backlash compensation . . . . .

Battery

BCD code ..............

Block .................

CC>

Canned cycle ............

CMR ..................

Command pulse ..........

Common ...............

CRT/MD1

Custom macro . . . . . . . . . . .

Cycle start . . . . . . . . . . . . . .

CD>

DC input signal A . . . . . . . . .

DC input signal B . . . . . . . . .

Power Mate DI that handles high-speed signals.

Characters placed before a word that specify the

meaning of the word

(Example) GO1 FlOOO; G and F are addresses. G

specifies a G-code and F specifies a speed.

To operate the machine tool according to the

program stored in CNC.

Amount by which the tool does not travel when the

motor changes direction, caused at the junction

between the motor and tool.

To compensate backlash by setting a value in the

controller without mechanically eliminating backlash.

There are two types of batteries: lithium and

manganese. The lithium battery is used to store

Power Mate data and the manganese battery used

for the absolute pulse coder.

Notation in which a decimal number of each digit is

represented as a four-digit binary number.

A collection of words delimited by function characters

indicating EOB in a machine program.

A collection of predefined operation sequences for

such machining as boring, drilling, and tapping.

Constant that matches the CNC command pulse with

the weight of a detector pulse.

Pulse signal that specifies motion along the

controlled axis.

Indicates the reference voltage connected to all the

switches in Dl, such as 24 V common or 0 V

common. For safety, 24 V common should be used.

Display and keyboard. Easy operation due to large

screen and keys. Two or more Power Mate can

share one CRT/MDI.

Macro that can use one instruction to call a group of

instructions like a subprogram. Variables caq be set

in custom macros.

To-start operation in the automatic or MDI mode.

Power Mate DI that can eliminate chattering at 5 ms

or less.
