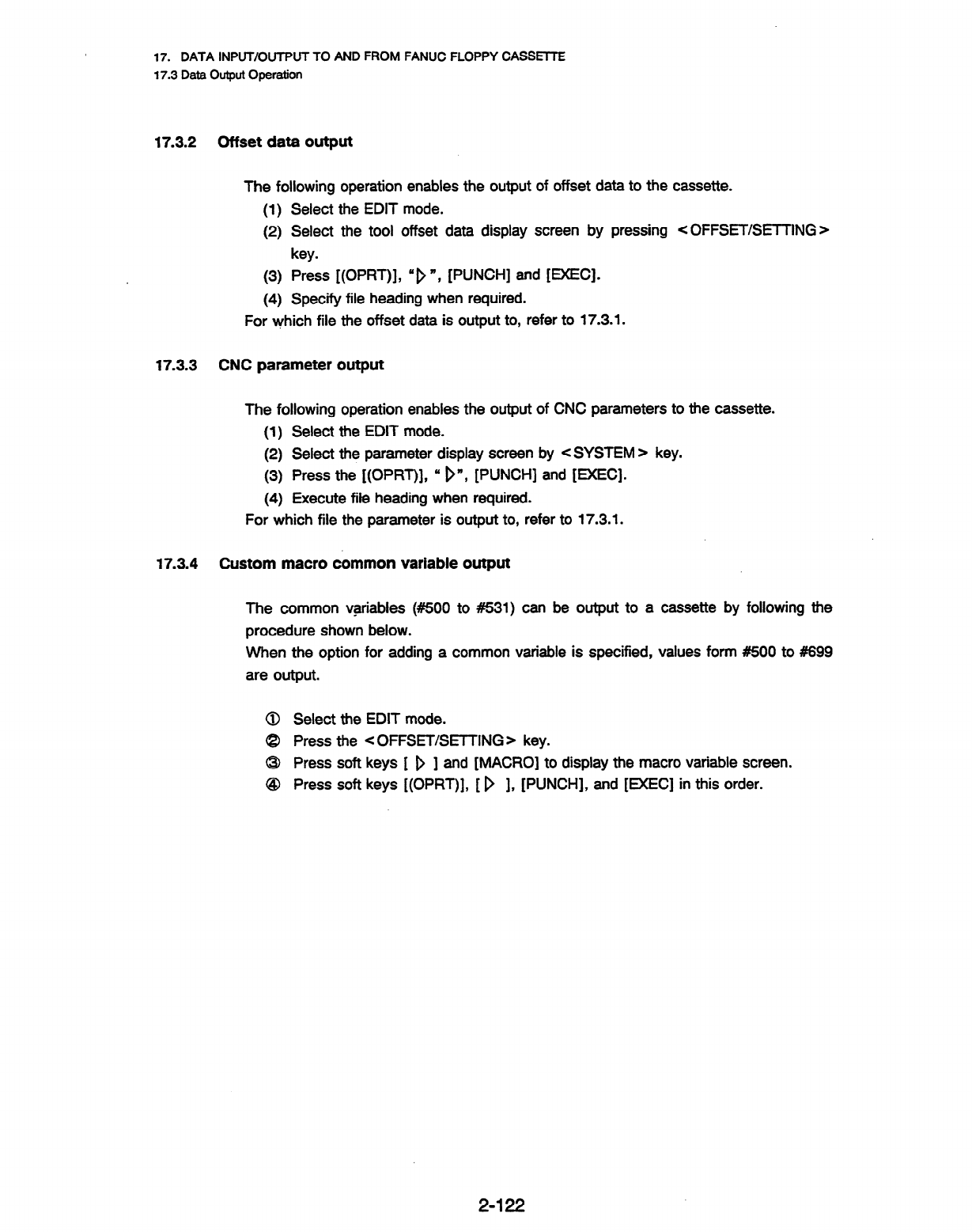

17. DATA INPUT/OUTPUT TO AND FROM FANUC FLOPPY CASSETTE

17.3 Data Output Operation

17.3.2 Offset data output

The following operation enables the output of offset data to the

(1) Select the EDIT mode.

(2) Select the tool offset data display screen by pressing

key

(3) Press [(OPRT)], “D “, [PUNCH] and [EXEC],

(4) Specify file heading when required.

For which file the offset data is output to, refer to 17.3.1.

17.3.3 CNC parameter output

17.3.4

The following operation enables the output of CNC parameters

(1) Select the EDIT mode.

cassette.

< OFFSFT/,CETTlNG )

(2) Select the parameter display screen by c SYSTEM ) key.

(3) Press the [(OPRT)], u D”, [PUNCH] and [EXEC].

(4) Execute fite heading when required.

For which file the parameter is output to, refer to 17.3.1.

to the cassette.

Custom macro common variable output

The common variables (#SO0 to #531) can be output to a cassette by following the

procedure shown below.

When the option

for adding a common variable is specified, values form #SO0 to #699

are output.

0 Select the

@ Press the

@ Press soft

EDIT mode.

< OFFSET/SETTING ) key.

keys [ D ] and [MACRO] to display the macro variable screen.

keys [(OPRT)], [ D ], [PUNCH], and [EXEC] in this order.

2-122
