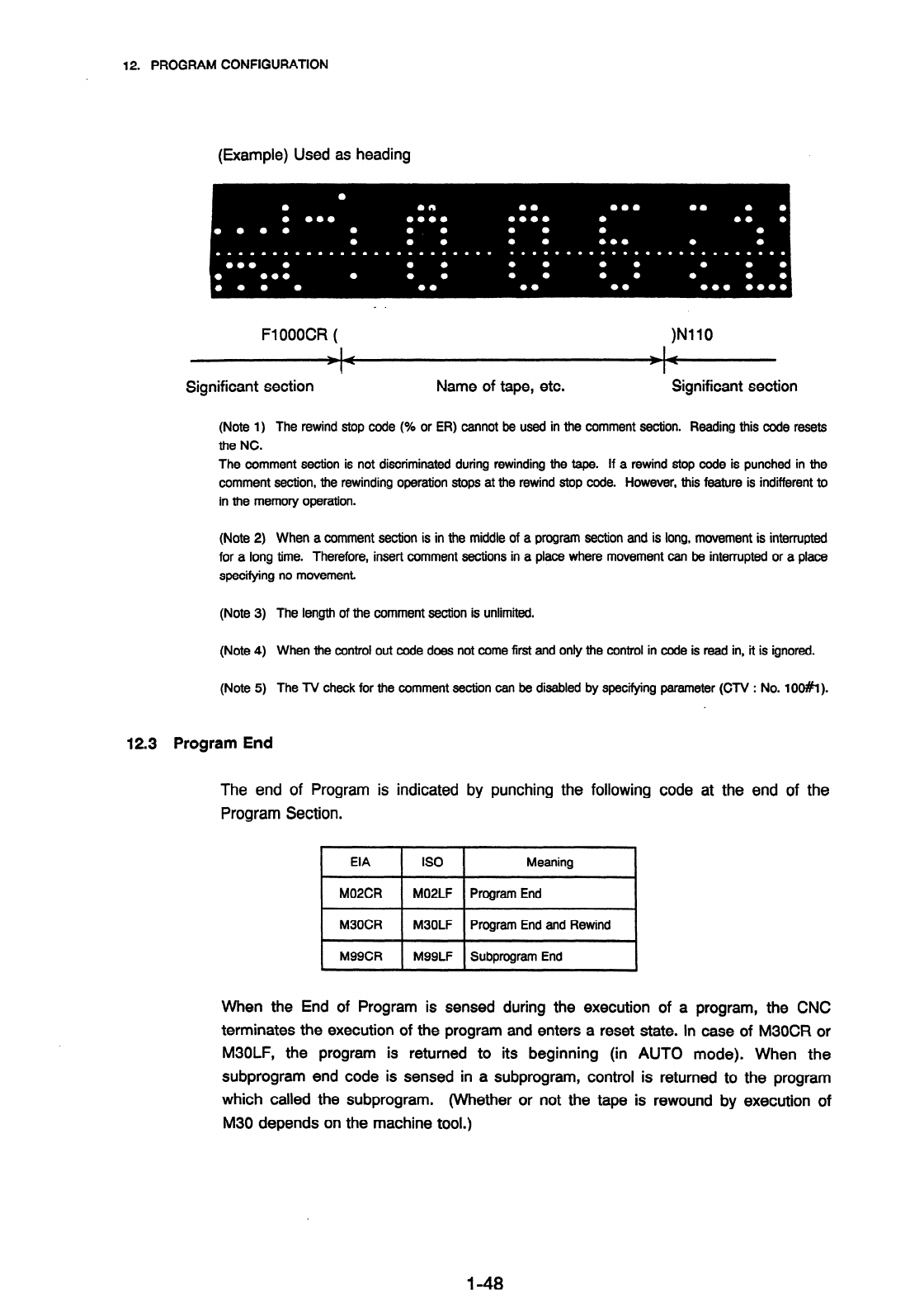

12. PROGRAM CONFIGURATION

(Example) Used as heading

FlOOOCR(

Significant section Name of tape, etc.

)NllO

Significant section

(Note 1) The rewind stop code (% or ER) cannot be used in the comment section. Reading this code resets

the NC.

The comment section is not discriminated during rewinding the tape. If a rewind stop code is punched in the

comment section, the rewinding operation stops at the rewind stop code. However, this feature is indifferent to

in the memory operation.

(Note 2) When a comment section is in the middle of a program section and is long, movement is interrupted

for a long time. Therefore, insert comment sections in a place where movement can be interrupted or a place

specifying no movement

(Note 3) The length of the comment section is unlimited.

(Note 4) When the control out code does not come first and only the control in code is read in, it is ignored.

(Note 5) The TV check for the comment section can be disabled by specifying parameter (CTV : No. lOO#l).

12.3 Program End

The end of Program is indicated by punching the following code at the end of the

Program Section.

EIA

IS0 1

Meaning

M02CR 1 MO2LF 1 Program End

M30CR

M99CR

M30LF Program End and Rewind

M99LF Subprogram End

When the End of Program is sensed during the execution of a program, the CNC

terminates the execution of the program and enters a reset state. In case of MSOCR or

M3OLF, the program is returned to its beginning (in AUTO mode). When the

subprogram end code is sensed in a subprogram, control is returned to the program

which called the subprogram. (Whether or not the tape is rewound by execution of

M30 depends on the machine tool.)
