Power Mate D and F Motion Controllers Programming manual Page 232

Programming manual

Page of 373

/ 373

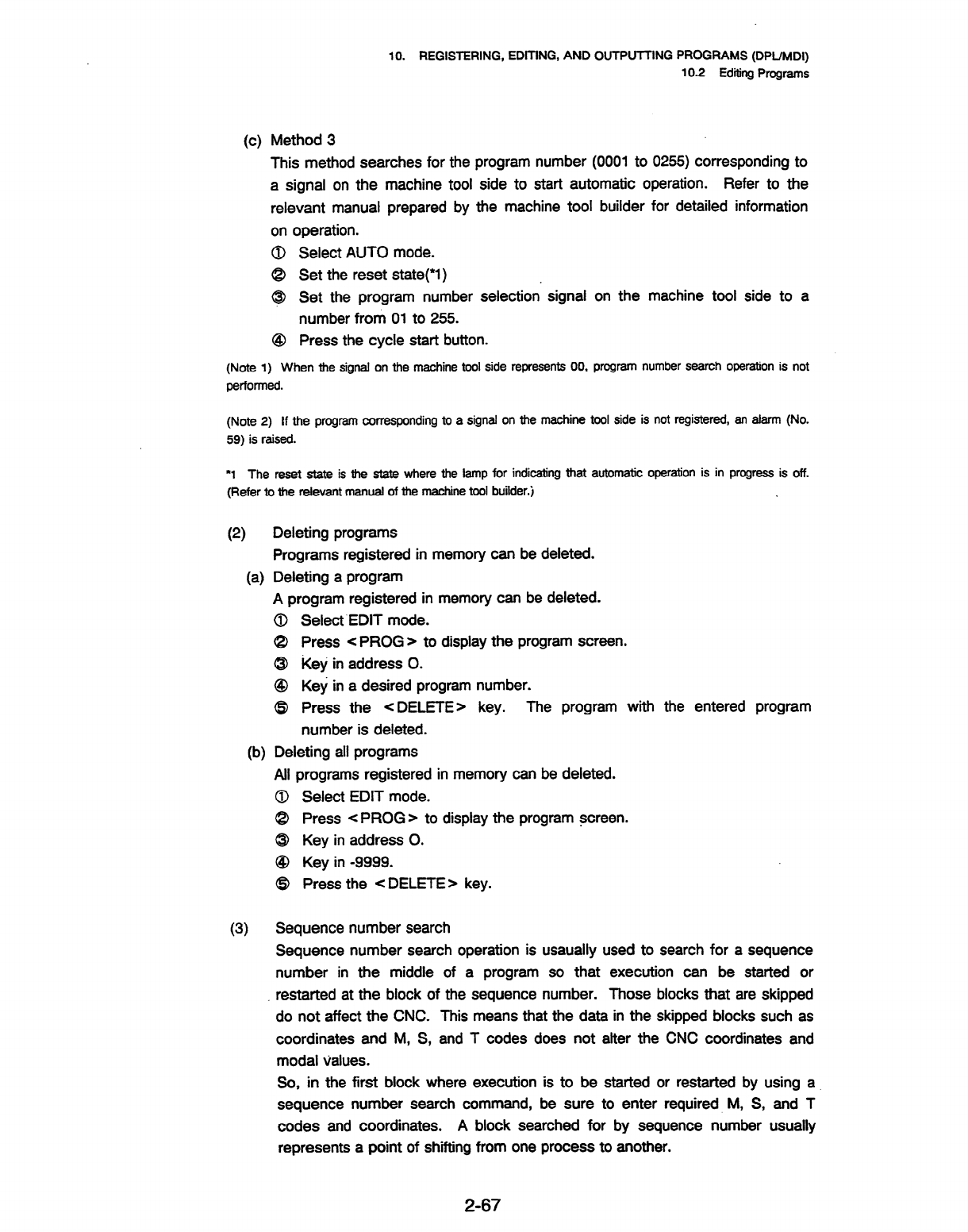

lo. REGISTERING, EDITING, AND OUTPU-IVNG PROGRAMS (DPUMDI)

10.2 Editing Programs

Method 3

This method searches for the program number (0001 to 0255) corresponding to

a signal on the machine tool side to start automatic operation.

Refer to the

relevant manual prepared by the machine tool builder for detailed information

on operation.

Select AUTO mode.

Set the reset state(*l)

Set the program number selection signal on the machine tool side to a

number from 01 to 255.

Press the cycle start button.

(Note 1) When

performed.

the

signal on the machine

tool side

represents

00,

(Note

2) If the

59) is

raised.

program

corresponding

to a

signal on the

machine tool side is not

registered, an alarm (No.

“1 The reset state is the state

where the lamp

for indicating

(Refer to the relevant manual of

the machine tool

builder. j

number

automatic

operation

is not

operation

is in

PW==

(2)

Deleting programs

Programs registered in memory can be deleted.

(a) Deleting a program

A program registered in memory can be deleted.

0 Select’EDlT mode.

@ Press c PROG ) to display the program screen.

0 Key in address 0.

@ Key in a desired program number.

@ Press the <DELETE> key. The program with the entered

number is deleted.

(b) Deleting all programs

All programs registered in memory can be deleted.

@ Select EDIT mode.

@ Press < PROG) to display the program screen.

@ Key in address 0.

@ Key in -9999.

@ Press the < DELETE> key.

is off.

program

(3)

Sequence number search

Sequence number search operation is usauaily used to search for a sequence

number in the middle of a program so that execution can be started or

restarted at the block of the sequence number. Those blocks that are skipped

do not affect the CNC. This means that the data in the skipped blocks such as

coordinates and M, S, and T codes does not alter the CNC coordinates and

modal values.

So, in the first block where execution is to be started or restarted by using a .

sequence number search command, be sure to enter required M, S, and T

codes and coordinates.

A block searched for by sequence number usually

represents a point of shifting from one process to another.

2-67
