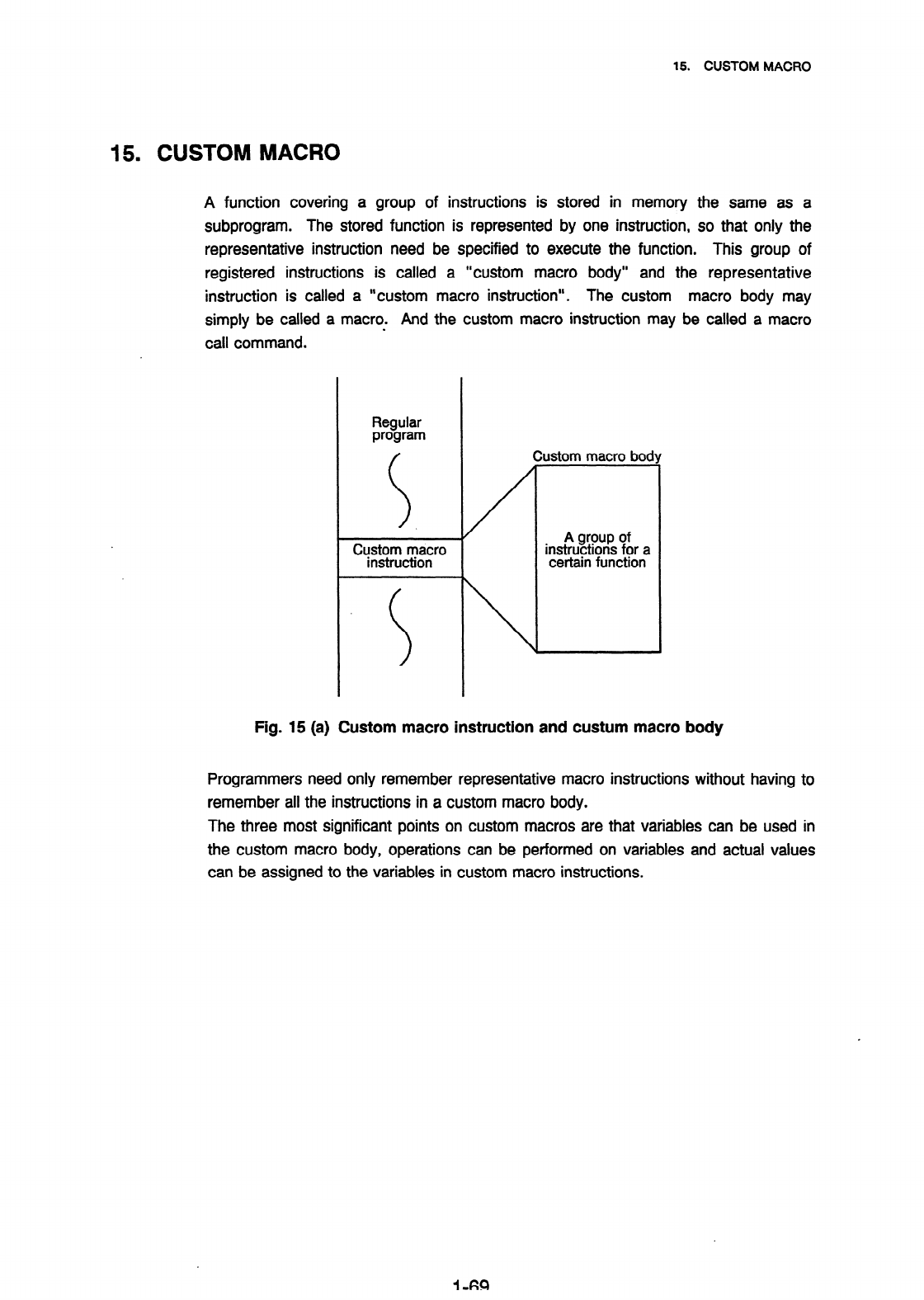

15. CUSTOM MACRO

A function covering a group of instructions is stored in memory the same as a

subprogram.

The stored function is represented by one instruction, so that only the

representative instruction need be specified to execute the function. This group of

registered instructions is called a “custom macro body” and the representative

instruction is called a “custom macro instruction”. The custom macro body may

simply be called a macro.

And the custom macro instruction may be called a macro

call command.

Regular

program

Custom macro

instruction

. i

Custom macro body

A group of

instructions for a

certain function

Fig. 15 (a) Custom macro instruction and custum macro body

Programmers need only remember representative macro instructions without having to

remember all the instructions in a custom macro body.

The three most significant points on custom macros are that variables can be used in

the custom macro body, operations can be performed on variables and actual values

can be assigned to the variables in custom macro instructions.
