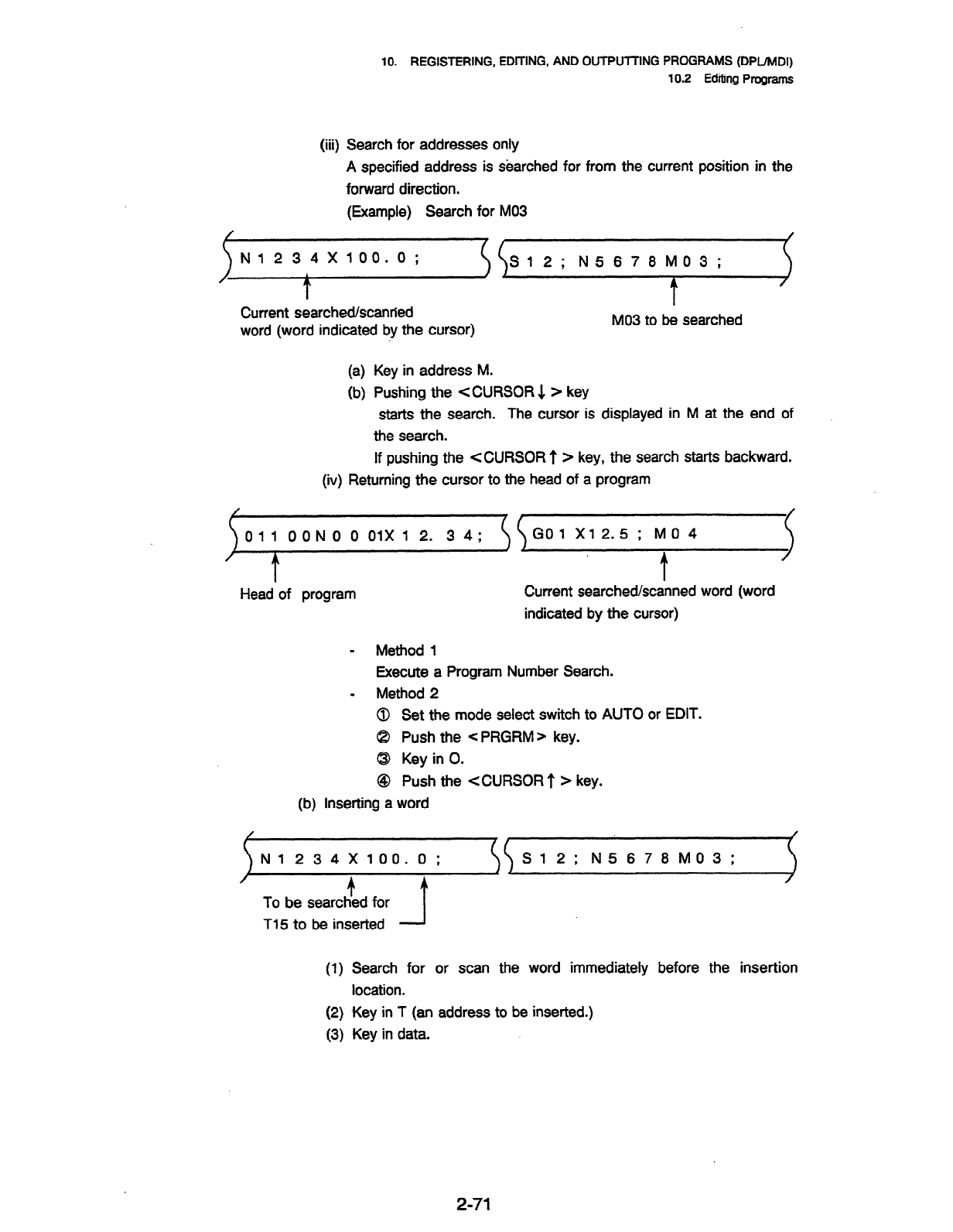

lo. REGISTERING, EDlTING, AND OUTPUlTING PROGRAMS (DPUMDI)

10.2 Editing Programs

(iii)

Search for addresses only

A specified address is &arched for from the current position in the

forward direction.

(Example) Search for MO3

N1234X100.0;

N5678M03;

Current searched/scanned

word (word indicated by the cursor)

MO3 to be searched

(a) Key in address M.

(b) Pushing the <CURSOR $ > key

starts the search. The cursor is displayed in M at the end of

the search.

If pushing the <CURSOR 7 > key, the search starts backward.

(iv) Returning the cursor to the head of a program

011OONOO01X12. 34;

Head of program

- Method 1

GO1 X12.5; MO4

Current searched/scanned word (word

indicated by the cursor)

Execute a Program Number Search.

- Method 2

0 Set the mode select switch to AUTO or EDIT.

@ Push the < PRGRM > key.

B Key in 0.

@ Push the <CURSOR 7 > key.

(b) Inserting a word

N1234XlOO.O;

To be searched for

T15 to be inserted

N5678M03;

(1) Search for or scan the word immediately before the insertion

location.

(2) .Key in T (an address to be inserted.)

(3) Key in data.

2-71
