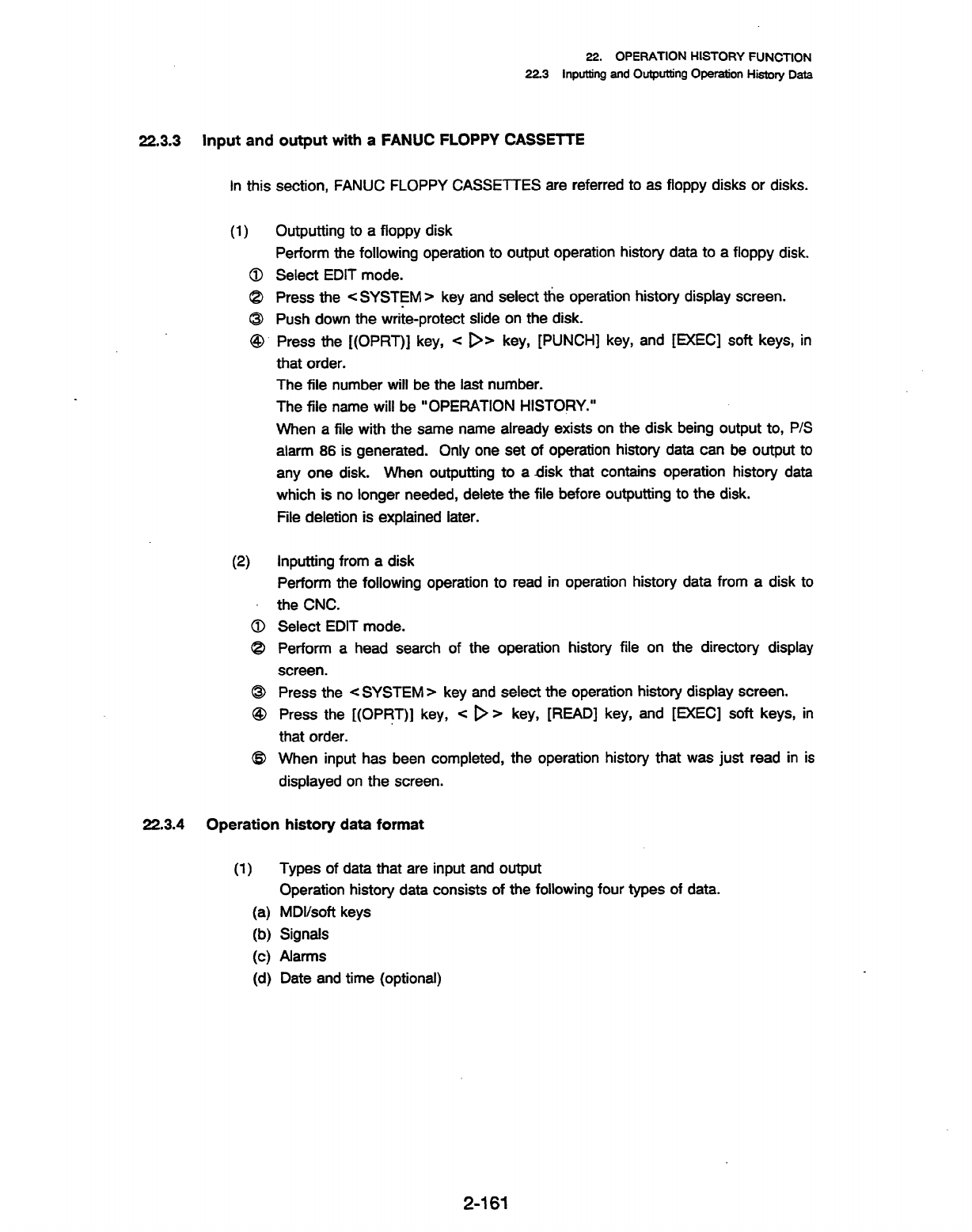

22. OPERATION HISTORY FUNCTION

22.3 inputting and Outputting Operation History Data

22.3.3 Input and output with a FANUC FLOPPY CASSETTE

In this section, FANUC FLOPPY CASSETTES are referred to as floppy disks or disks.

(1)

(2)

Outputting to a floppy disk

Perform the following operation to output operation history data to a floppy disk.

Select EDIT mode.

Press the < SYSTEM > key and select the operation history display screen.

Push down the write-protect slide on the disk.

Press the [(OPRT)] key, < D> key, [PUNCH] key, and [EXEC] soft keys, in

that order.

The file number will be the last number.

The file name will be “OPERATION HISTORY.”

When a file with the same name already exists on the disk being output to, P/S

alarm 86 is generated. Only one set of operation history data can be output to

any one disk.

When outputting to a disk that contains operation history data

which is no longer needed, delete the file before outputting to the disk.

File deletion is explained later.

Inputting from a disk

Perform the following operation to read in

the CNC.

Select EDIT mode.

Perform a head search of the operation

screen.

operation history data from a disk to

history file on the directory display

Press the < SYSTEM > key and select the operation history display screen.

Press the [(OPRT)] key, c D) key, [READ] key, and [BEC] soft keys, in

that order. ’

When input has been completed, the operation history that was just read in is

displayed on the screen.

22.3.4 Operation history data format

(1)

( )

(b)

(c)

(d)

Types of data that are input and output

Operation history data consists of the following four types of data.

MD&oft keys

Signals

Alarms

Date and time (optional)

2-161
