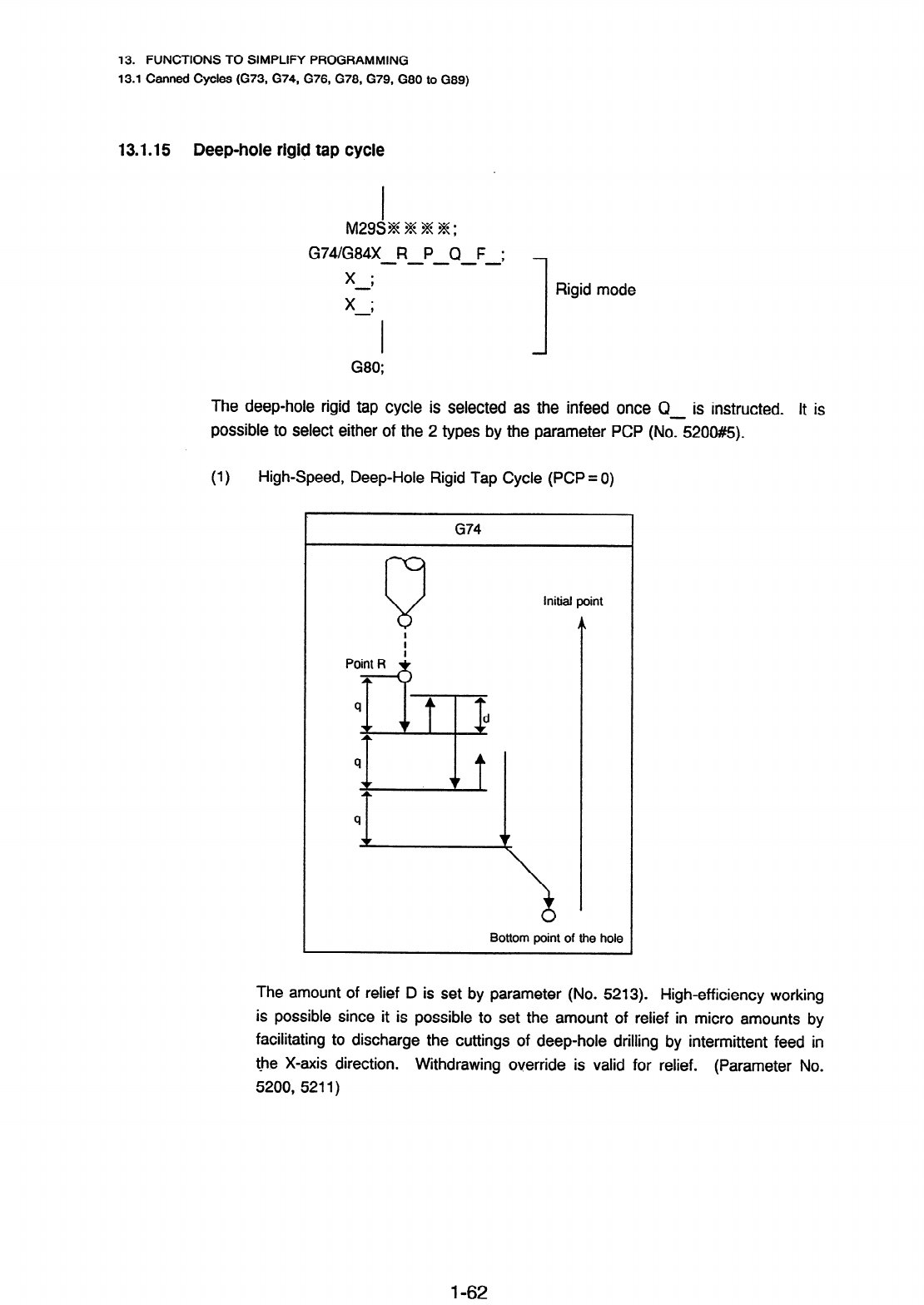

13. FUNCTIONS TO SIMPLIFY PROGRAMMING

13.1 Canned Cycles (G73, G74, G76, G78, G79, G80 to G89)

13.1.15

Deep-hole rigid tap cycle

G74/G84X R P Q F ;

X_; - - - - -

;

Rigid mode

The deep-hole rigid tap cycle is selected as the infeed once Q

is instructed. It is

possible to select either of the 2 types by the parameter PCP (No5200#5).

(1)

High-Speed, Deep-Hole Rigid Tap Cycle (PCP = 0)

G74

Initial point

Bottom point of the hole

The amount of relief D is set by parameter (No. 5213). High-efficiency working

is possible since it is possible to set the amount of relief in micro amounts by

facilitating to discharge the cuttings of deep-hole drilling by intermittent feed in

the X-axis direction.

Withdrawing override is valid for relief. (Parameter No.

5200, 5211)

l-62
