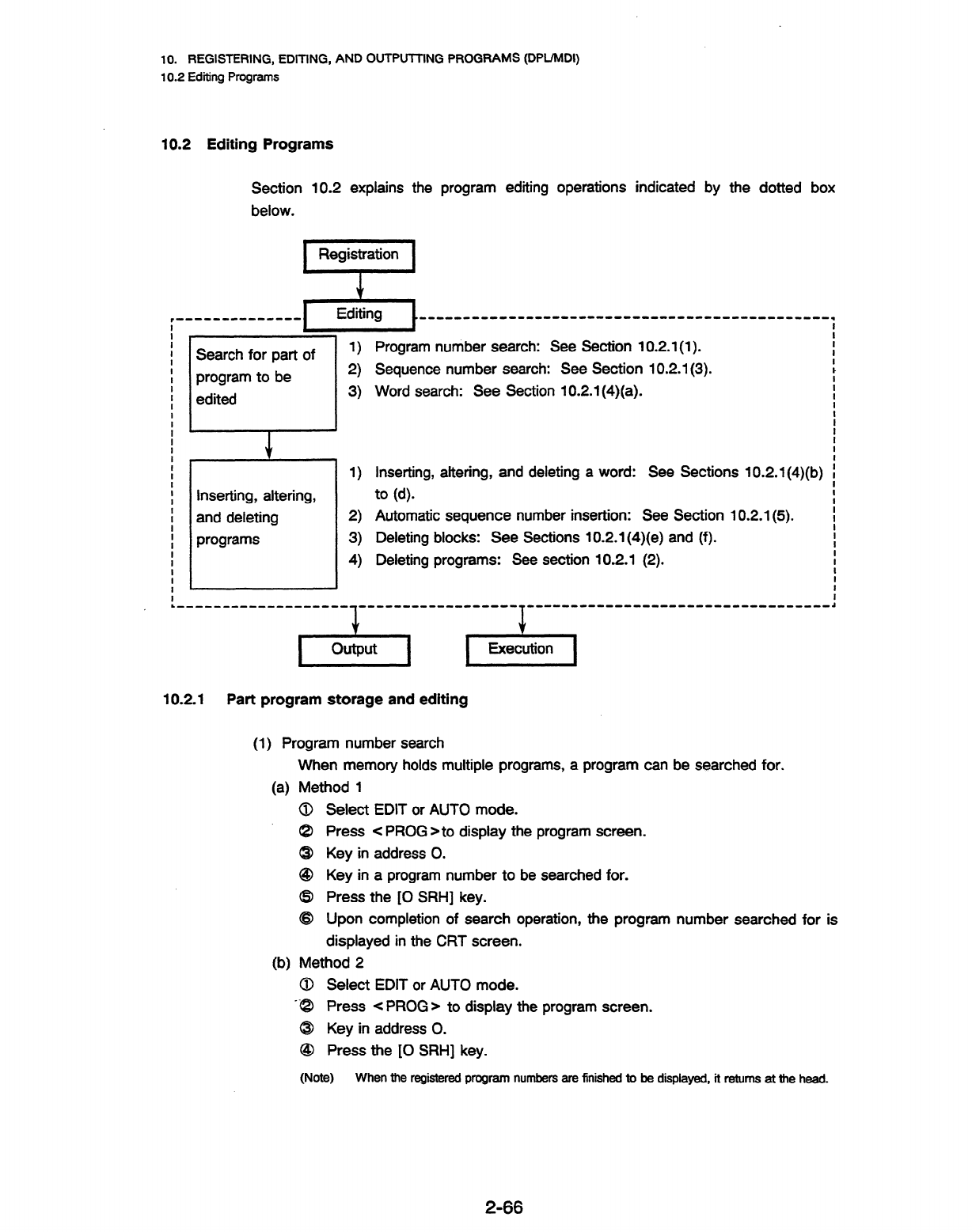

10. REGISTERING, EDITING, AND OUTPU-fllNG PROGRAMS (DPVMDI)

10.2 Editing Programs

Section 10.2 explains the program editing operations indicated by the dotted box

below.

Registration

~------LIIIIII-

Editing ~~~~~~~~~LII~~~~~~~--~~~~~~~~~~~~~~~~~~~~~~~~~~

Inserting, altering,

and deleting

programs

Program number search: See Section 10.2.1(l).

Sequence number search: See Section 10.2.1(3).

Word search: See Section 10.2.1(4)(a).

inserting, altering, and deleting a word: See Sections 10.2.1(4)(b) I

to (d).

Automatic sequence number insertion: See Section l&2.1(5).

Deleting blocks: See Sections 10.2.1(4)(e) and (f).

Deleting programs: See section 10.2.1 (2).

10.2.1 Part program storage and editing

(1) Program number search

When memory holds multiple programs, a program can be searched for.

(a) Method 1

@ Select EDIT or AUTO mode.

’ @ Press < PROG > to display the program screen.

@ Key in address 0.

@ Key in a program number to be searched for.

@ Press the [0 SRH] key.

6) Upon completion of search operation, the program number searched for is

displayed in the CRT screen.

(b) Method 2

0 Select EDIT or AUTO mode.

-%4 Press < PROG > to display the program screen.

@ Key in address 0.

@ Press the [0 SRH] key.

(Note) When the registered program numbers are finished to be displayed, it returns at the head.

2-66
