10. REGISTERING, EDITING, AND OUTPUTTING PROGRAMS (DPVMDI)

10.2 Editing Programs

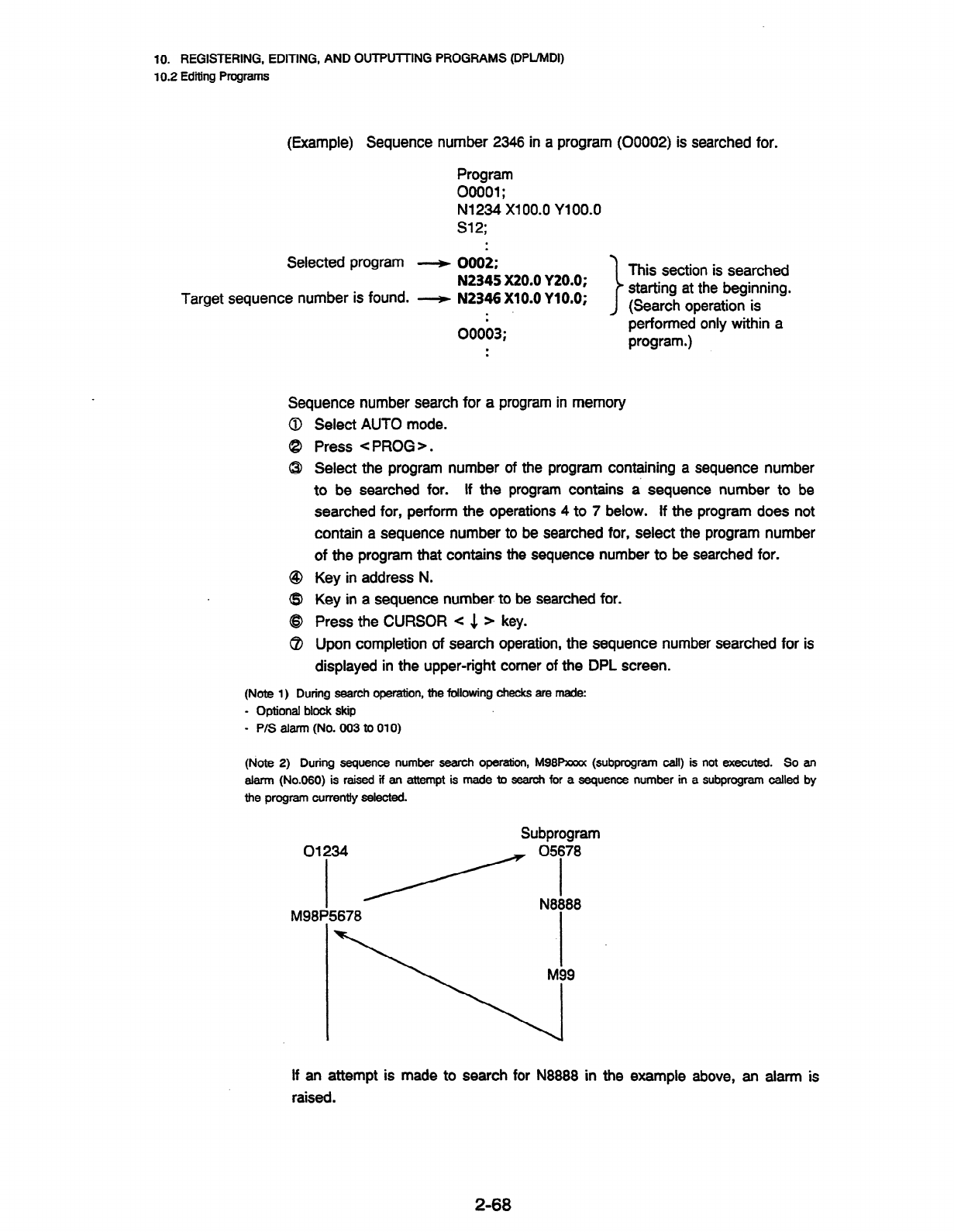

(Example) Sequence number 2346 in a program (00002) is searched for.

Program

00001;

N1234 X100.0 Y100.0

s12;

Selected program - 0002;

N2345 X20.0 Y20.0;

Target sequence number is found. - N2346 X10.0 Y10.0;

00003;

This section is searched

starting at the beginning.

(Search operation is

performed only within a

program.)

Sequence number search for a program in memory

Select AUTO mode.

Press < PROG > .

Select the program number of the program containing a sequence number

to be searched for.

If the program contains a sequence number to be

searched for, perform the operations 4 to 7 below.

If the program does not

contain a sequence number to be searched for, select the program number

of the program that contains the sequence number to be searched for.

Key in address N.

Key in a sequence number to be searched for.

Press the CURSOR < 4 ) key.

Upon completion of search operation, the sequence number searched for is

displayed in the upper-right comer of the DPL screen.

(Note 1) During search operation, the following checks are made:

- Optional block skip

- P/S aIarrn (No. 003 to 010)

(Note 2) During sequence number search operation, M98hoooc (subprogram call) is not executed. So an

alarm (No.060) is raised if an attempt is made to search for a sequence number in a subprogram called by

the program currently selected.

Subprogram

M98P5678

If an attempt is made to search for N8888 in the example above, an alarm is

raised.

2-68
