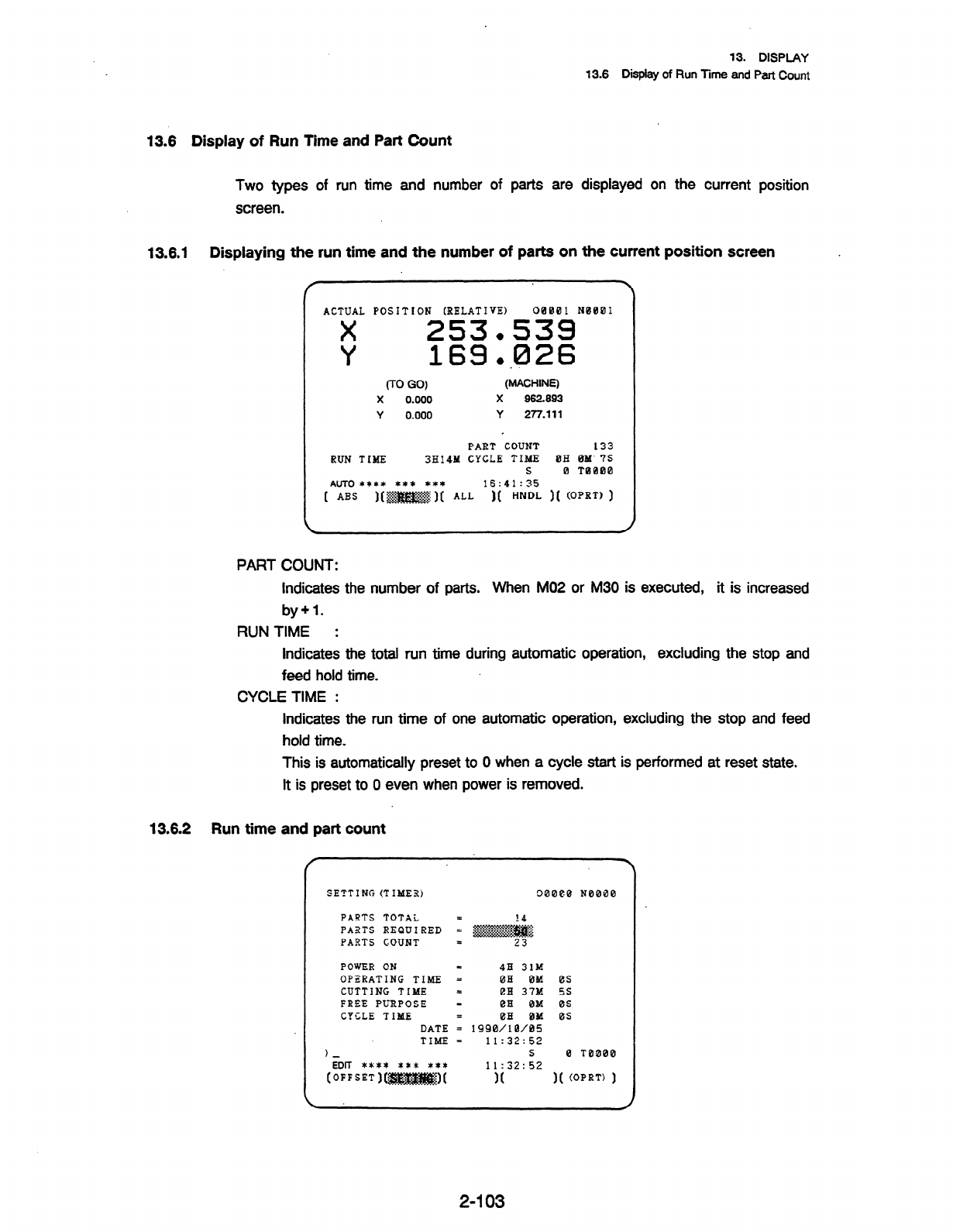

13. DISPLAY

13.6 Display of Run Time and Part Count

Two types of run time and number of parts are displayed on the current position

screen.

13.6.1 Displaying the run time and the number of parts on the current position screen

ACTUAL POSITION (PELATIVE)

00001 N0001

253.539

169.826

. .

0-0 GOI

(MACHINE)

0.000

X 962.093

0.000

Y 277.111

PART COUNT

L33

RUN TIME

3H14Y CYCLE TIME

8H 6M'?S

S 0 T0000

AUTO ***Jr *tss t*S

16:41:35

( ABS )($$#$@@j)( ALL )( HNDL )( (OPRT) )

PART COUNT:

Indicates the number of parts. When MO2 or M30 is executed, it is increased

by+l.

RUN TIME :

Indicates the total run time during automatic operation, excluding the stop and

feed hold time.

CYCLE TIME :

Indicates the run time of one automatic operation, excluding the stop and feed

hold time.

This is automatically preset to 0 when a cycle start is performed at reset state.

It is preset to 0 even when power is removed.

13.6.2 Run time and part count

SETTING (TIME3i

O00C0 NOOOO

PARTS TOTAL

.,.... . . .

PA3TS REQUIRED = ~'=;;.'.'&$i

:::.~$$.J$q$p:::::.:

PARTS COUNT

POWER ON

OPERATING TIME

CUTTING TIME

FREE PVRPOSE

CYCLE TIME

DATE

TIME

EDIT t*);tS ~rl:(c **x

3 4H 31M

QH 0M es

0H 37M 5s

0H OM es

0H 0M 0s

= 1990/10/05

11:32:52

S 0 T0000

11:32:52

(~FFsET)[~)(

-... . . . . . . . ..e

)(

)( !OPBT) )

2-l 03
