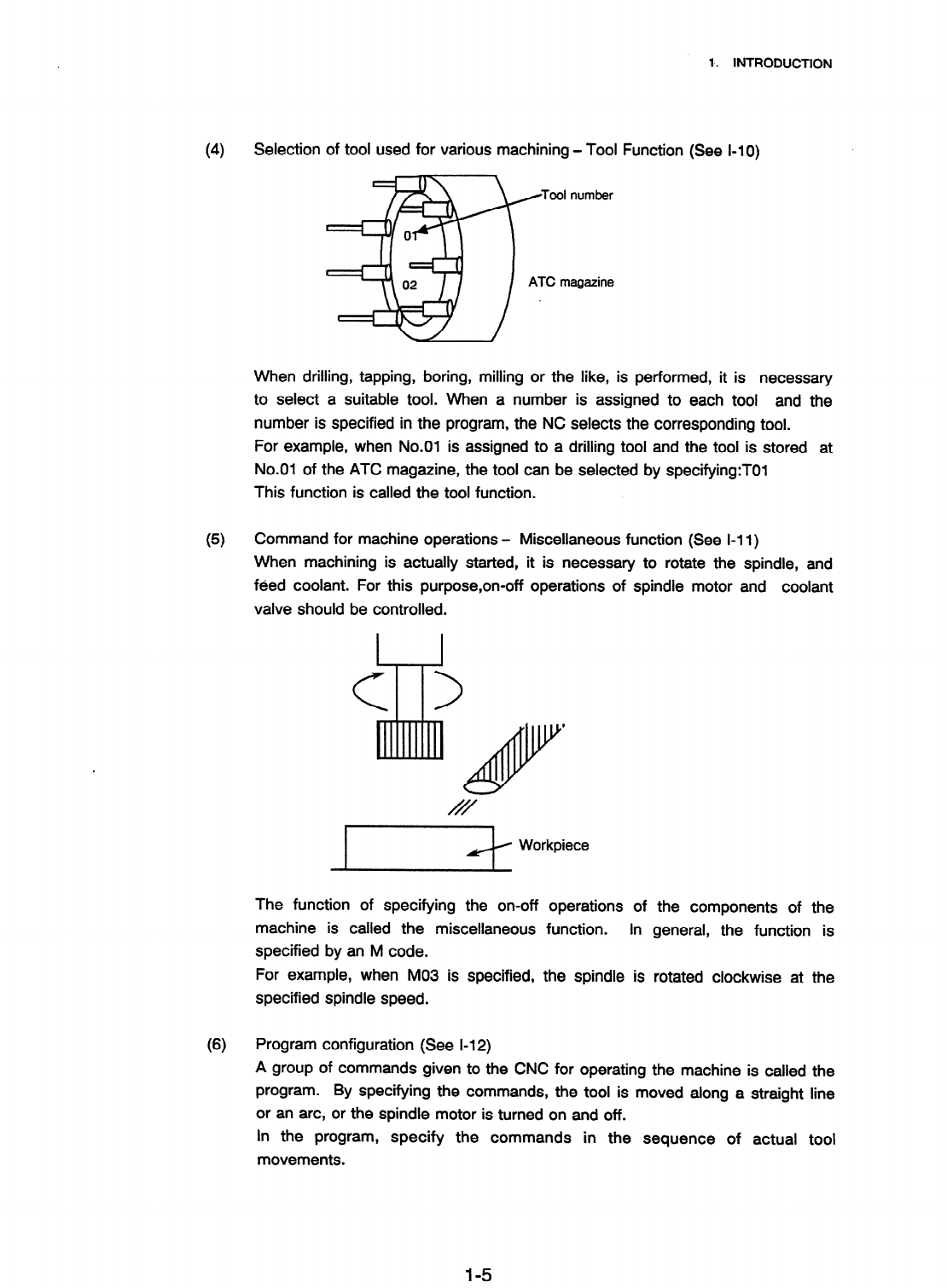

1,. INTRODUCTION

Selection of tool used for various machining - Tool Function (See i-1 0)

/Tool number

ATC magazine

When drilling, tapping, boring, milling or the like, is performed, it is necessary

to select a suitable tool. When a number is assigned to each tool and the

number is specified in the program, the NC selects the corresponding tool.

For example, when No.01 is assigned to a drilling tool and the tool is stored at

No.01 of the ATC magazine, the tool can be selected by specifying:TOI

This function is called the tool function.

(5)

Command for machine operations -

Miscellaneous function (See I-1 1)

When machining is actually started, it is necessary to rotate the spindle, and

feed coolant. For this purpose,on-off operations of spindle motor and coolant

valve should be controlled.

The function of specifying the on-off operations of the components of the

machine is called the miscellaneous function.

In general, the function is

specified by an M code.

For example, when MO3 is specified, the spindle is rotated clockwise at the

specified spindle speed.

(6)

Program configuration (See l-1 2)

A group of commands given to the CNC for operating the machine is called the

program.

By specifying the commands, the tool is moved along a straight line

or an arc, or the spindle motor is turned on and off.

In the program, specify the commands in the sequence of actual tool

movements.

1-5
