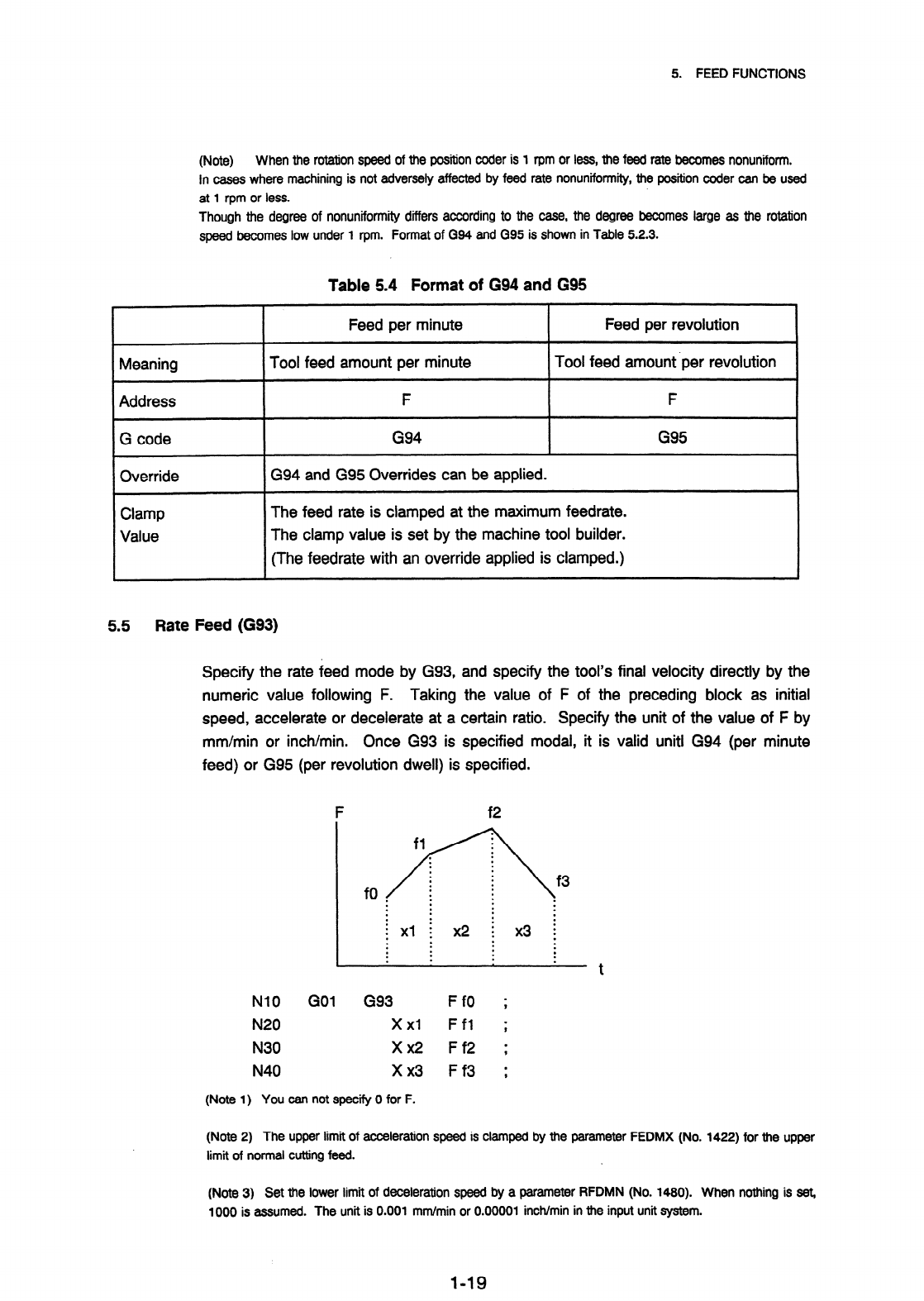

5. FEED FUNCTIONS

(Note)

When the rotation speed of the position coder is 1 rpm or less, the feed rate becomes nonuniform.

ln cases where machining is not adversely affected by feed rate nonuniformity, the position coder can be used

at 1 rpm or less.

Though the degree of nonuniformity differs according to the case, the degree becomes large as the rotation

speed becomes low under 1 rpm. Format of G94 and G95 is shown in Table 5.2.3.

Meaning

Address

G code

Override

Clamp

Value

Table 5.4 Format of G94 and G95

Feed per minute

Feed per revolution

Tool feed amount per minute

Tool feed amount per revolution

G94 G95

G94 and G95 Overrides can be applied.

The feed rate is clamped at the maximum feedrate.

The clamp value is set by the machine tool builder.

(The feedrate with an override applied is clamped.)

5.5 Rate Feed (G93)

Specify the rate feed mode by G93,

numeric value following F. Taking

speed, accelerate or decelerate at a

mm/min or inch/min. Once G93 is

and specify the tool’s final velocity directly by the

the value of F of the preceding block as initial

certain ratio. Specify the unit of the value of F by

specified modal, it is valid unit1 G94 (per minute

feed) or G95 (per revolution dwell) is specified.

F f2

fO 5,

i xl i x2 ; x3 ;

NlO

GO1

G93 FfO ;

N20

x xl Ffl ;

N30

x x2

Ff2 ;

N40

x x3

Ff3 ;

(Note 1) You can not specw 0 for F.

(Note 2) The upper limit of acceleration speed is clamped by the parameter FEDMX (No. 1422) for the upper

limit of normal cutting feed.

(Note 3) Set the lower limit of deceleration speed by a parameter RFDMN (No. 1480). When nothing is set,

1000 is assumed. The unit is 0.001 mm/min or 0.00001 inch/min in the input unit system.

l-19
