Power Mate D and F Motion Controllers Programming manual Page 35

Programming manual

Page of 373

/ 373

INTERPOLATION FUNCTIONS

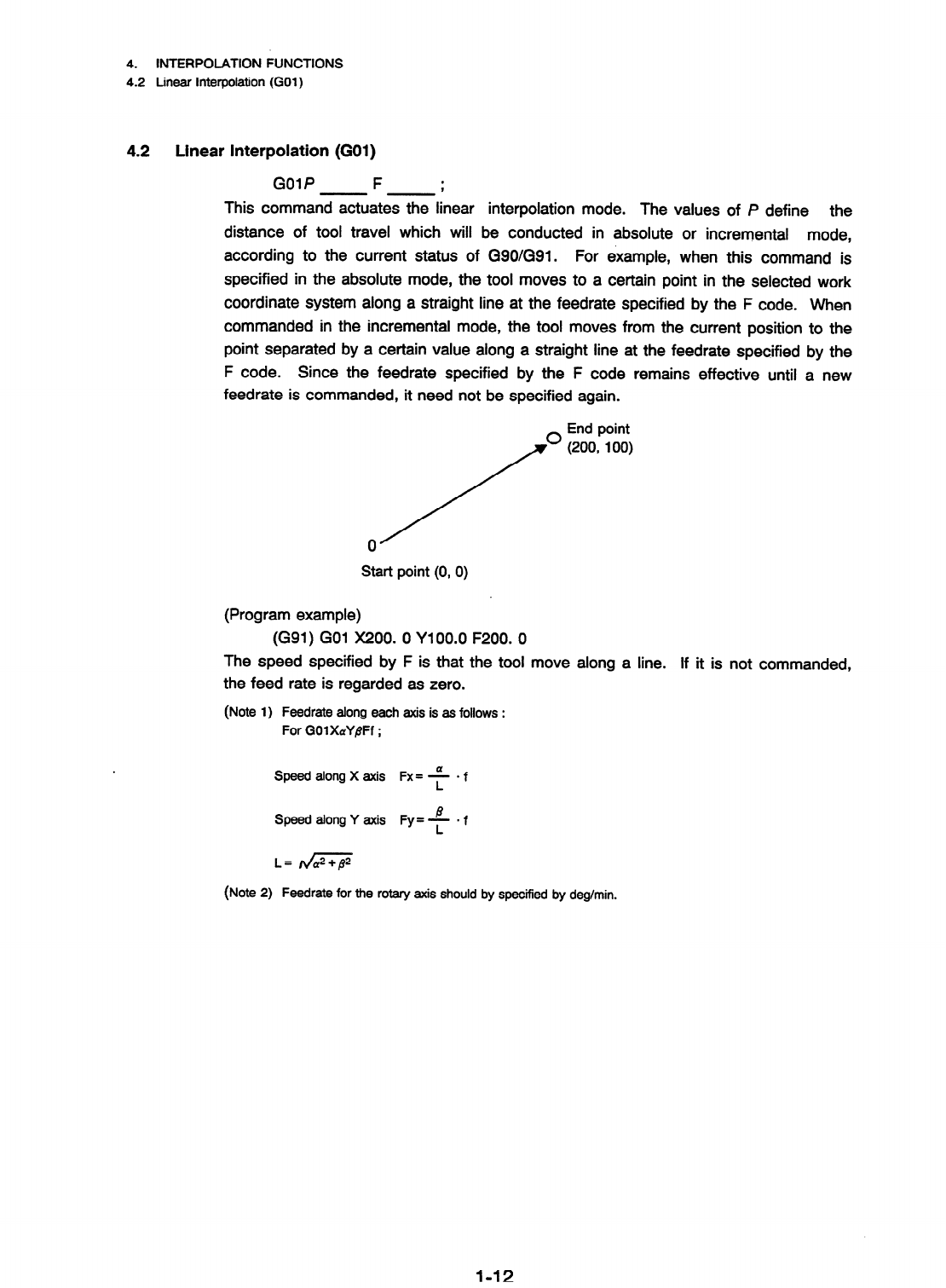

4.2 Linear Interpolation (GO1 )

4.2

Linear Interpolation (GOI)

GOlP

;

This comman~ate~linear interpolation mode. The values of P define the

distance of tool travel which will be conducted in absolute or incremental mode,

according to the current status of G90IG91.

For example, when this command is

specified in the absolute mode, the tool moves to a certain point in the selected work

coordinate system along a straight line at the feedrate specified by the F code. Men

commanded in the incremental mode, the tool moves from the current position to the

point separated by a certain value along a straight line at the feedrate specified by the

F code. Since the feedrate specified by the F code remains effective until a new

feedrate is commanded, it need not be specified again.

End point

(200, 100)

Start point (0, 0)

(Program example)

(G91) GO1 X200. 0 Y100.0 F200. 0

The speed specified by F is that the tool move along a line. If it is not commanded,

the feed rate is regarded as zero.

(Note 1)

Feedrate along each axis is as follows :

For GOlXaY@Ff ;

Speed along X axis Fx = e l f

along Y axis

Fy =

L= n/a*+@*

(Note 2) Feedrate for the

rotaw axis should bv soecified

bv dWmin.

t-12
