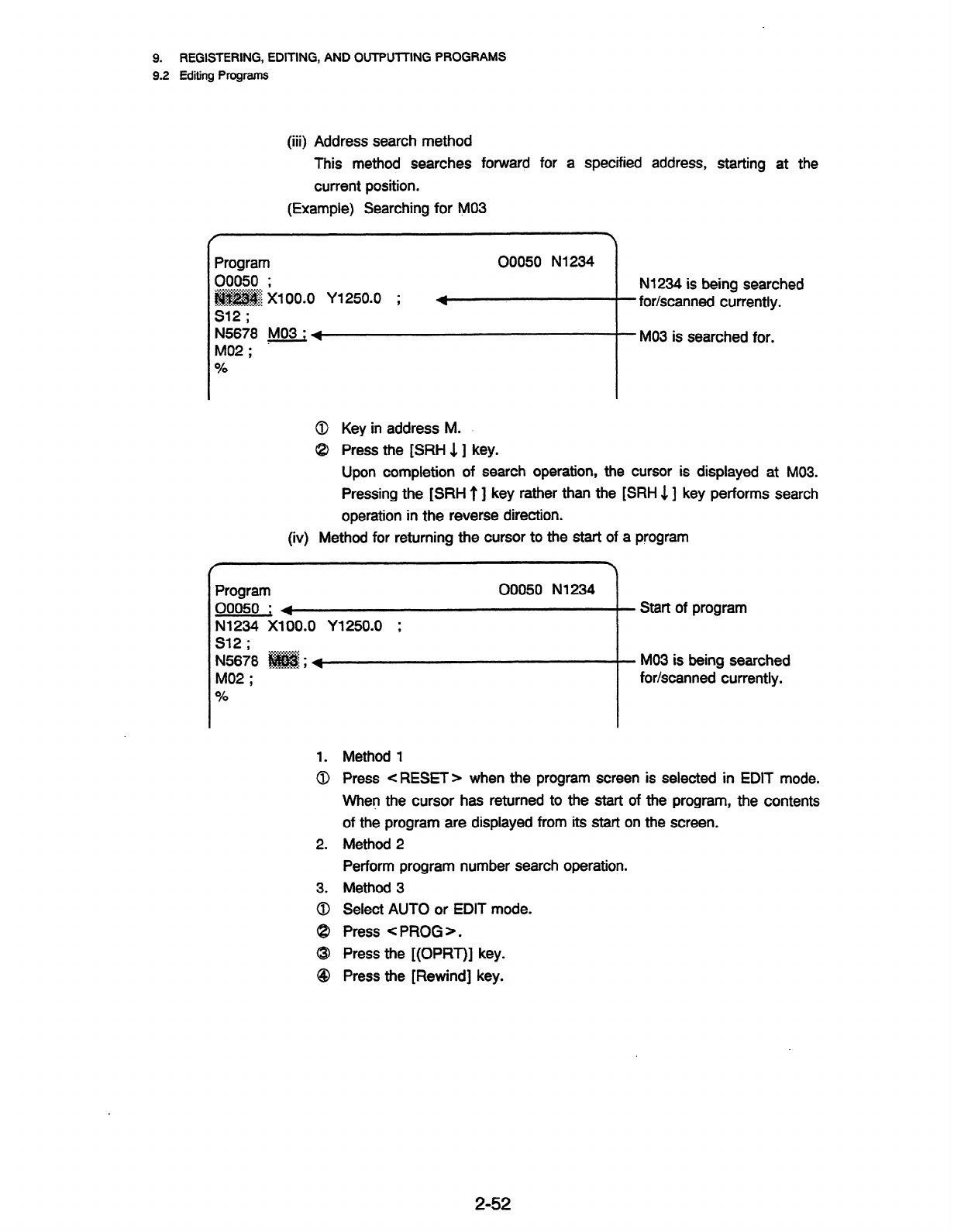

REGISTERING, EDITING, AND OUTFV’TTING PROGRAMS

9.2 Editing Programs

(iii) Address search method

This method searches forward for a specified address, starting at the

current position.

(Example) Searching for MO3

Program

00050 ;

:s:,..:...:.:.-.:.....:.~

@@&#$ Xl 00.0 Y1250.0 ;

;+...*: A . . . . .+:..*:-:

s12;

N5678 MO3 ; 4

M02; -

00050 N1234

Nf234 is being searched

for/scanned currently.

MO3 is searched for.

0 Key in address M. .

@ Press the [SRH 11 key.

Upon completion of search operation, the cursor is displayed at MO3.

Pressing the [SRH t ] key rather than the [SRH 4 ] key performs search

operation in the reverse direction.

(iv)

Method for returning the cursor to the start of a program

Program

00050 ; l

N1234 X100.0 Y1250.0 ;

s12;

. . . . . . . . . . .

. :*. . . . ._. . ._

N5673 !!@B$$; 4

00050 N1234

MO2 ;

Start of program

MO3 is being searched

for/scanned currently.

Method 1

Press c RESET> when the program screen is selected in EDIT mode.

VVhen the cursor has returned to the start of the program, the contents

of the program are displayed from its start on the screen.

Method 2

Perform program number search operation.

Method 3

Select AUTO or EDIT mode.

Press < PROG ).

Press the [(OPRT)] key.

Press the [Rewind] key.

2-52
