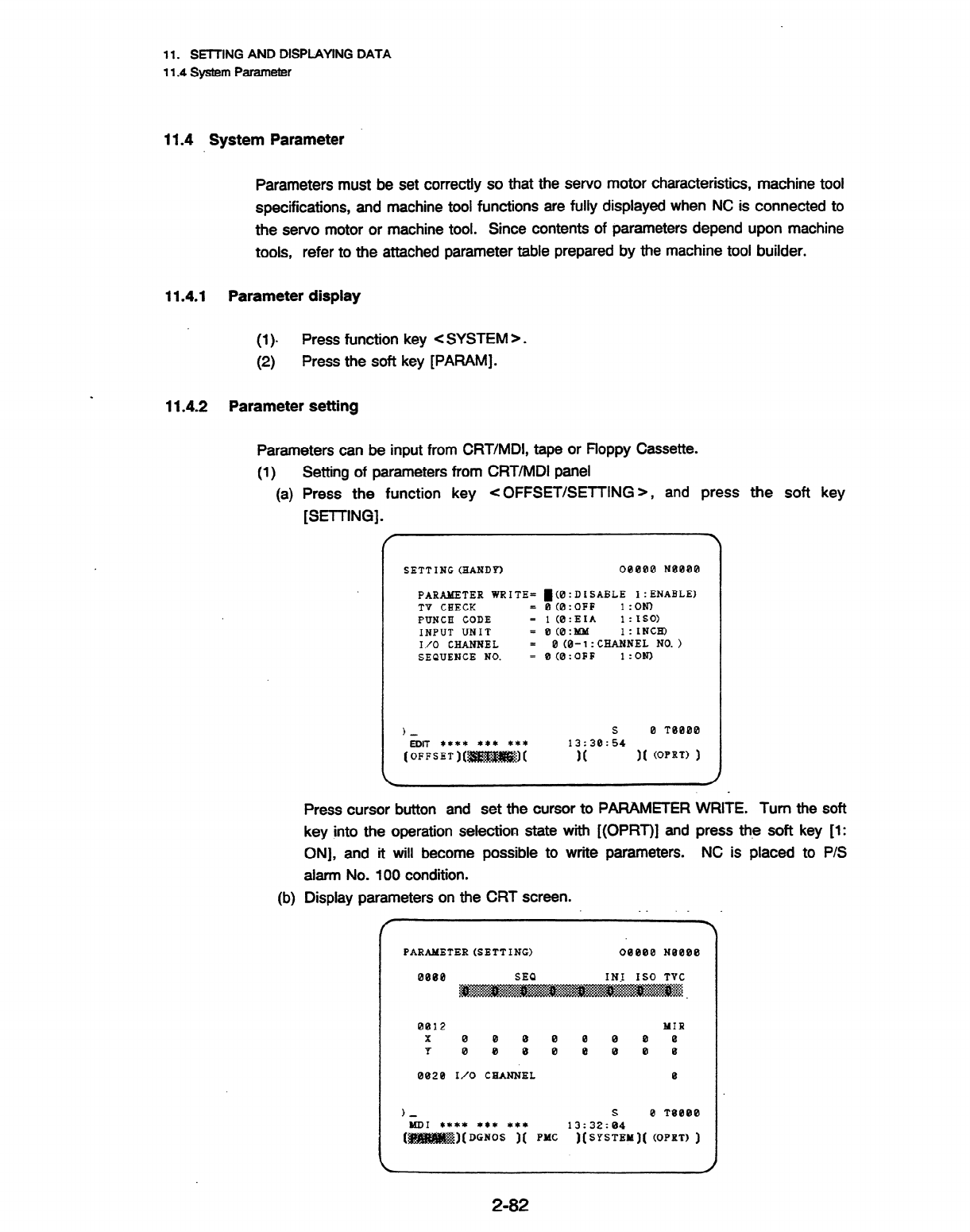

I 1. StTlNG AND DISPlJiYING DATA

11.4 System Parameter

Parameters must be set correctly so that the servo motor characteristics, machine tool

specifications, and machine tool functions are fully displayed when NC is connected to

the servo motor or machine tool. Since contents of parameters depend upon machine

tools, refer to the attached parameter table prepared by the machine tool builder.

11.4.1 Parameter display

(1)

Press function key < SYSTEM ) l

(2)

Press the soft key [PARAM].

11.4.2 Parameter setting

Parameters can be input from CRT/MD& tape or Floppy Cassette.

(1)

( )

Setting of parameters from CRT/MD1 panel

Press the function key <OFFSET/SETTING )I and press the soft key

[SETTING].

( w

Display parameters on the CRT screen.

SETTING(HANDP)

OQJ000 N0000

PARAMETER WRITE= ~(~:DISAI~LE I:ENABLE)

TV CHECK

= 0(0:OFF

1:om

PUNCH CODE

= l(0:EIA l:ISO)

INPUT UNIT

= 0(0:MM 1:INCB)

I./O CHANNEL

0(0-1:CHANNEL NO. >

SEQUENCE NO.

= 0(0:OFF

1:oN)

S 0 T6000

fDlT **** It** **s

13:30:54

(oFFSET)(~)[

)(

)( (OPRT) )

Press cursor button and set the cursor to PARAMETER WRITE. Turn the soft

key jnto the operation selection state with [(OPRT)] and press the soft key [I :

ON], and it will become possible to write parameters. NC is placed to P/S

alarm No. 100 condition.

PARAMETER(SETTING1

00000 N0008

0012

YIR

X 0

0 8 0 0 0 0

Y 0

0 8 0 0 0 0

0020 I/O CHANNEL

0 TB000

EmI s*** *** ***

13:32:04

(:~~)(DGNoS )( mc )(SYSTEY)( (OPBT) )

2-82
