Power Mate D and F Motion Controllers Programming manual Page 286

Programming manual

Page of 373

/ 373

17. DATA

INPUT/OUTPUT TO AND

FANUC FLOPPY CASStTE

17.3

Data Output Operation

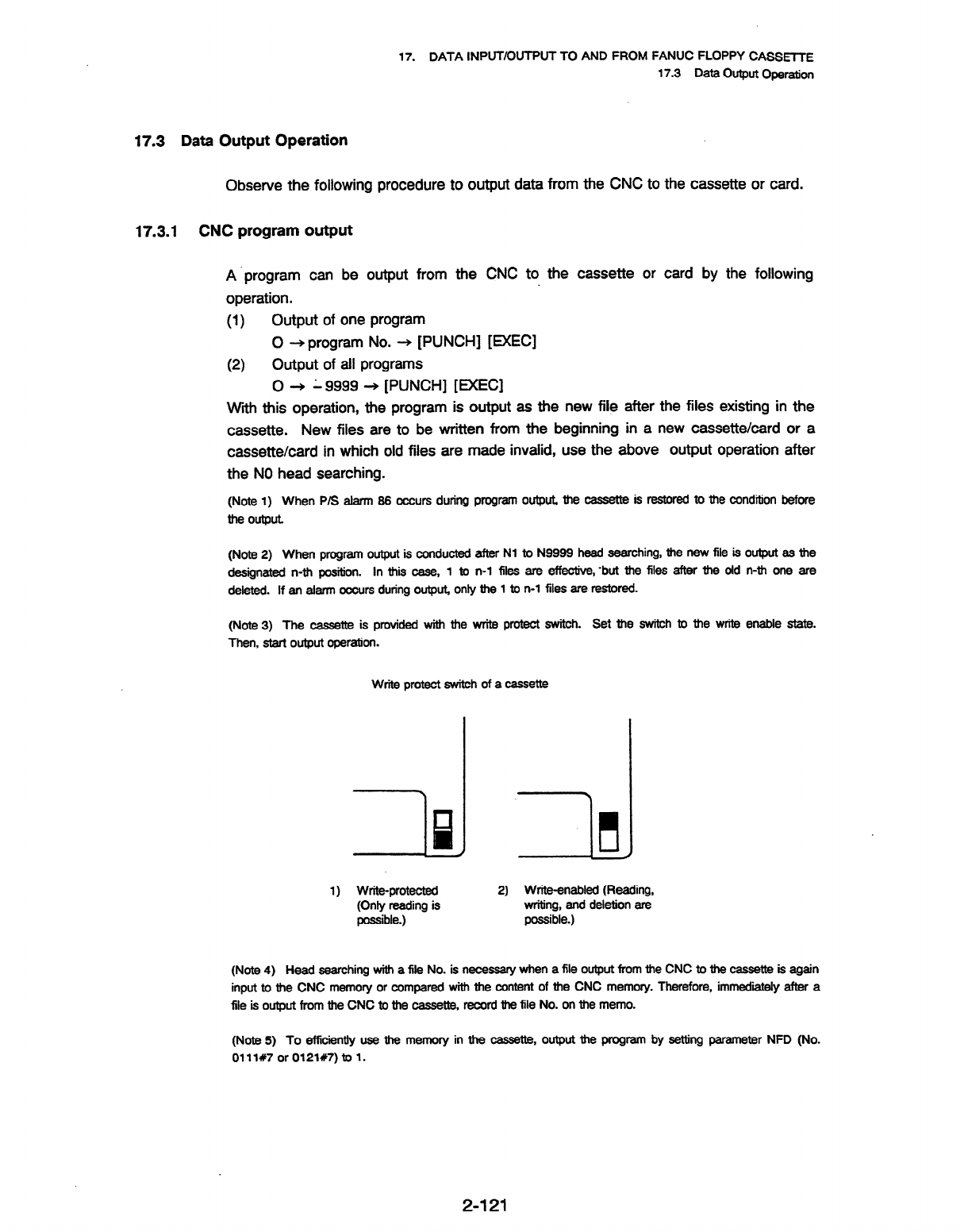

17.3 Data Output Operation

Observe the following procedure to output data from the CNC to the cassette or card.

17.3.1 CNC program output

A program can be output from the CNC to the cassette or card by the following

operation.

(1)

Output of one program

0 -+program No. + [PUNCH] [EXEC]

(2)

Output of all programs

0 + L9999 -3 [PUNCH] [EXEC]

Wtih this operation, the program is output as the new file after the files existing in the

cassette. New files are to be written from the beginning in a new cassette/card or a

cassette/card in which old files are made invalid, use the above output operation after

the NO head searching.

(Note 1) When P/S 86

cccurs

during

Program

output,

the

is to the

condition

before

the output.

(Note 2) When program output is conducted afiet Nl to N9999 head searching, the new file is output as the

designated n-th position.

In this case, 1 to n-l files are efFective, ‘but the files after the old n-th one are

dekted. if an alarm occurs during output, only the 1 to n-l files are restored.

(Note 3) The cassette is provided with the write prctect switch. Set the switch to the write enable state.

Then, start output operation.

Write protect switch of a cassette

1) Write-protected

(Only reading is

possible.)

2) Write-enabkd (Reading,

writing, and deletion are

possible.)

(Note 4) Head searching with a file No. is necessary when a file output from the CNC to the cassette is again

input to the CNC memory or compared with the content of the CNC memory. Therefore, immediately after a

file is output from the CNC to the cassette, record the file No. on the memo.

(Note 5) To efficiently

0111#7 or 01

21#7) tc

Asethe

memory

in the

-m

parameter

NFD (No.

2421
