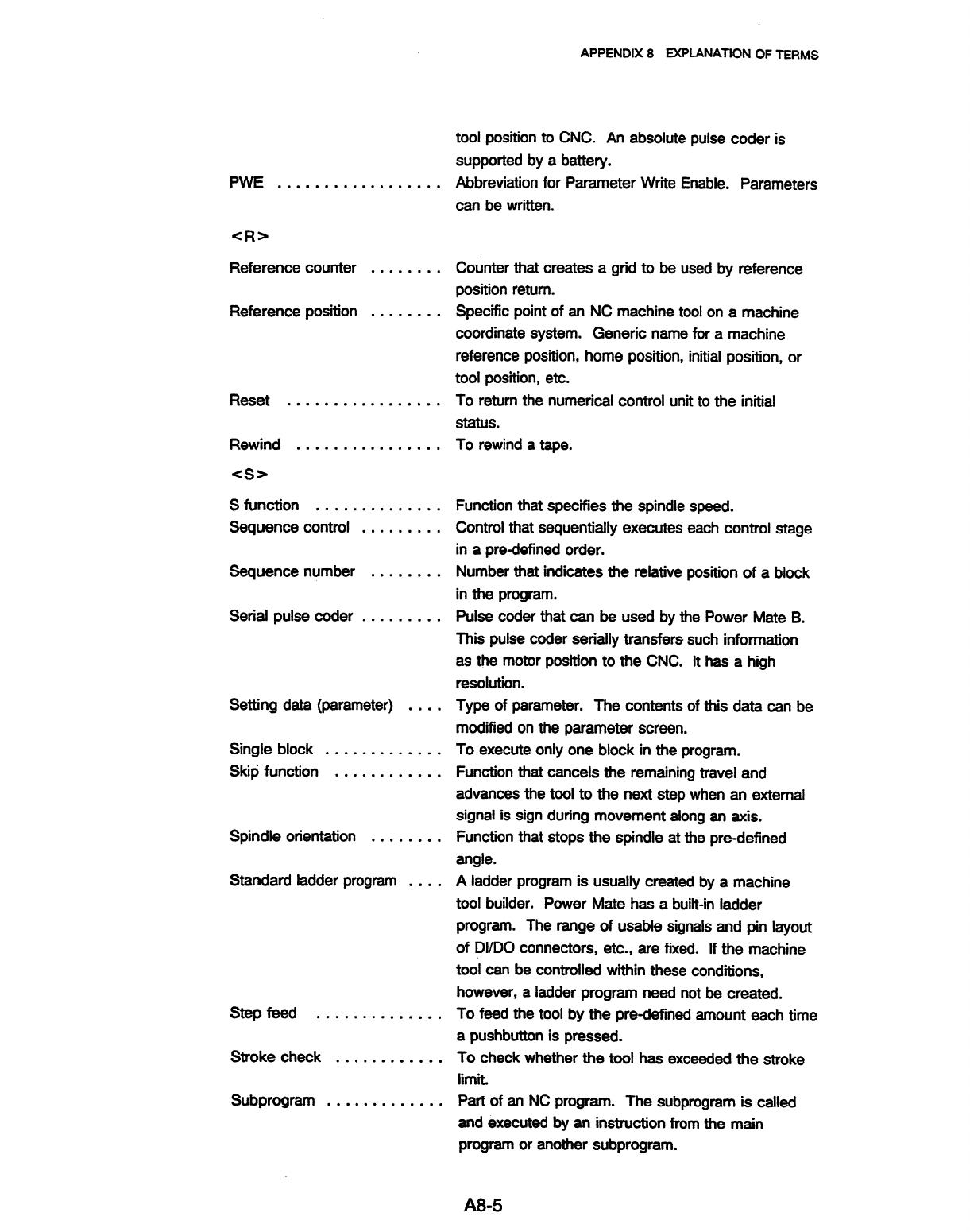

APPENDIX 8 EXPLANATION OF TERMS

tool position to CNC. An absolute pulse coder is

supported by a battery.

PWE . . . . . . . . . . . . . . . . . . Abbreviation for Parameter Wriie Enable. Parameters

can be written.

Reference counter . . . . . . . .

Counter that creates a grid to be used by reference

position return.

Reference position . l . . . l . l

Specific point of an NC machine tool on a machine

coordinate system. Generic name for a machine

reference position, home position, initial position, or

tool position, etc.

Reset

. . . . . . . . . . . . . . . . . To return the numerical control unit to the initial

status.

Rewind

. . . . . . . . . . . . . . . .

To rewind a tape.

S function

..............

Sequence control

.........

Sequence number

Serial pulse coder , . . . . . . . .

Setting data (parameter)

Single block

.............

Skip function

............

Spindle orientation

Standard ladder program . . . .

Function that specifies the spindle speed.

Control that sequentially executes each control stage

in a pre-defined order.

Number that indicates the relative position of a block

in the program.

Pulse coder that can be used by the Power Mate B.

This pulse coder serially transfers such information

as the motor position to the CNC. It has a high

resolution.

Type of parameter. The contents of this data can be

modified on the parameter screen.

To execute only one block in the program.

Function that cancels the remaining travel and

advances the tool to the next step when an external

signal is sign during movement along an axis.

Function that stops the spindle at the predefined

angle.

A ladder program is usually created by a machine

tool builder. Power Mate has a built-in ladder

program. The range of usable signals and pin layout

of DVDO connectors, etc., are fixed. If the machine

tool can be controlled within these conditions,

however, a ladder program need not be created.

Step feed . . . . . . . . . . . . . .

To feed the tool by the pre-defined amount each time

a pushbutton is pressed.

Stroke check . . . . . . . . . . . .

To check whether the tool has exceeded the stroke

limit.

Subprogram . . . . . . . . . . . . .

Part of an NC program. The subprogram is called

and executed by an instruction from the main

program or another subprogram.

A8-5
