Power Mate D and F Motion Controllers Programming manual Page 80

Programming manual

Page of 373

/ 373

13.

FUNCTIONS TO SIMPLIFY PROGRAMMING

13.1 Canned Cycles (G73, G74, G76, G78, G79,680 to G89)

13.1.7

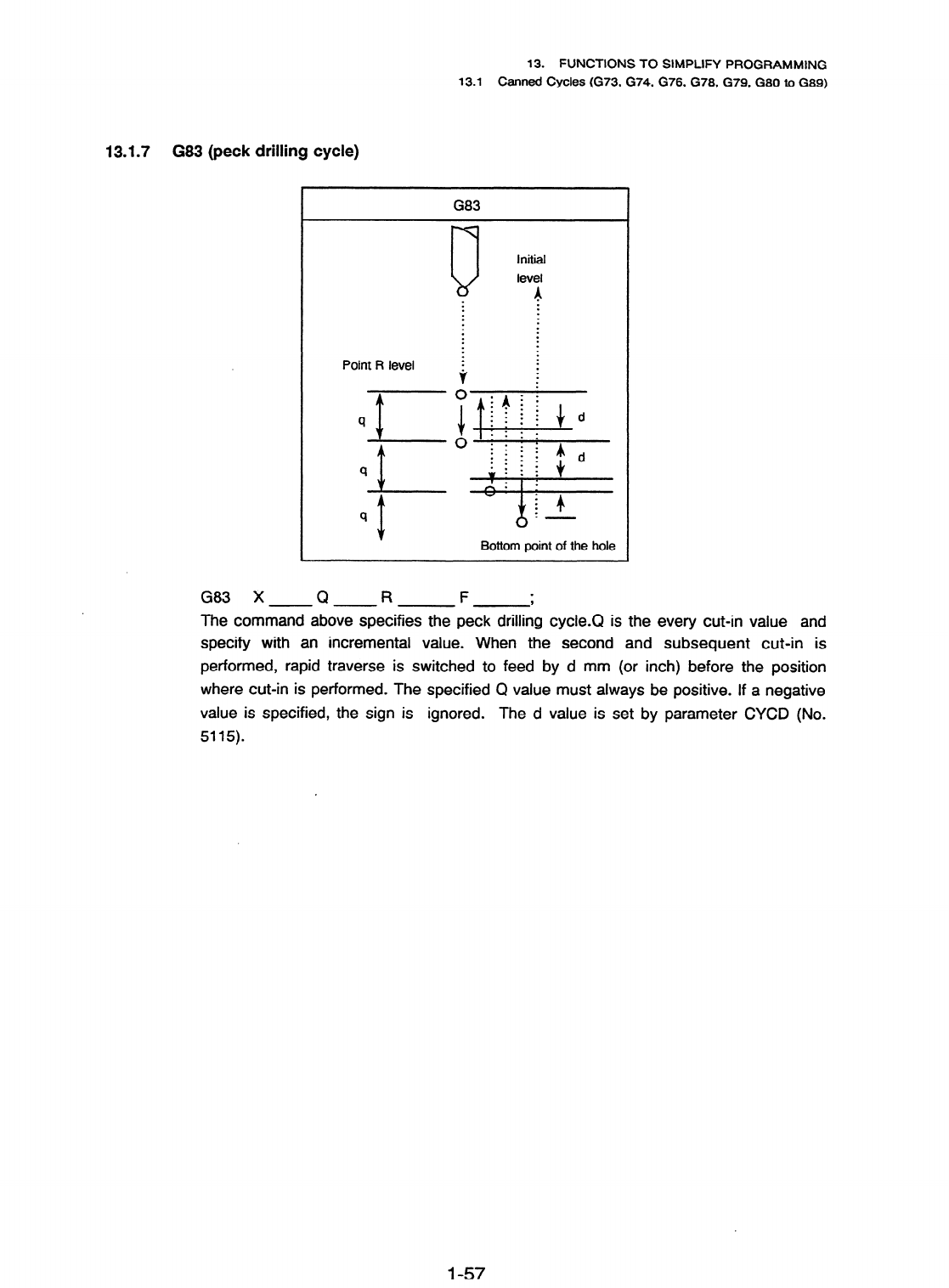

G83 (peck drilling cycle)

G83

Jnitial

level

Point R level

Bottom point of the hole

G83 X

F ;

- -

The command above specifies the peck drilling cyc1e.Q is the every cut-in value and

specify with an incremental value. When the second and subsequent cut-in is

performed, rapid traverse is switched to feed by d mm (or inch) before the position

where cut-in is performed. The specified Q value must always be positive. If a negative

value is specified, the sign is ignored.

The d value is set by parameter CYCD (No.

5115).

l-57
