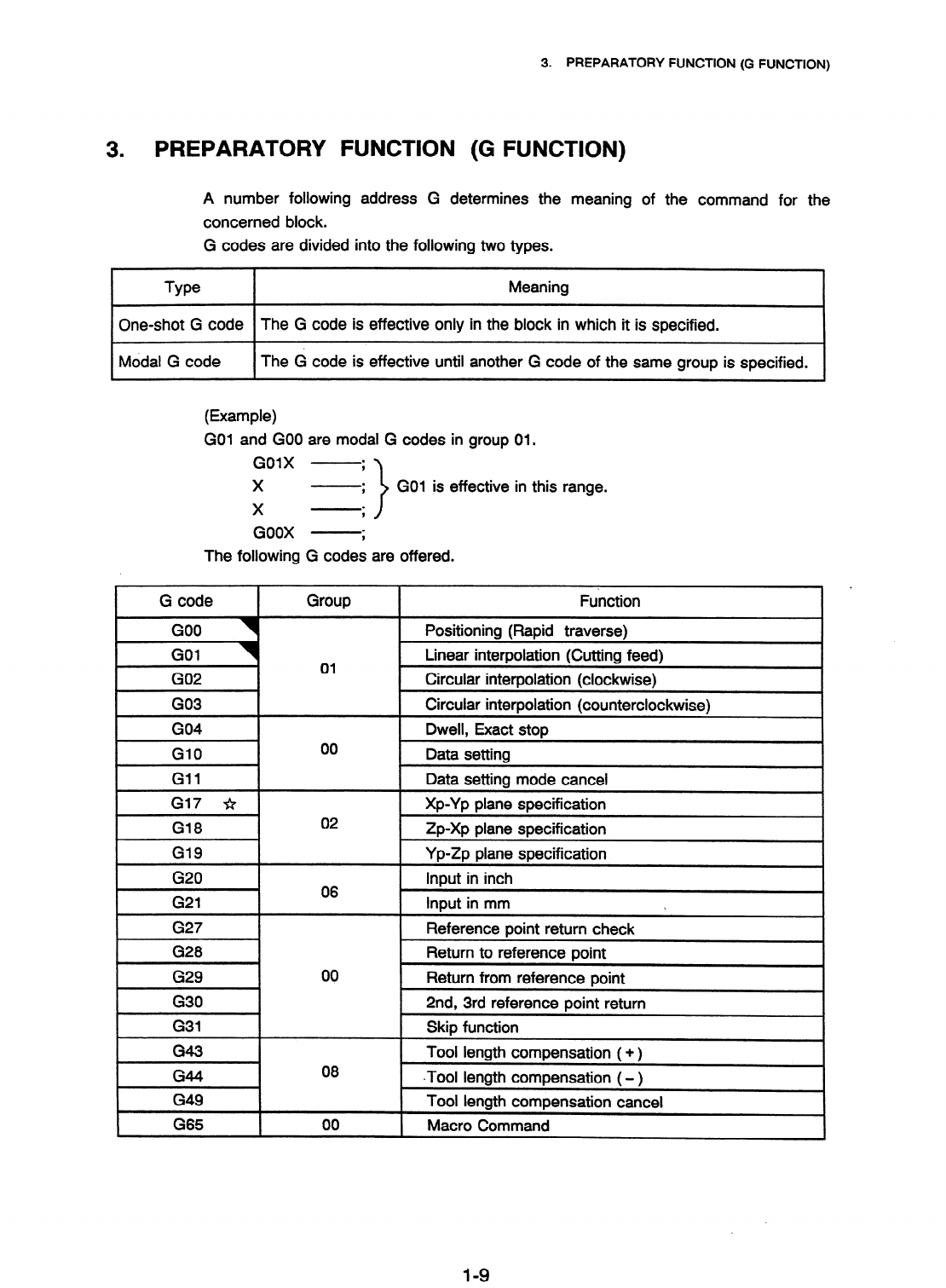

3. PREPARATORY FUNCTION (G FUNCTION)

A number following address G determines the meaning of the command for the

concerned block.

G codes are divided into the following two types.

Type

Meaning

One-shot G code

The G code is effective only in the block in which it is specified.

The G code is effective until another G code of the same group is specified.

(Example)

GO1 and GO0 are modal G codes in group

GO1X -.

GO1 is effective

GOOX -.

The following G code; are offered.

01 I

in this range.

G code

Group

Function

GO0

Positioning (Rapid traverse)

GO1

Linear interpolation (Cutting feed)

GO2

Circular interpolation (clockwise)

GO3

Circular interpolation (counterclockwise)

Go4

Dwell, Exact stop

G10

Data setting

G11

Data setting mode cancel

G17 *

Xp-Vp plane specification

G18

Zp-Xp plane specification

G19

Yp-Zp plane specification

G20

Input in inch

G21

Input in mm

G27

Reference point return check

G28 Return to reference point

G29

Return from reference point

G30 2nd, 3rd reference point return

G31

Skip function

G43

Tool length compensation ( + )

G44

-Tool length compensation ( - )

G49

Tool length compensation cancel

G65

Macro Command
