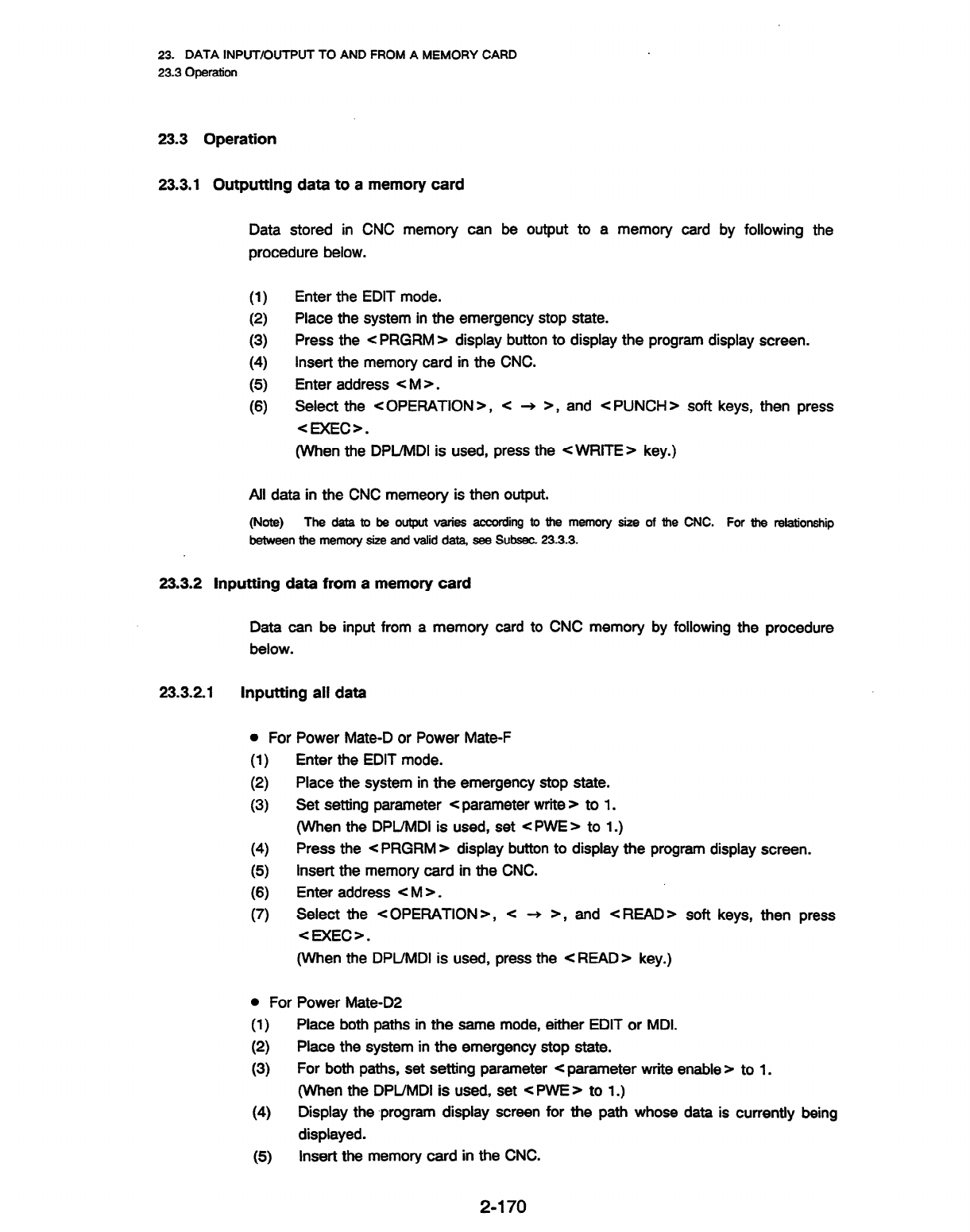

23. DATA INPUT/OUTPUT TO AND FROM A MEMORY CARD

23.3 Operation

23.3.1

Outputting data to a memory card

Data stored in CNC memory can be output to a memory card by following the

procedure below.

(1)

(2)

(3)

(4)

(5)

(8)

Enter the EDIT mode.

Place the system in the emergency stop state.

Press the < PRGRM ) display button to display the program display screen.

Insert the memory card in the CNC.

Enter address < M a.

Select the <OPERATION >, < + >, and <PUNCH> soft keys, then press

<ExEc>.

(When the DPL/MDl is used, press the <WRITE ) key.)

All data in the CNC memeory is then output.

The data to be output varies according to the memory size of the CNC. For the relationship

between the memory size and valid data, see

Subsec. 23.3.3.

23.3.2 inputting data from a memory card

Data can

be input from a memory

card to CNC memory by following the procedure

23.3.2.1 Inputting all data

l For Power Mate-D or Power Mate-p

(1)

Enter the EDIT mode.

(2)

Place the system in the emergency stop state.

(3) Set setting parameter c parameter write ) to 1.

(When the DPUMDI is used, set <PWE> to 1.)

(4)

Press the < PRGRM * display button to display the program display screen.

(5)

Insert the memory card in the CNC.

(6)

Enter address < M ).

(7)

Select the <OPERATION ), < --) a, and <READ> soft keys, then press

. For

(1)

(2)

(3)

(4)

(5)

<EXECx

(When the DPIJMDI is used, press the < READ) key.)

Power Mate-D2

Place both paths in the same mode, e-tier EDIT or MDI.

Place the system in the emergency stop state.

For both paths, set setting parameter <parameter wriie enable > to I.

(When the DPUMDI is used, set CP\NE> to 1.)

Display the .program display screen

for the path whose data is currently being

displayed.

Insert the memory card in the CNC.

2-l 70
