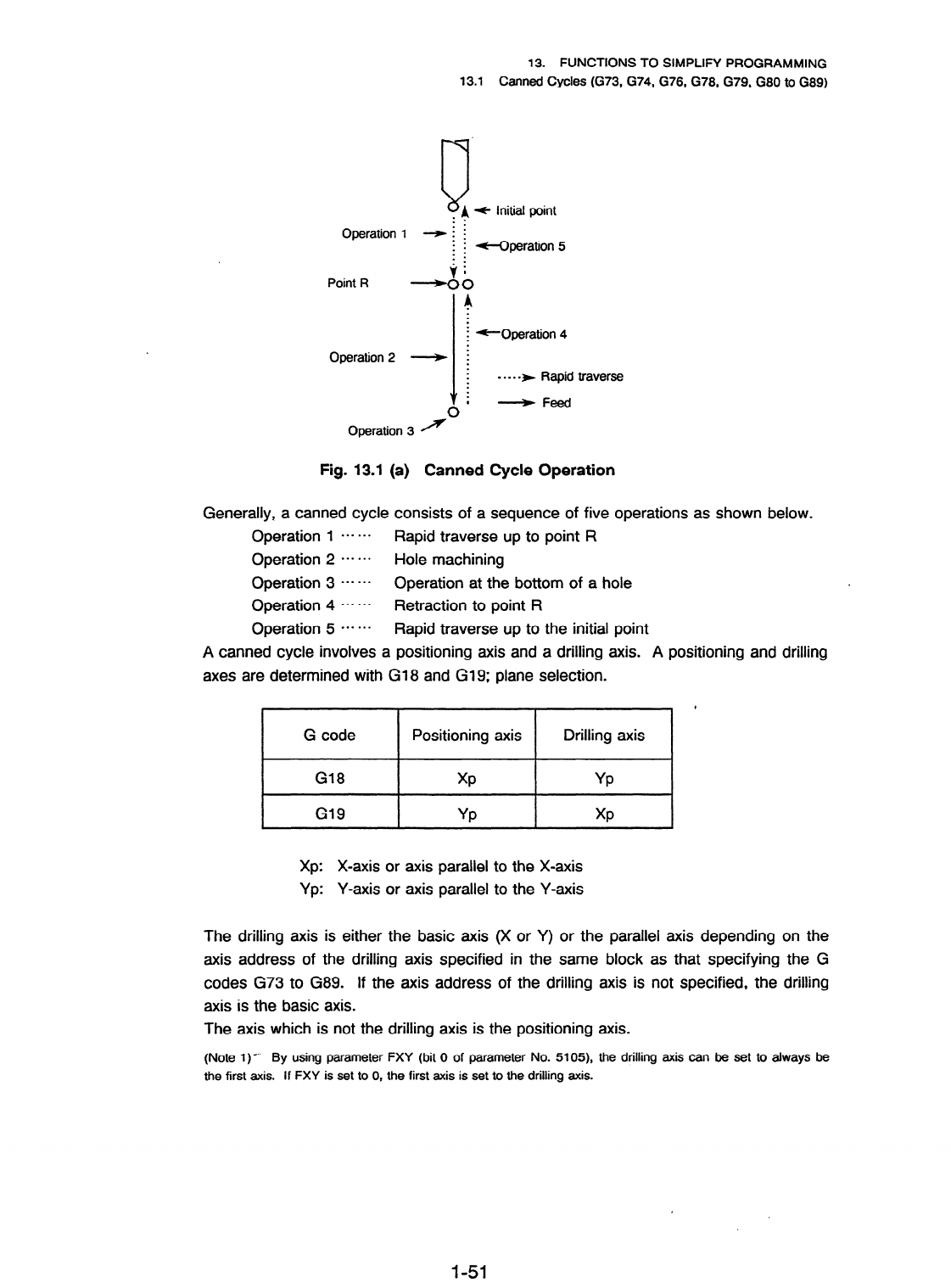

13.

FUNCTIONS TO SIMPLIFY PROGRAMMING

13.1 Canned Cycles (G73, G74, G76, G78, G79, G80 to G89)

r), * initial point

. l

Operation 1 --) i i

i i t-operation 5

Point R

. l

l :

-06

: -Operation 4

Operation 2 *

0’

Operation 3 Y

- l - . -+ Rapid traverse

- Feed

Fig. 13.1 (a) Canned

Cycle Operation

Generally, a canned cycle consists of a

sequence of five operations as shown below.

Operation 1 l l -=

Rapid traverse up to point R

Operation 2 l *- l -•

Hole machining

Operation 3 -0. ---

Operation at the bottom of a hole

Operation 4 n -0 =- l Retraction to point R

Operation 5 l l = l . . Rapid traverse up to the initial point

A canned cycle involves a positioning axis and a drilling axis. A positioning and drilling

axes are determined with G18 and G1 9; plane selection.

G code

Positioning axis

Drilling axis

G18

GlQ

YP XP

Xp: X-axis or axis parallel to the X-axis

Yp: Y-axis or axis parallel to the Y-axis

The drilling axis is either the basic axis (X or Y) or the parallel axis depending on the

axis address of the drilling axis specified in the same block as that specifying the G

codes G73 to G89. If the axis address of the drilling

axis is not specified, the drilling

axis is the basic axis.

The axis which is not the driliing axis is the positioning

(Note 1) Wm. By using parameter FXY (bit 0 of parameter No. 5105),

the first axis.

If FXY is set to 0, the first axis is set to the drilling axis.

axis.

the drilling axis can be set to aiways be

l-51
