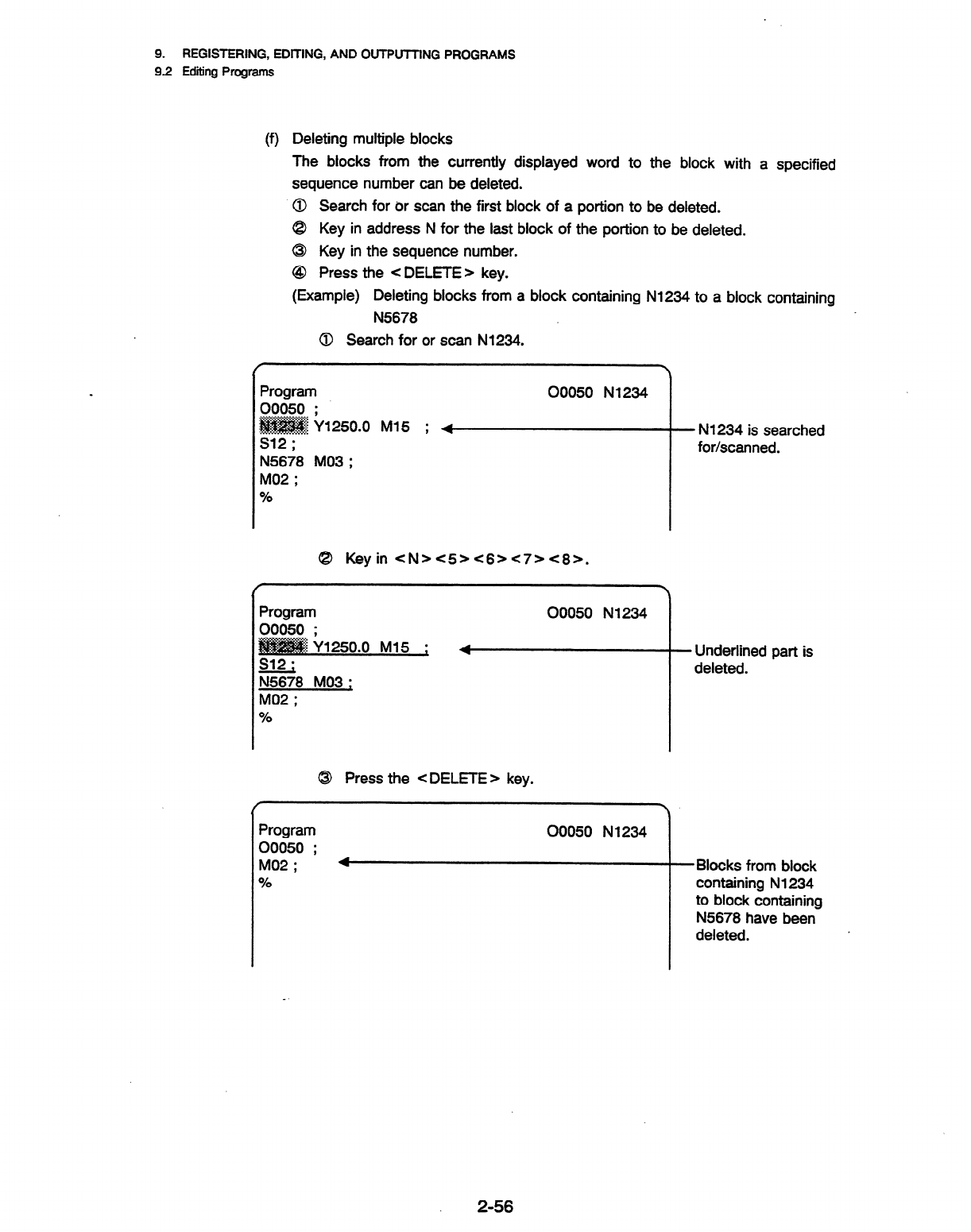

REGISTERING, EDITING, AND OUlPU-iTtNG PROGRAMS

9.2 Editing Programs

(f) Deleting multiple blocks

The blocks from the currently displayed word to the block with a specified

sequence number can be deleted.

Search for or scan the first block of a portion to be deleted.

@ Key in address N for the last block of the portion to be deleted.

@ Key in the sequence number.

@ Press the C DELETE > key.

(Example)

Deleting blocks from a block containing N1234 to a block containing

N5678

@ Search for or scan N1234.

Program

00050 ;

. . . . . . . . . . . .

:..~~.:.....~.*.‘.‘....::tz;t

&tgm y1250.0 Ml5 ; 4

‘A’. .::.... . s a. .+:..+:

s12 ;

00050 Nl234

N5678 MO3 ;

MO2 ;

@ Keyin <N>C5><6><7><8>.

Program

00050 ;

‘.*,.~..?.~:~~‘~....:~....:.

. . . . .

~$&!&Yl250.0 Ml5 ;

‘. :

s& \

00050 N1234

N5678 MO3 ;

MO2 ;

Of0

@ Press the <DELETE> key.

Program

00050 ;

MO2 ;

Of0

00050 N1234

- N1234 is searched

for/scanned.

- Underlined part is

deleted.

-Blocks from block

containing N1234

to block containing

N5678 have been

deleted.
