JNTRODUCTION

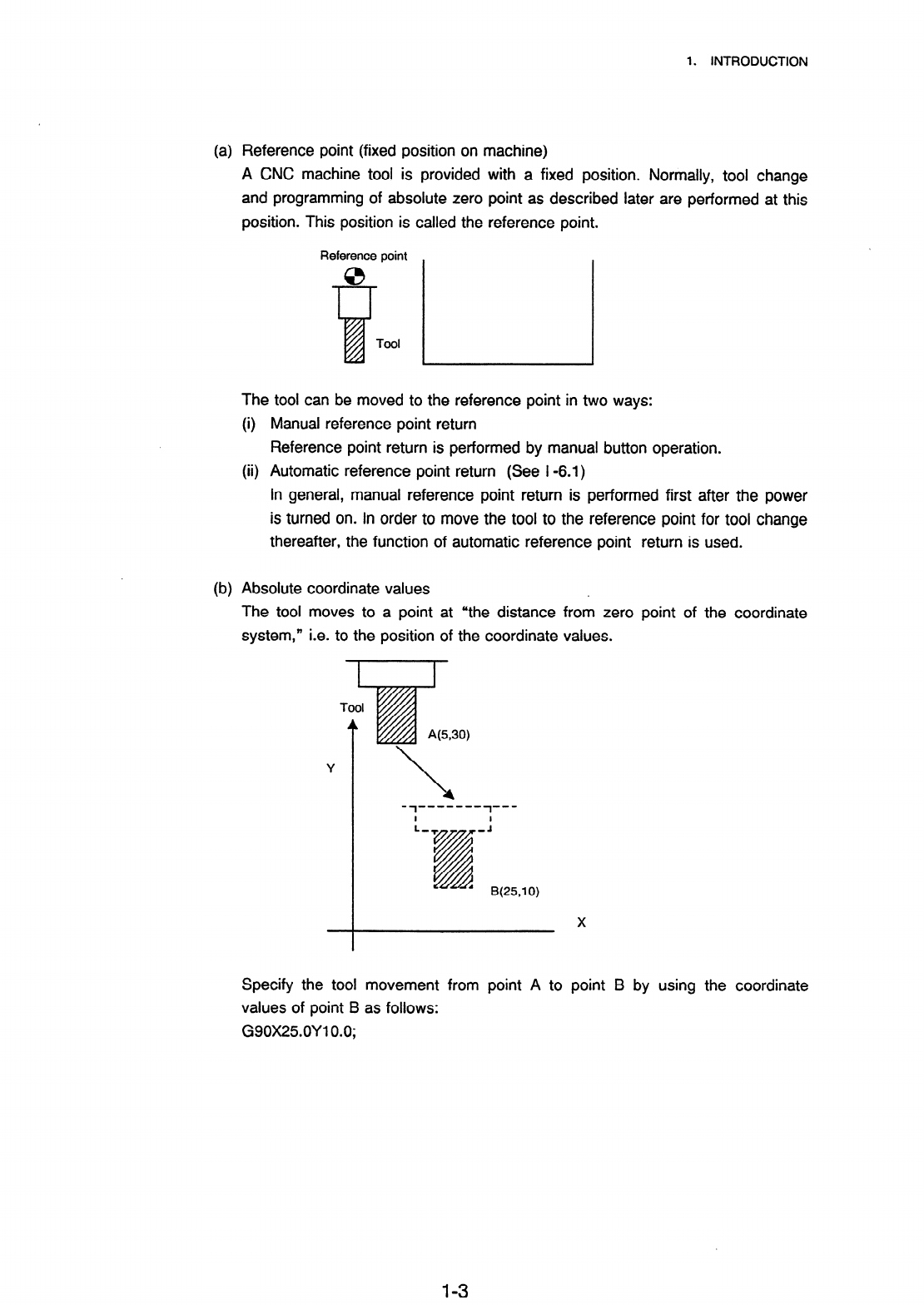

(a) Reference point (fixed position on machine)

A CNC machine tool is provided with a fixed position. Normally, tool change

and programming of absolute zero point as described later are performed at this

position. This position is called the reference point.

Reference point

Q- /

The tool can be moved to the reference point in two ways:

(i) Manual reference point return

Reference point return is performed by manual button operation.

(ii) Automatic reference point return (See I -6.1)

In general, manual reference point return is performed first after the power

is turned on. In order to move the tool to the reference point for tool change

thereafter, the function of automatic reference point return is used.

(b) Absolute coordinate values

The tool moves to a point at

“the distance from zero point of the coordinate

system,” i.e. to the position of

the coordinate values.

Specify the tool movement from point A to point B by using the coordinate

values of point B as follows:

G9OX25.OYI 0.0;

1-3
