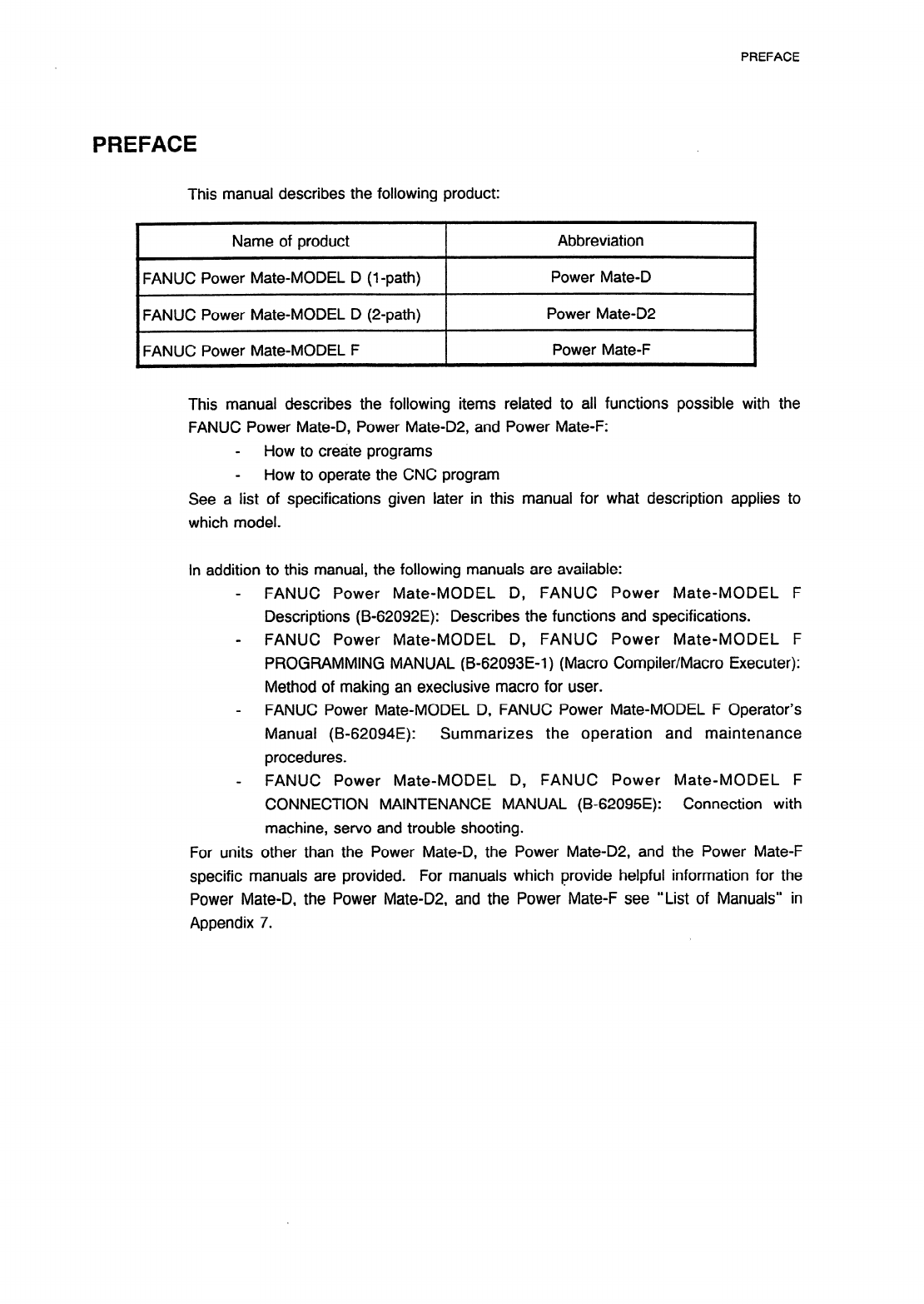

PREFACE

This manual describes the following product:

Name of product

Abbreviation

FANUC Power Mate-MODEL D (l-path)

Power Mate-D

FANUC Power Mate-MODEL D (2.path)

Power Mate-D2

FANUC Power Mate-MODEL F

Power Mate-F

This manual describes the following items related to all functions possible with the

FANUC Power Mate-D, Power Mate-D2, and Power Mate-F:

- How to create programs

- How to operate the CNC program

See a list of specifications given later in this manual for what description applies to

which model.

In addition to this manual, the following manuals are available:

- FANUC Power Mate-MODEL D, FANUC Power Mate-MODEL F

Descriptions (B-62092E): Describes the functions and specifications.

- FANUC Power Mate-MODEL D, FANUC Power Mate-MODEL F

PROGRAMMING MANUAL (B-62093E-1) (Macro Compiler/Macro Executer):

Method of making an execlusive macro for user.

- FANUC Power Mate-MODEL D, FANUC Power Mate-MODEL F Operator’s

Manual (B-62094E):

Summarizes the operation and maintenance

procedures.

- FANUC Power Mate-MODEL D, FANUC Power Mate-MODEL F

CONNECTION MAINTENANCE MANUAL (B-62095E): Connection with

machine, servo and trouble shooting.

For units other than the Power Mate-D, the Power Mate-D2, and the Power Mate-F

specific manuals are provided.

For manuals which provide helpful information for the

Power Mate-D, the Power Mate-D2, and the Power Mate-F see “List of Manuals” in

Appendix 7.
