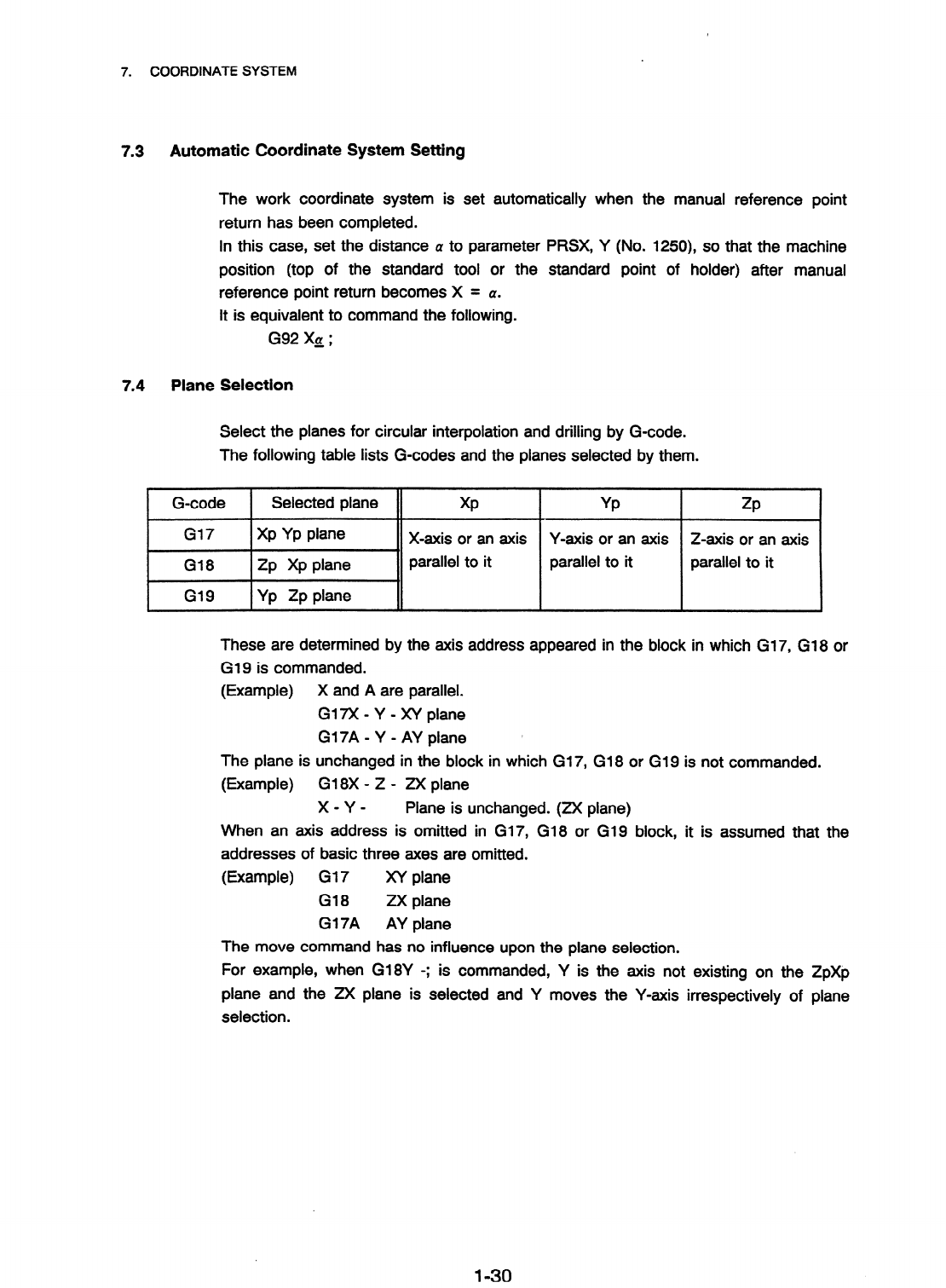

7. COORDINATE SYSTEM

7.3

Automatic Coordinate System Setting

The work coordinate system is set automatically when the manual reference point

return has been completed.

In this case, set the distance Q to parameter PRSX, Y (No. 1250), so that the machine

position (top of the standard tool or the standard point of holder) after manual

reference point return becomes X = a.

It is equivalent to command the following.

G92 X45 ;

7.4

Plane Selection

Select the planes for circular interpolation and drilling by G-code.

The following table lists G-codes and the planes selected by them.

G-code

Selected plane

XP YP ZP

G17

Xp Yp plane

X-axis or an axis Y-axis or an axis Z-axis or an axis

G18

Zp Xp plane

parallel to it

parallel to it parallel to it

G19

Yp Zp plane

These are determined by the axis address appeared in the block in which G17, G18 or

Gl9 is commanded.

(Example)

X and A are parallel.

Gl7X - Y - XY plane

G17A - Y - AY plane

The plane is unchanged in the block in which G17, G18 or Gl9 is not commanded.

(Example) Gl8X - 2 - ZX plane

X-Y-

Plane is unchanged. (ZX plane)

When an axis address is omitted in G17, G18 or G19 block, it is assumed that the

addresses of basic three axes are omitted.

(Example) G17 XY plane

G18

2X plane

Gl7A AY plane

The move command has no influence upon the plane selection.

For example, when G18Y -; is commanded, Y is the axis not existing on the ZpXp

plane and the ZX plane is selected and Y moves the Y-axis irrespectively of plane

selection.

l-30
