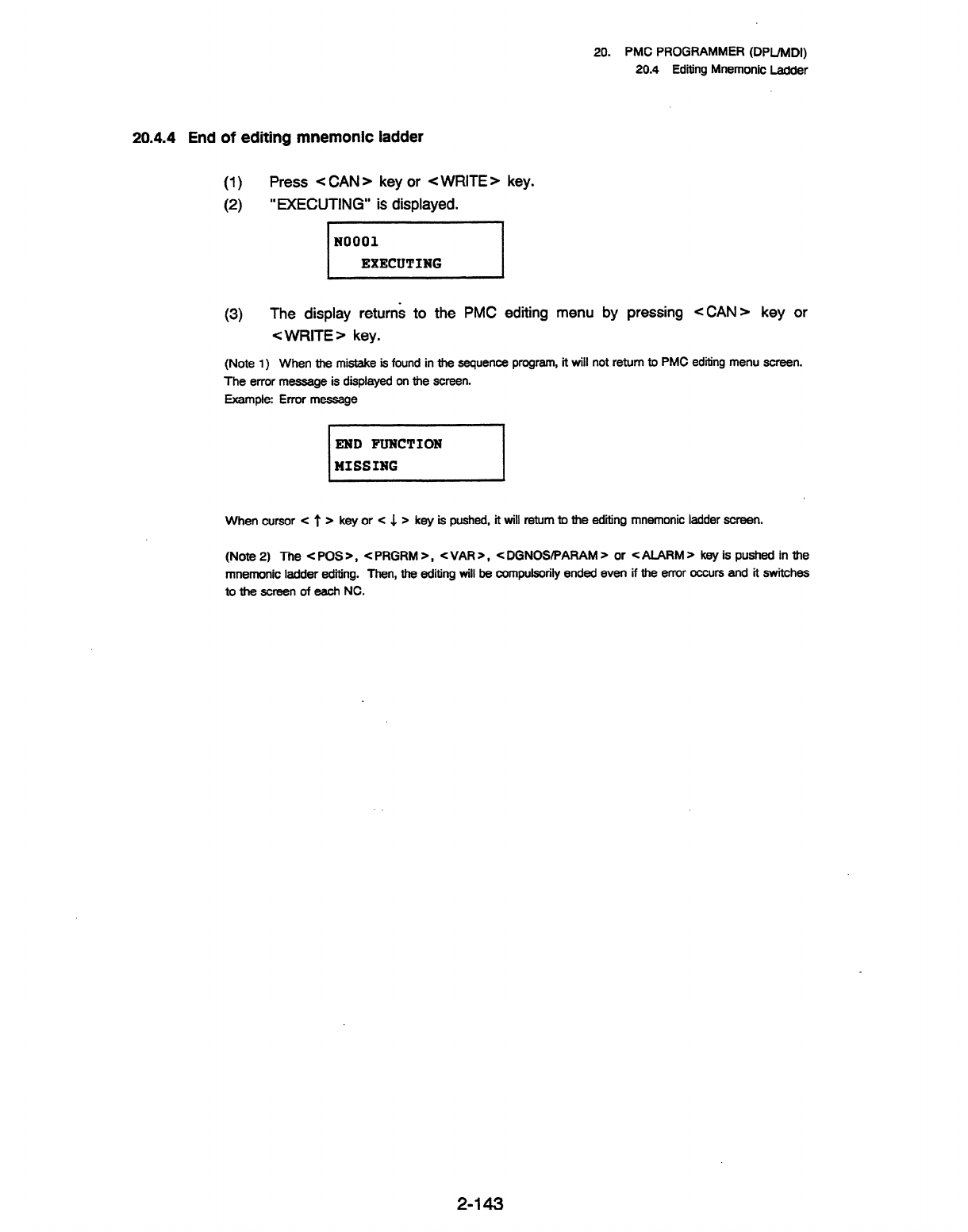

20. PMC PROGRAMMER (DPUMDI)

20.4 Editing Mnemonic ladder

20.4.4 End of editing mnemonic ladder

(1)

Press < CAN) key or <WRITE> key.

(2)

“EXECUTING” is displayed.

(3)

The display returns to the PMC editing menu by pressing <CAN ) key or

<WRITE ) key.

(Note I) When the mistake is found in the sequence program, it will not return to PMC editing menu screen.

The error message is displayed on the screen.

Example: Error message

END FUNCTION

MISSING

When cursor c t B key or < 4 > key is pushed, it will return to the editing mnemonic ladder screen.

(Note 2) The < POS a, < PRGRM >, <VAR >, < DGNOSIPARAM > or <ALARM > key is pushed in the

mnemonic ladder editing. Then, the editing will be compulsorily ended even if the error occurs and it switches

to the screen of each NC.
