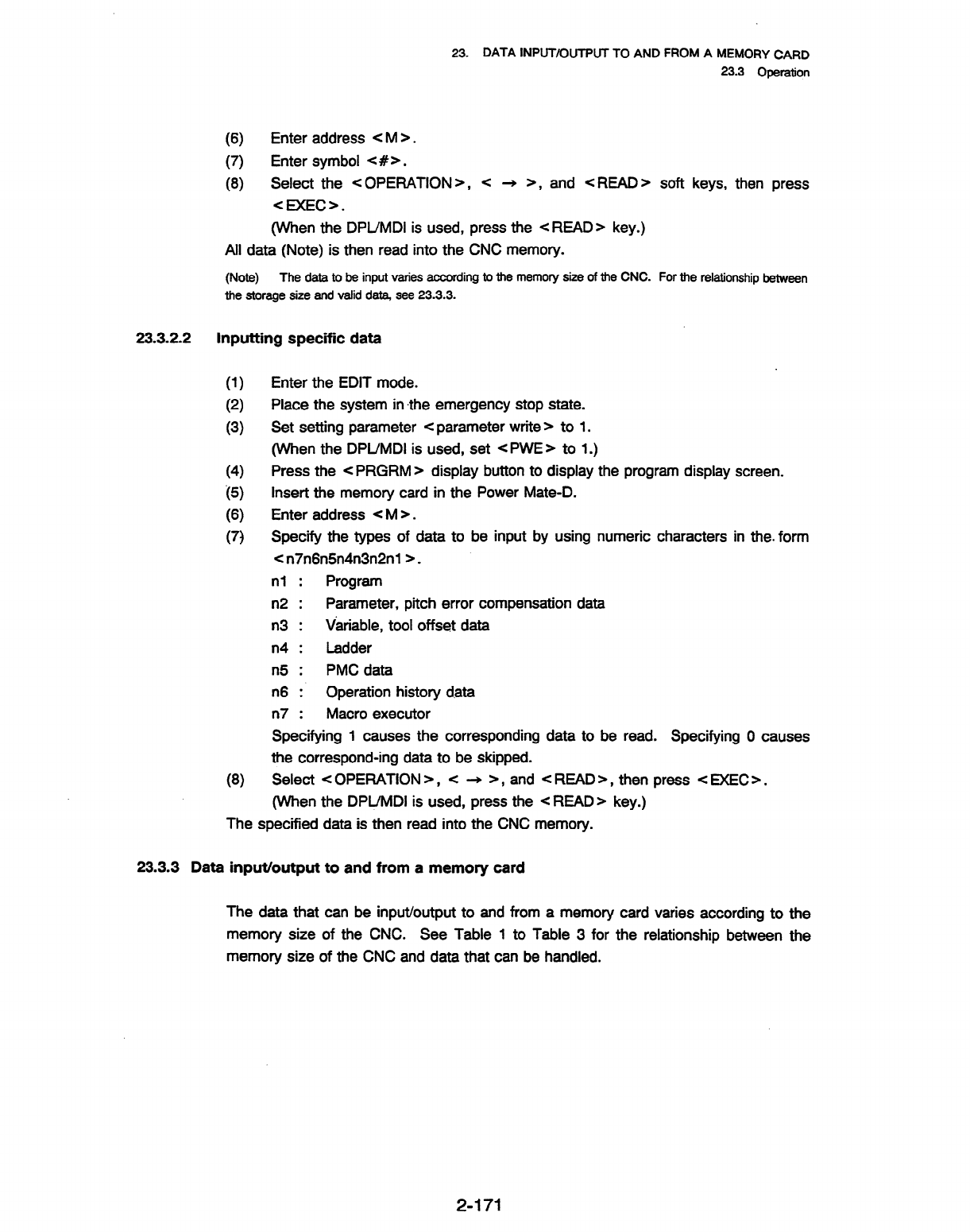

23. DATA INPUT/OUTPUT TO AND FROM A MEMORY CARD

23.3 Operation

23.3.2.2

(6) Enter address c M > .

(7)

Enter symbol <#>.

(8) Select the <OPERATION>, < + >, and <READ> soft keys, then press

<EXEC>.

(When the DPUMDI is used, press the <READ> key.)

All data (Note) is then read into the CNC memory.

(Note)

The data to be input varies according to the memory size of the CNC.

For the relationship between

the storage size and vaJid dab, see 23.3.3.

inputting specific data

(1)

Enter the EDIT mode.

(2)

Place the system in the emergency stop state.

(3)

Set setting parameter <parameter write) to 1.

(When the DPUMDI is used, set <PWE> to 1.)

(4)

Press the < PRGRM ) display button to display the program display screen.

(5)

Insert the memory card in the Power Mate-D.

(6)

Enter address < M ).

(71

Specify the types of data to be input by using numeric characters in the. form

< n7n6n94n3n2nls. ’

nl : Program

n2 : Parameter, pitch error compensation data

n3 :

Variable, tool offset data

n4 :

Ladder

n5 : PMC data

n6 : Operation history d,ata

n7 :

Macro executor

Specifying 1 causes the corresponding data to be read. Specifying 0 causes

the correspond-ing data to be skipped.

(8) Select <OPERATION), < + ), and <READ>, then press c EXEC>.

(When the DPLAADI is used, press the < READ) key.)

The specified data is then read into the CNC memory.

23.3.3 Data input/output to and from a memory card

The data that can be input/output to and from a memory card varies according to

memory size of the CNC. See Table 1 to Table 3 for the relationship between

memory size of the CNC and data that can be handled.

the

2-171
