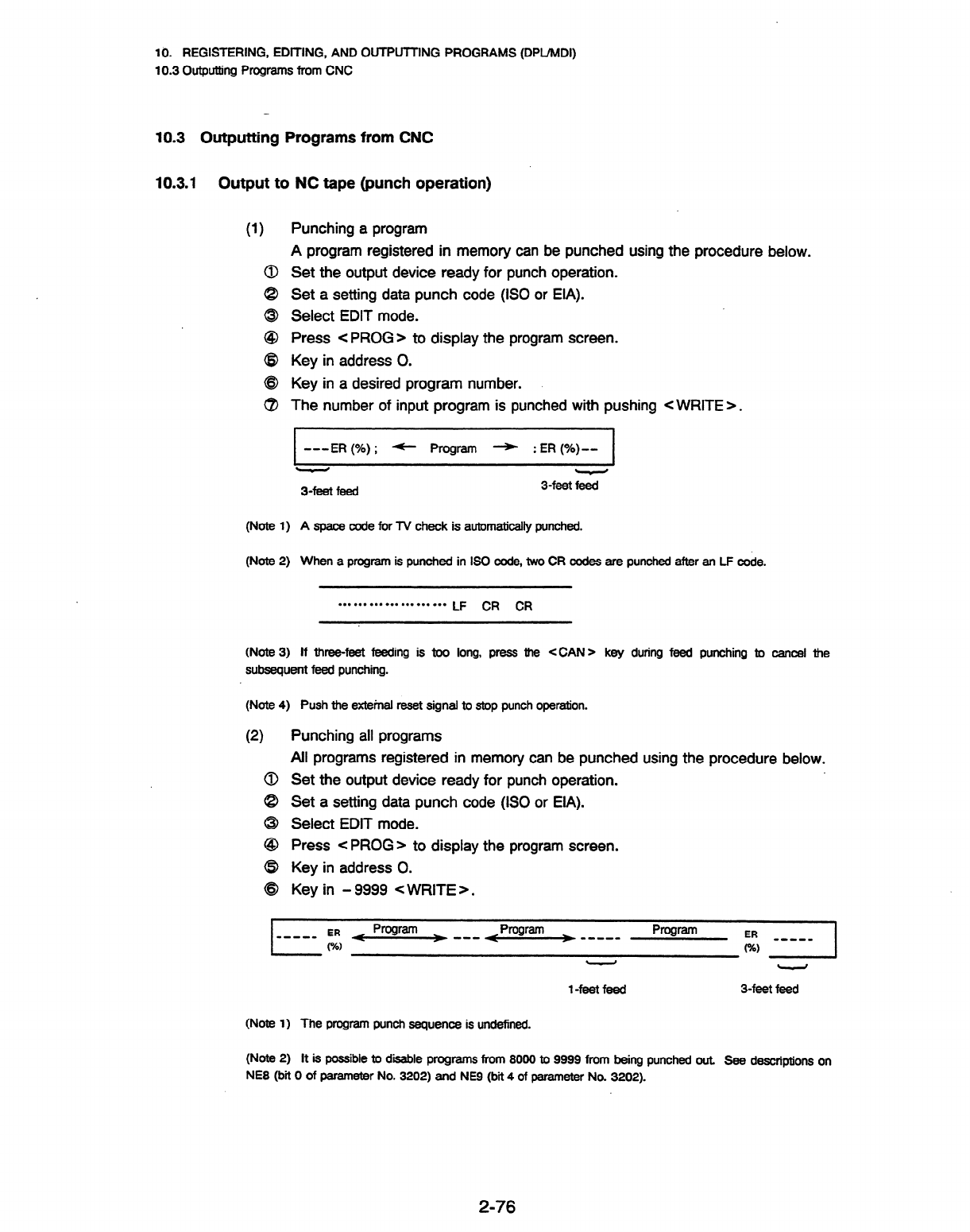

10. REGISTERING, EDITING, AND OUTPUTTING PROGRAMS (DPVMDI)

10.3 Outputting Programs from CNC

10.3.1 Output to NC tape (punch operation)

Punching a program

A program registered in memory can be punched using the procedure below.

Set the output device ready for punch operation.

Set a setting data punch code (IS0 or EIA).

Select EDIT mode.

Press c PROG > to display the program screen.

Key in address 0.

Key in a desired program number.

The number of input program is punched with pushing <WRITE>.

---ER (%) ; + Program - : ER (%)--

t _ 4

l 1

34eet feed

3-feet feed

(Note 1) A space code for TV check is automatically punched.

(Note 2) When a program is punched in IS0 code, two CR codes are punched after an LF code.

. . . . . . . . . . . . . . . . . . . . . LF

CR CR

(Note 3) If three-feet feeding is too long, press the <CAN > key during feed punching to cancel the

subsequent feed punching.

(Note 4)

Push the exteinal reset signaf to stop punch operation.

(2)

Punching all programs

All programs registered in memory can be punched using the procedure below.

Set the output device ready for punch operation.

Set a setting data punch code (IS0 or EIA).

Select EDIT mode.

Press < PROG ) to display the program screen.

Key in address 0.

Key in - 9999 <WRITE).

l-feet feed

3-feet feed

(Note 1) The program punch sequence is undefined.

(Note 2) It is possible to disable programs from 8000 tc 9999 from being punched out See descriptions on

NE8 (bit 0 of parameter No. 3202) and NE9 (bit 4 of parameter Na 3202).

2-76
