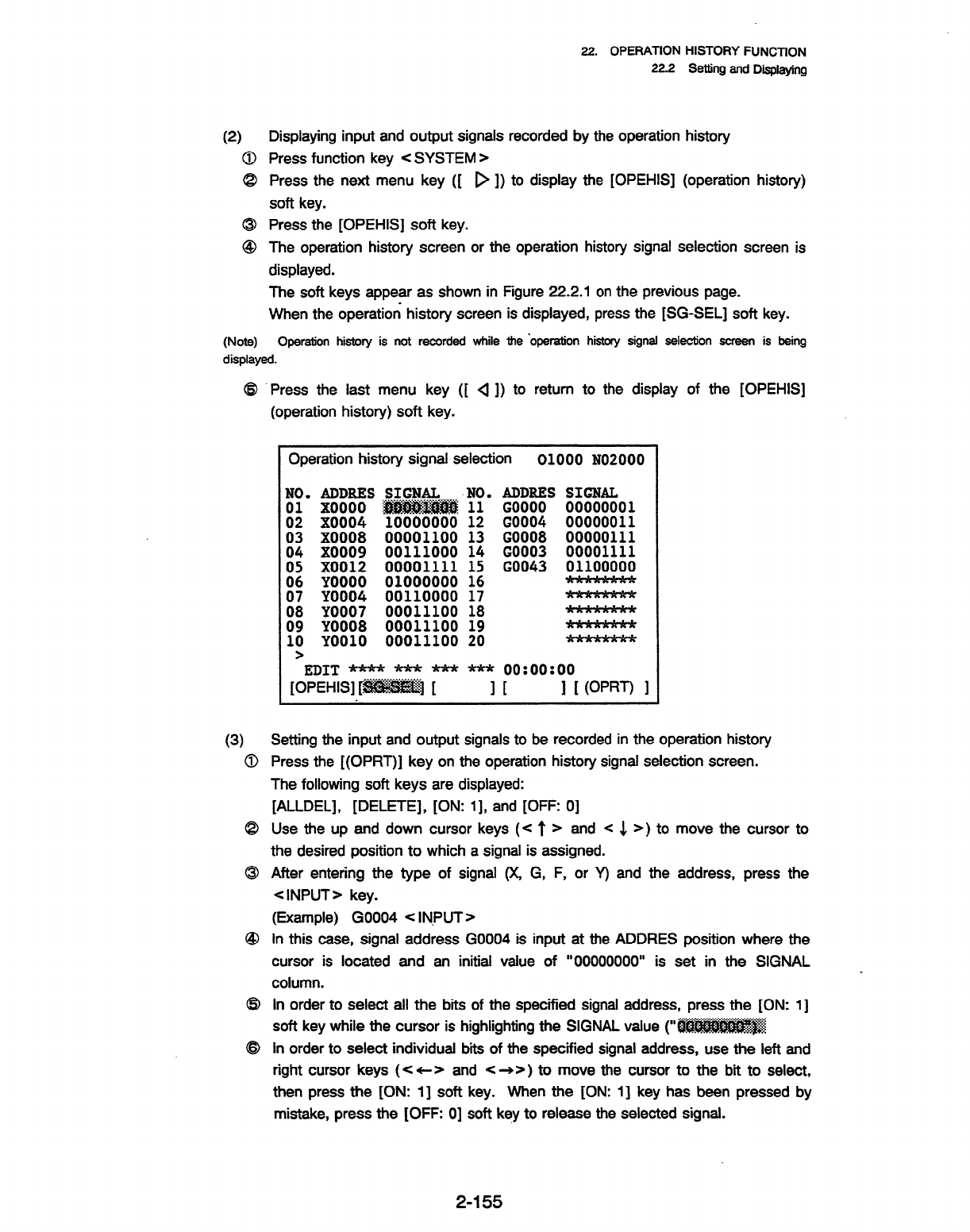

zz. OPERATION HISTORY FUNCTION
22.2 Setting and Displaying
(2)
0
@
(Note)
Displaying input and output signals recorded by the operation history
Press function key < SYSTEM >
Press the next menu key ([ D 1) to display the [OPEHIS] (operation history)
soft key.
Press the [OPEHIS] soft key.
The operation history screen or the operation history signal selection screen is
displayed.
The soft keys appear as shown in Figure 22.2.1 on the previous page.
When the
Operation
displayed.
(3)
a
operation history screen
is displayed, press the
[SG-SEL] soft
key
.
history is not recorded while the ‘operation history signal
selection scfeen is being
. Press the last menu key ([ 4 I) to return to the display of the [OPEHIS]
(operation history) soft key.
Operation history signal selection
01000 NO2000
NO. ADDEW SIGNAL
.NO. ADDRES SIGNAL
.*. .,. ._. .*. f._. .;..q...* . . . . . .
01 X0000 $##&@@&f# .*: 11 GO000 00000001
02 X0004 10000000 12 GO004 00000011
03 x0008 00001100 13 GO008 00000111
04 x0009 00111000 14 GO003 00001111
05 X0012 00001111 15 GO043 01100000
06 YOOOO 01000000 16
07 YOOO4 00110000 17
08 YOO07 00011100
18
09 YOO08 00011100
19
10 YOOlO 00011100 20
>
EDIT M - -
- 0O:OO:OO
p . .
. . . . . . .
JOPEHIS] [$#&=&I .,.*: .*:+. .+. [
] [ I 1 (OPW 1
Setting the input and output signals to be recorded in the
operation history
Press the [(OPRT)] key on the operation history signal selection screen.
The following soft keys are displayed:
[ALLDEL], [DELETE], [ON: 11, and [OFF: 0]
Use the up and down cursor keys (< f’ ) and < & a) to move the cursor to
the desired position to which a signal is assigned.
After entering the type of signal (X, G, F, or Y) and the address, press the
< INPUT > key.
(Example) GO004 < INPUT)
In this case, signal address GO004 is input at the ADDRES position where the
cursor is located and an initial vaiue of “00000000” is set in the SIGNAL
column.
In order to select all the bits of the specified signal address, press the [ON: 1]
soft key while the cursor is highlighting the SIGNAL v&e (~~~~~~~~~
In order to select individual biis of the specified signal address, use the left and
right cursor keys ( < +) and < +>) to move the cursor to the bit to select,
then press the [ON: 11 soft key. When the [ON: 1 ] key has been pressed by
mistake, press the [OFF: 0] soft key to release the selected signal.
