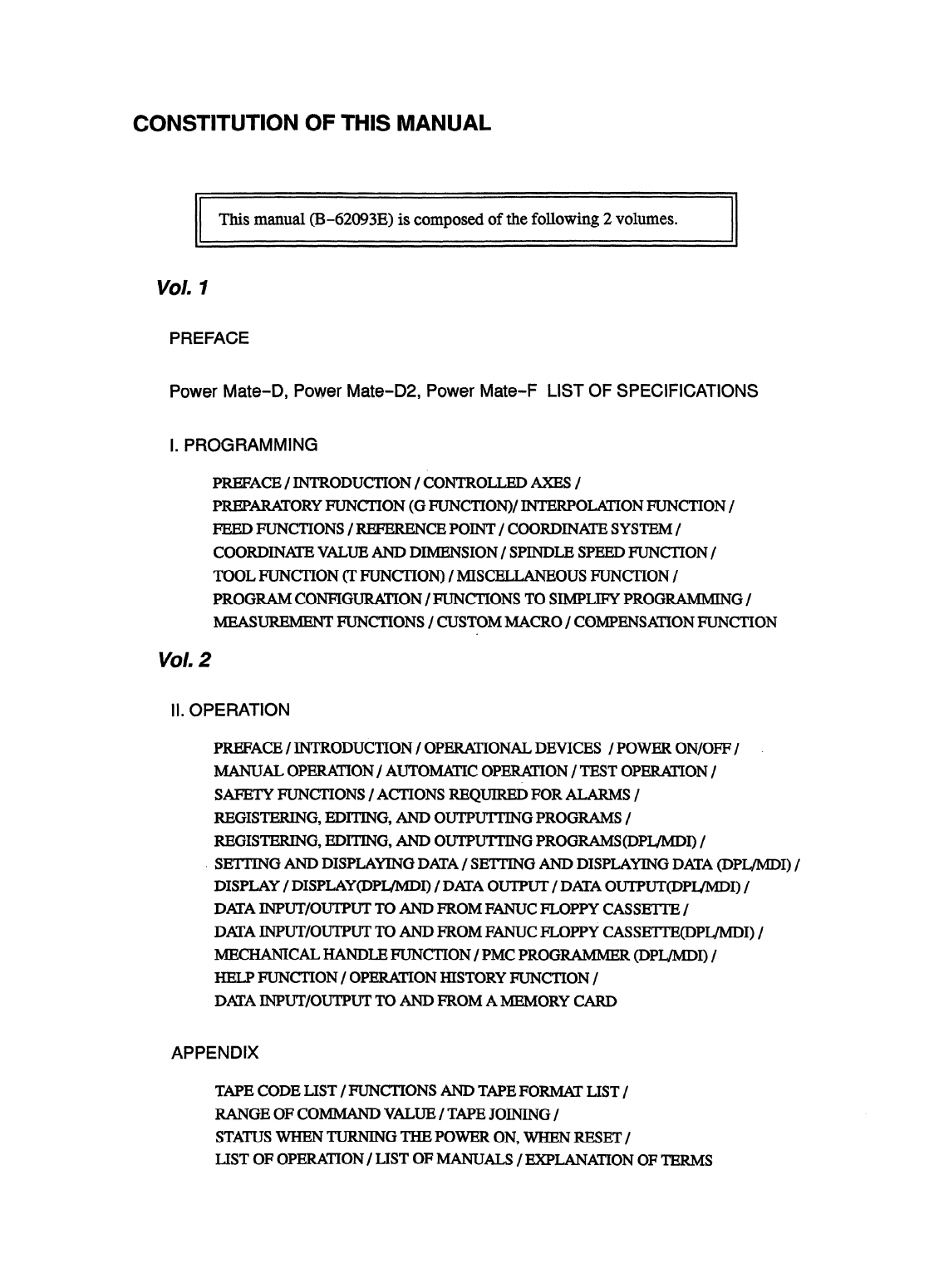

CONSTITUTION OF THIS MANUAL

This manual (B-62093E) is composed of the following 2 volumes.

Vol. 7

PREFACE

Power Mate-D, Power Mate-D2, Power Mate-F LIST OF SPECIFICATIONS

I. PROGRAMMING

PREFACE / INTRODUCTION / CONTROLLED AXES /

PREPARATORY FUNCTION (G FUNCTION)/ INTERPOLATION FUNCTION /

FEED FUNCTIONS /

REFERENCE POINT / COORDINATE SYSTEM /

COORDINm VALUE AND DIMENSION/ SPINDLE SPEED FUNCTION/

TOOL FUNCTION (T FUNCTION) / MISC ELLANEOUS FUNCTION /

PROGRAM CONFIGURAIION /FUNCTIONS TO SIMPLIFY PROGRAMMING /

MEASUREMENT FUNCTIONS / CUSTOM MACRO / COMPENSAII1[ON FUNCTION

Vol. 2

II. OPERATION

PREFACE / INTRODUCTION / OPERATIONAL DEVICES / POWER ON/OFF / .

MANUAL OPERAnON/ AUTOMATIC OPERATXON /TEST OPERiWION /

SAFETY FUNCTIONS / ACTIONS REQUIRED FOR ALARMS /

REGISTERING, EDITING, AND OUTPUITING PROGRAMS /

REGISTERING, EDITING, AND OUTPU’ITING PROGRAMS(DPL/MDI) /

. SETTING AND DISPLAYING DATA / SETTING AND DISPLAYING DATA (DPL_AdDI) /

DISPLAY / DISPLAY(DPlJMD1) / DATA OUTPUT /DATA OUTPUT(DPlJMD1) /

DATA INPUT/OUTPUI’ TO AND FROM FANUC FLOPPY CASSE’ITE /

DATA INPUT/OUTPUT TO AND FROM FANUC FLOPPY CASSETTE(DPL/MDI) /

MECHANICAL HANDLE FUNCTION / PMC PROGRAMMER

@pwMDI) I

HELP FUNCTION / OPERATION HISTORY FUNCTION /

DATA INPUT/OUTPUT TO AND FROM AMEMORY CARD

APPENDIX

TAPE CODE LIST /FUNCTIONS AND TAPE FORMAT LIST /

RANGE OF COMMAND

VALUE / TAPE JOINING /

STATUS WHEN TURNING THE POWER ON, WHEN RESET /

LIST OF OPERATION / LIST OF MANUALS /EXPLANATION OF TERMS
