2.21.5 Example
• Example of cylindrical interpolation cutting point compensation
The sample program below indicates the positional relationships between a
workpiece and tool.
O0001(CYLINDRICAL INTERPOLATION1) ;
N01 G00 G90 Z100.0 C0 ;
N02 G01 G91 G19 Z0 C0 ;
N03 G07.1 C57299 ;
N04 G01 G42 G90 Z120.0 D01 F250. ; - - - (1)
N05 C20.0 ; - - - (2)
N06 G02 Z110.0 C60.0 R10.0 ; - - - (3)
N07 G01 Z100.0 ; - - - (4)
N08 G03 Z60.0 C70.0 R40.0 ; - - - (5)
:
M30 ;

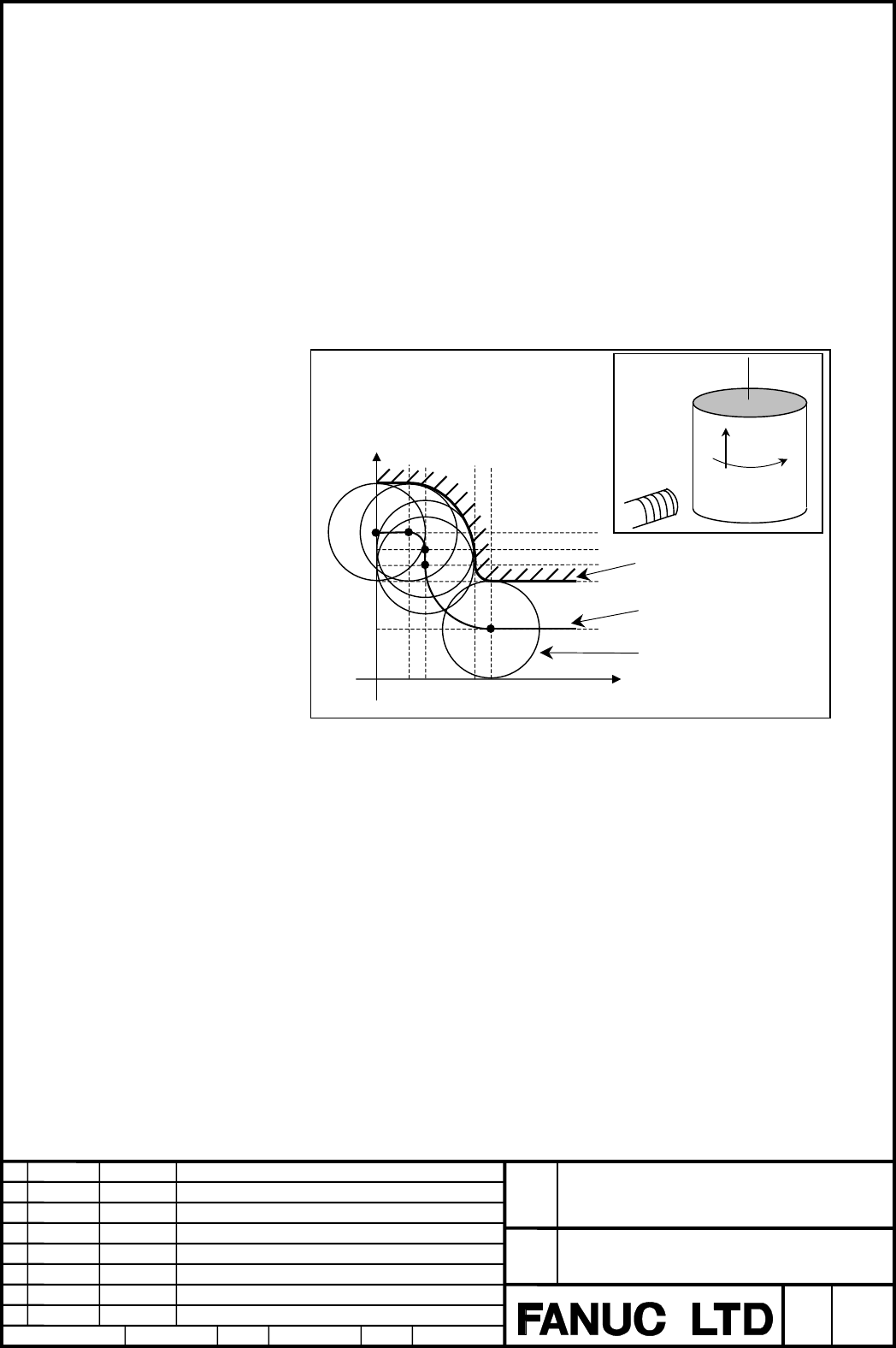

Fig.2.21.5 (a) Path of Sample Program for Cylindrical Interpolation
Cutting Point Compensation
Z-axis
C-axis on the Cylindrical surface
Tool center path
Programmed path
Tool
20 30
60 70 (deg)
30
60
70
80
90
120
(mm)
C-axis on the
Cylindrical
surface
Z-axis
Tool
(1)
(2) (3)
(4)
(5)
