FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
96/190
3) When the amount of travel (L1) of block N2 is less than the value set in
parameter No. 19535, as shown in Fig.2.21.3 (e), cutting point
compensation is not applied between blocks N1 and N2. Instead, block
N2 is executed with the cutting point compensation of the previous block.
When the amount of travel (L2) of block N3 is greater than the value set
in parameter No. 19535, cutting point compensation is applied between
blocks N2 and N3.

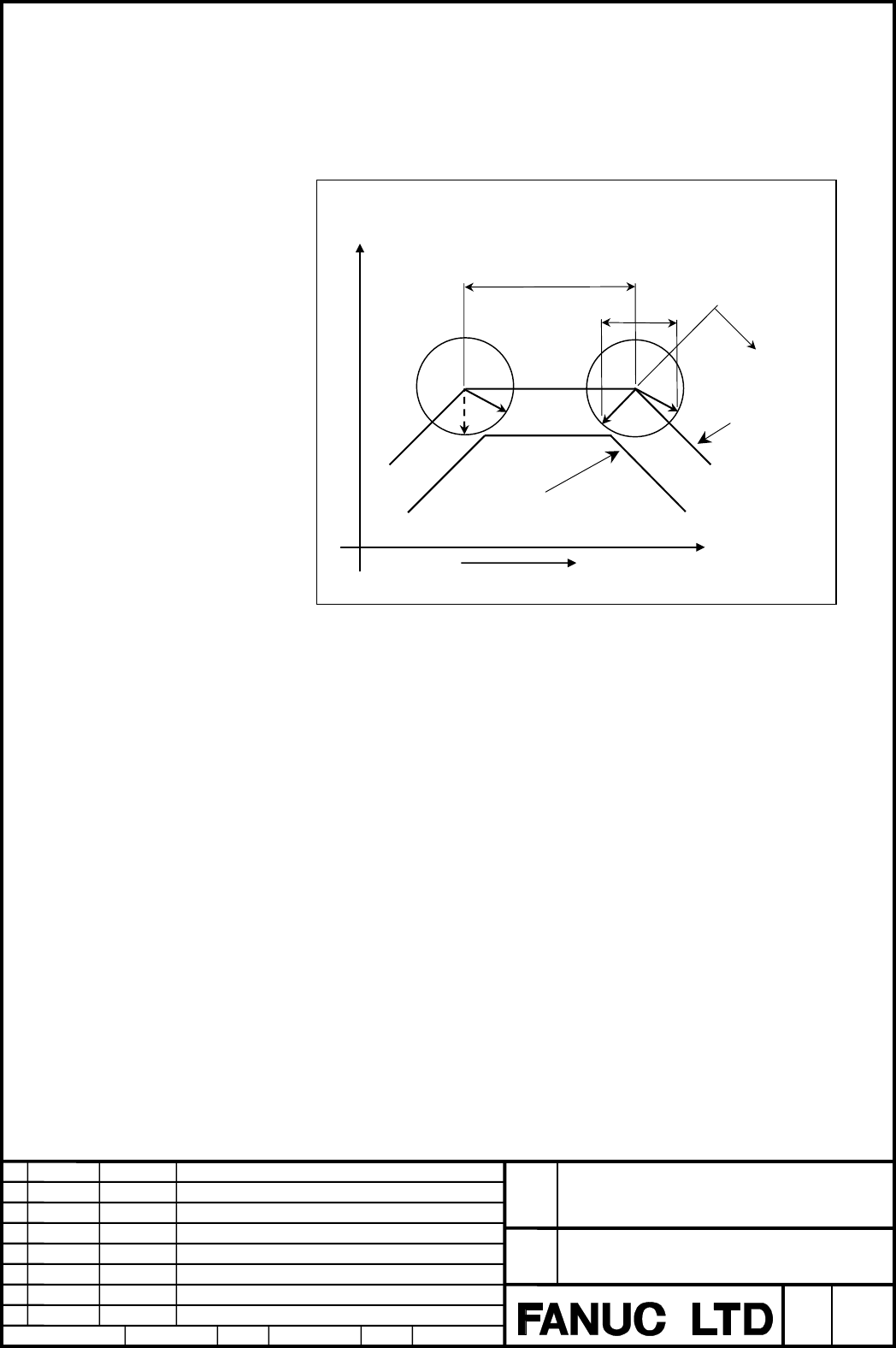

Fig.2.21.3 (e) When the Amount of Travel (L1) of Block N2 Is Less
Than the Parameter Value
Z-axis
C-axis on the
cylindrical surface
Y-axis
C1
C2
V
Tool center path
Programmed path
V : C-axis component of C2 - C1
C1 : Cutting surface of blocks N1 and N2
C2 : Cutting surface at the end of block N3
C1
N1
N2
N3
L1
L2
