FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
27/190
2.15 Scaling, Coordinate System Rotation, Programmable Mirror Image
2.15.1 Scaling
(1) All axis scaling
• Outline
A programmed figure can be magnified or reduced (scaling).
To make this function effective, please set the parameter No.8485#0 (G51) and
No.5401#0 (SCLx) to “1”.
This function can use only in the AI HPCC / AI NANO HPCC mode.
This function is an additional option.
• Format
G05 P10000 ; : Starting of AI HPCC / AI NANO HPCC mode
G51.X_ Y_ Z_ P_ ; : Starting of scaling mode
G50 ... ; : Ending of scaling mode
G05 P0 ; : Ending of AI HPCC / AI NANO HPCC mode
Each code has the following meaning.
G51 : Scaling start
X_ Y_ Z_ : Absolute command for center coordinate value of scaling
P_ : Scaling magnification
G50 : Scaling cancel
• Center of scaling
The point commanded by X, Y, and Z of the same to G51 block becomes the center
of scaling.
When X, Y, and Z are omitted, the position of the instruction in G51 becomes the
center of scaling.
• Scaling magnification
Movement amount is scaled by the magnification instructed by P of the block of
G51.
If P is not instructed, the magnification set by parameter No.5411 is used.
The magnification that can be instructed is as follows:
0.00001 ∼ 9.99999 or 0.001 ∼ 999.999

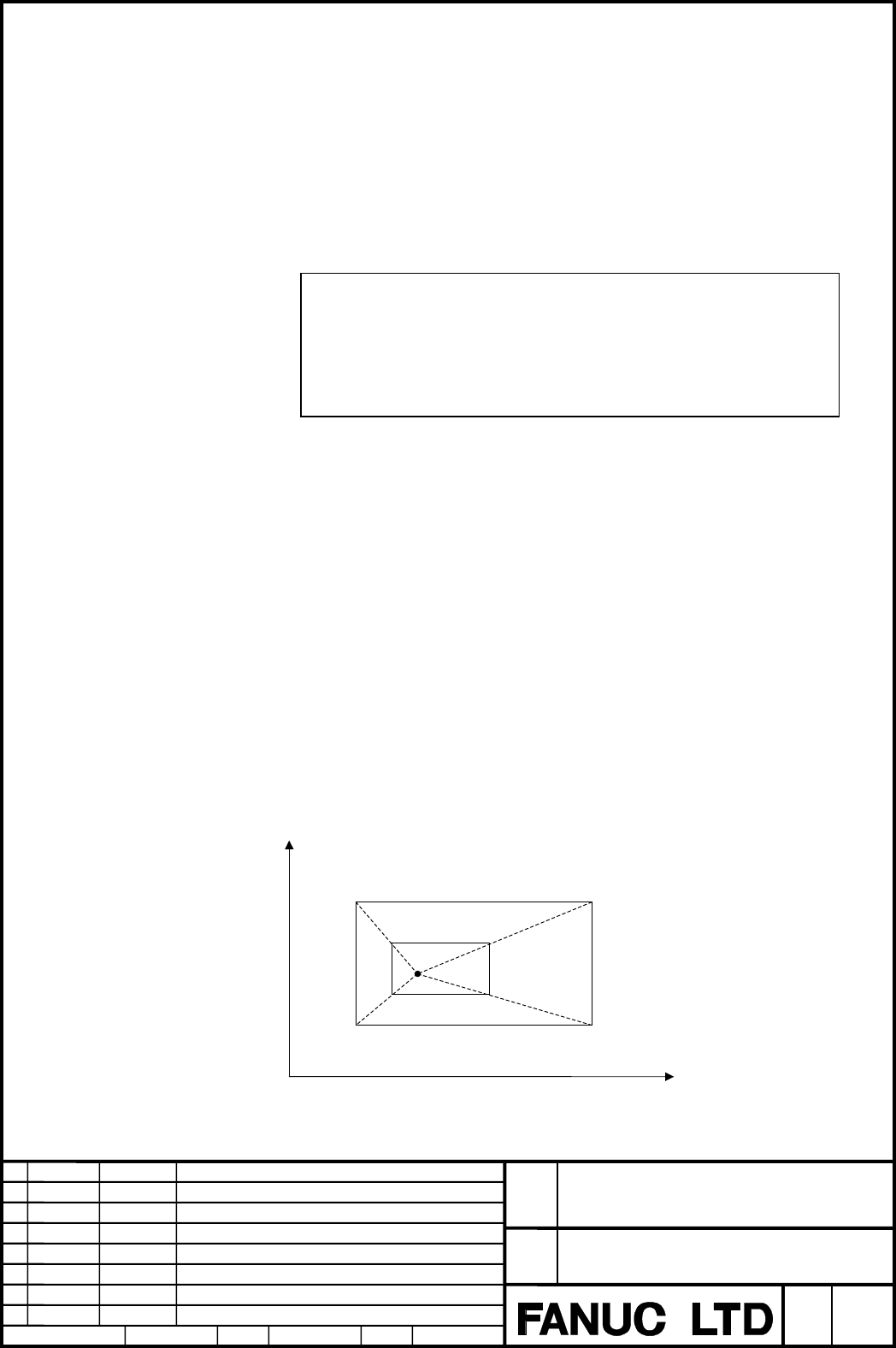

Y
X
P
4
P
3
P
1
P
2
P
4
’
P
3
’
P
1
’
P
2
’
P
1
--P
4
:
Programmed figure
P
1
’--P
4
’
: Scaled figure
Po
: Scaling center
Po
…
