FANUC Series 16i /18i Additional Manual Page 41

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
41/190
2.16.2 Format
G05 P10000 ; :Starting of AI HPCC / AI NANO HPCC mode
G43.4 H_ ; :Starting tool center point control
G01 X_ Z_ Y_ B_ C_ ; :Linear interpolation command
; including rotary axis command
:
:
G49 ; :Ending of tool center point control
G05 P0 ; :Ending of AI HPCC / AI NANO HPCC mode
H code means tool offset number.
Please command G43.4 H_ and G49 alone.
2.16.3 Description
• Programming coordinate system
The workpiece coordinate system becomes a programming coordinate system by
commanding G43.4. The programming coordinate system mentioned here means
the coordinate system for the tool center point control.
It can be selected whether the programming coordinate system rotates along
with the rotation of the table (C axis) by WKP of parameter No.19696#5.
It does not rotate along with the rotation of the tool head (B axis).

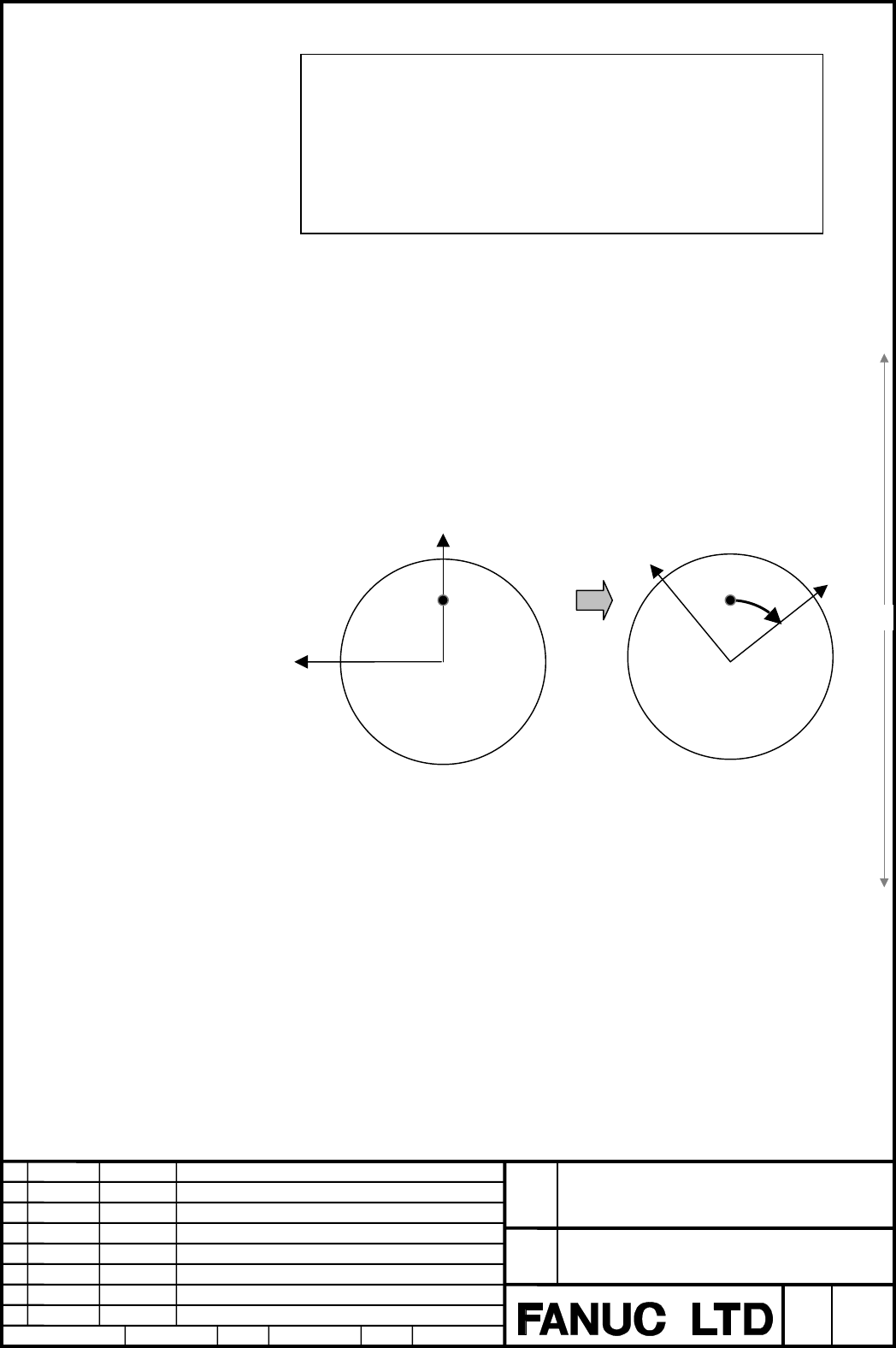

• When parameter No.19696#5(WKP) is ‘0’.
The programming can be purely done to workpiece as the rotation angle of
workpiece does not worry when the programming coordinate system rotates
along with the rotation of workpiece.
The path of the tool center point becomes a straight line for the workpiece when
a linear interpolation is commanded which includes the rotation axis.
Y axis
X axis Y axis
X axis
C axis
(3)
