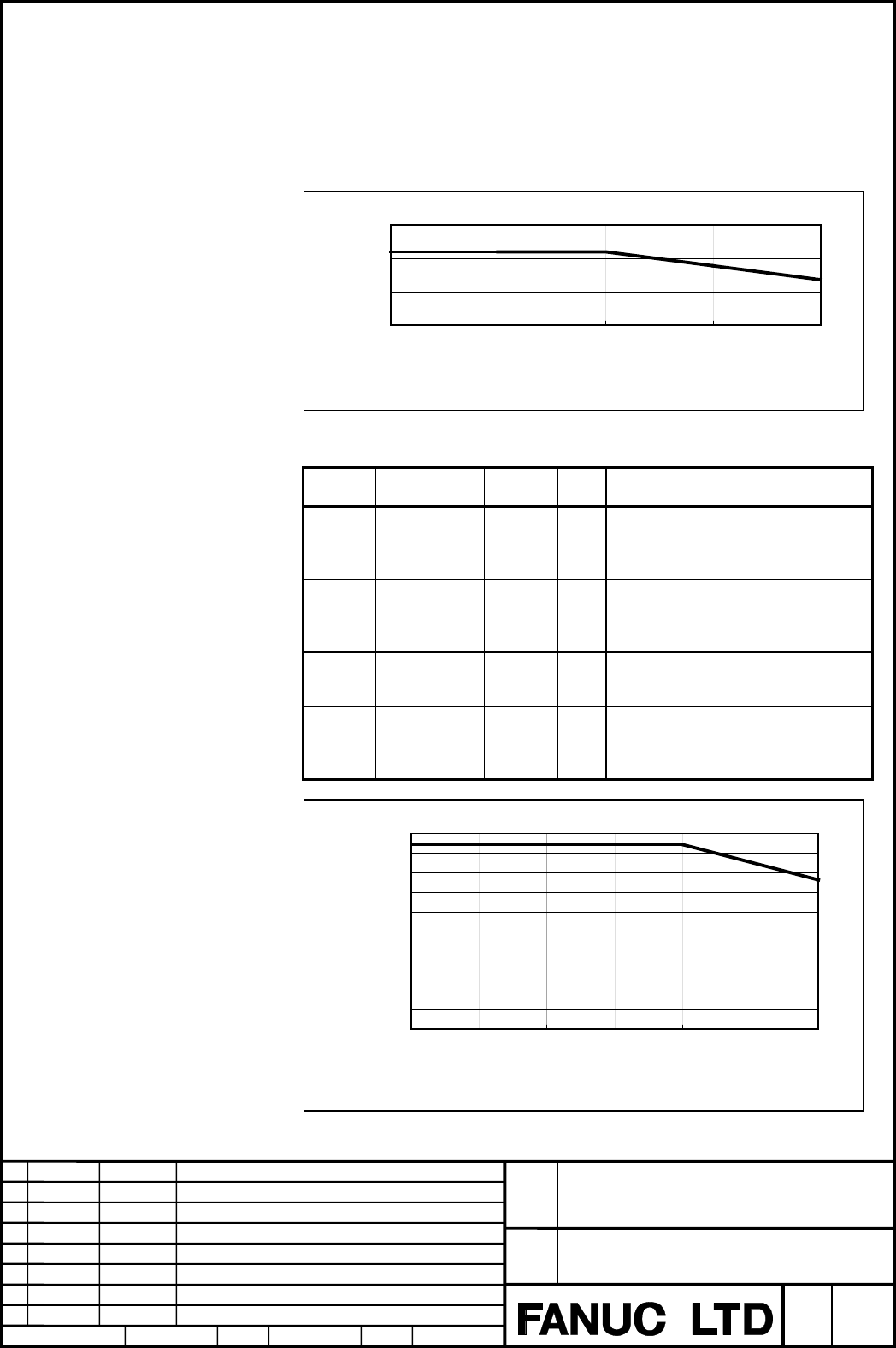

(3) In case of minus move (down) and acceleration
Because torque of Gravity works forward to the output torque of motor and
torque of friction works against the output torque of motor, torque for
acceleration/deceleration is as follows.
Maximum torque : 110(=100+20-10) (Nm) Speed: 0 to
2000 (min
-1
)
Torque at rapid traverse : 89(=79+20-10) (Nm) Speed: 3000 (min
-1
)
Minimum torque : 68(=58+20-10) (Nm) Speed: 4000
(min
-1
)
0
50
100
150
0 1000 2000 3000 4000
Speed(min
-1
)
Torque(Nm)
P0 P1
P5
Fig. 2.24(k) Torque for Acc/Dec in case of - move and acceleration
Parameter setting is as follows,
Parameter
No.
Setting Unit Remarks
Acceler
ation at
P0
19551 22869 0.01
%
At P0, 110(Nm) can be used for the
acceleration/deceleration, so set the
ratio 9431 (mm/sec
2
) to 4124
(mm/sec
2
). 2.2869 = 9431/4124
Acceler
ation at
P1
19552 22869 0.01
%
At P1, 110(Nm) can be used for the
acceleration/deceleration, so set the
ratio 9431 (mm/sec
2
) to 4124
(mm/sec
2
). 2.2869 = 9431/4124
Acceler
ation at
P2 - P4
19553-19555 0 0.01
%
0 is set because P2 to P4 are
skipped.
Acceler
ation at
P5
19556 18504 0.01
%
At P5, 89(Nm) can be used for the
acceleration/deceleration, so set the
ratio 7631 (mm/sec
2
) to 4124
(mm/sec
2
). 1.8504 = 7631/4124
P1
P0
0
1000
2000
3000
4000
5000
6000
7000
8000
9000
10000
0 16000 32000 48000
Speed (mm/min)
Acceleration (mm/sec
2
)
P5
Fig. 2.24(l) Acceleration pattern in case of - move and acceleration
