FANUC Series 16i /18i Additional Manual Page 65

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
65/190
(2) Type B (Parameter No.5003#0(SUP)=1)
Type B operation is similar to cutter compensation as shown below.
Tool
G41.2
G40
:Tool center path
:Programmed tool path
Operation in linear interpolation
:Tool center path
:
Programmed tool path
Tool
G42.2
G40
Operation in circular interpolation

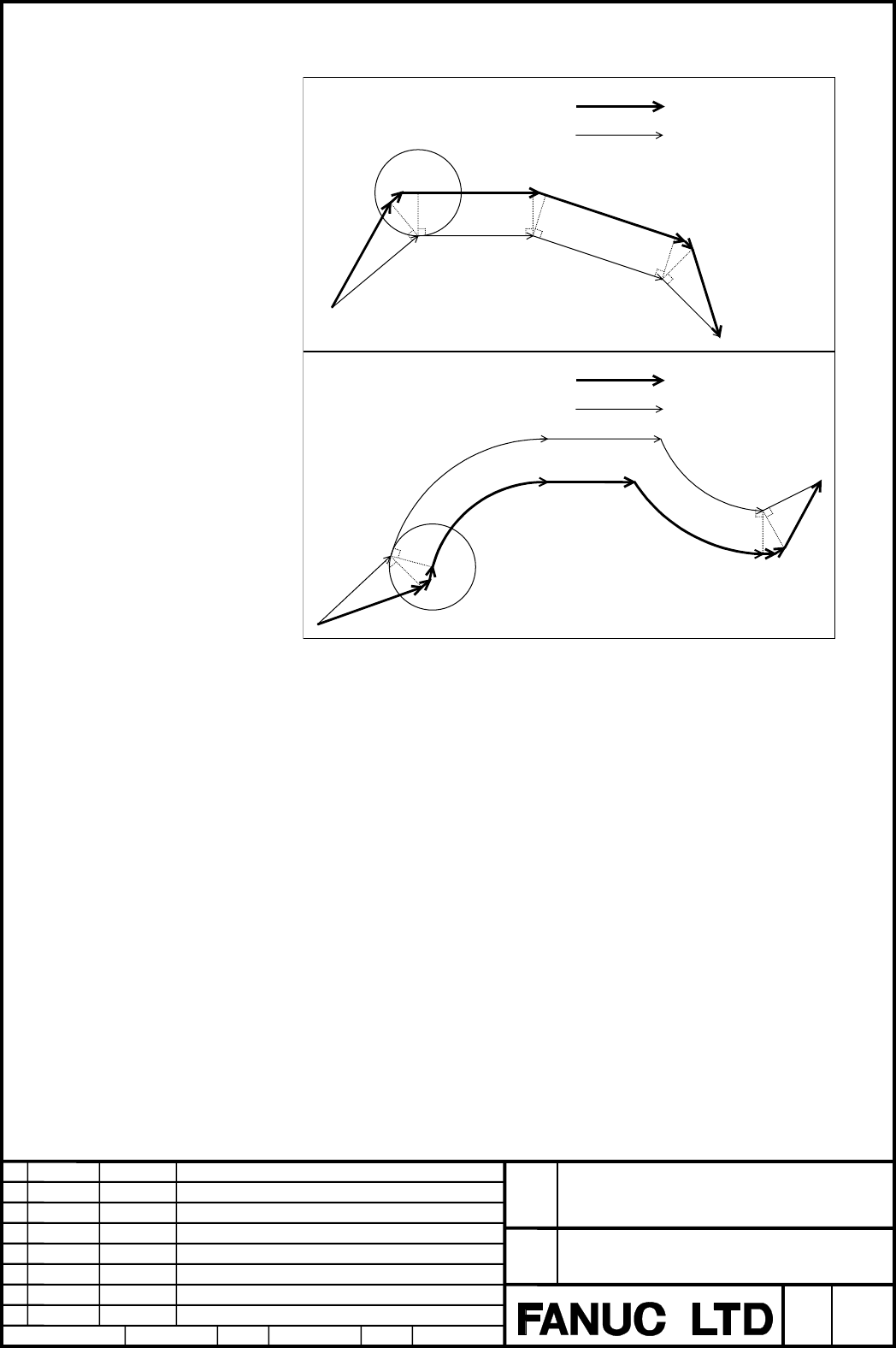

Fig. 2.17.3 (b) Operation at compensation start-up and cancellation
(Type B)
