FANUC Series 16i /18i Additional Manual Page 30

Additional Manual
A-78640E
Sheet
Title
Draw
No.
04 Feb.08.’03 Part of (4) is added or modified. Addition of 2.16.5
03 Jul.02.’02 A. Fukumoto Part of (3) is added or modified. T.Endo
02 May.13.’02 A. Fukumoto Addition of Tool Radius control for 5-axis machining etc T.Endo
Ed. Date Design Description
Date Jan.25.’02 Desig. A.Fukumoto Apprv. T.Endo
FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
30/190
• Circular interpolation
Note
Even if different magnifications are applied to each axis in circular interpolation,
the tool will not trace an ellipse.
Example )
G90 G00 X0.0 Y100.0 Z0.0 ;
G51 X0.0 Y0.0 Z0.0 I2000 J1000;
G02 X100.0 Y0.0 I0 J-100.0 F500 ;
Above commands are equivalent to the following command:
G90 G00 X0.0 Y100.0 Z0.0 ;
G02 X200.0 Y0.0 I0 J-100.0 F500 ;
At this time, the circular interpolation becomes spiral because the end
point is not corresponding to the radius.

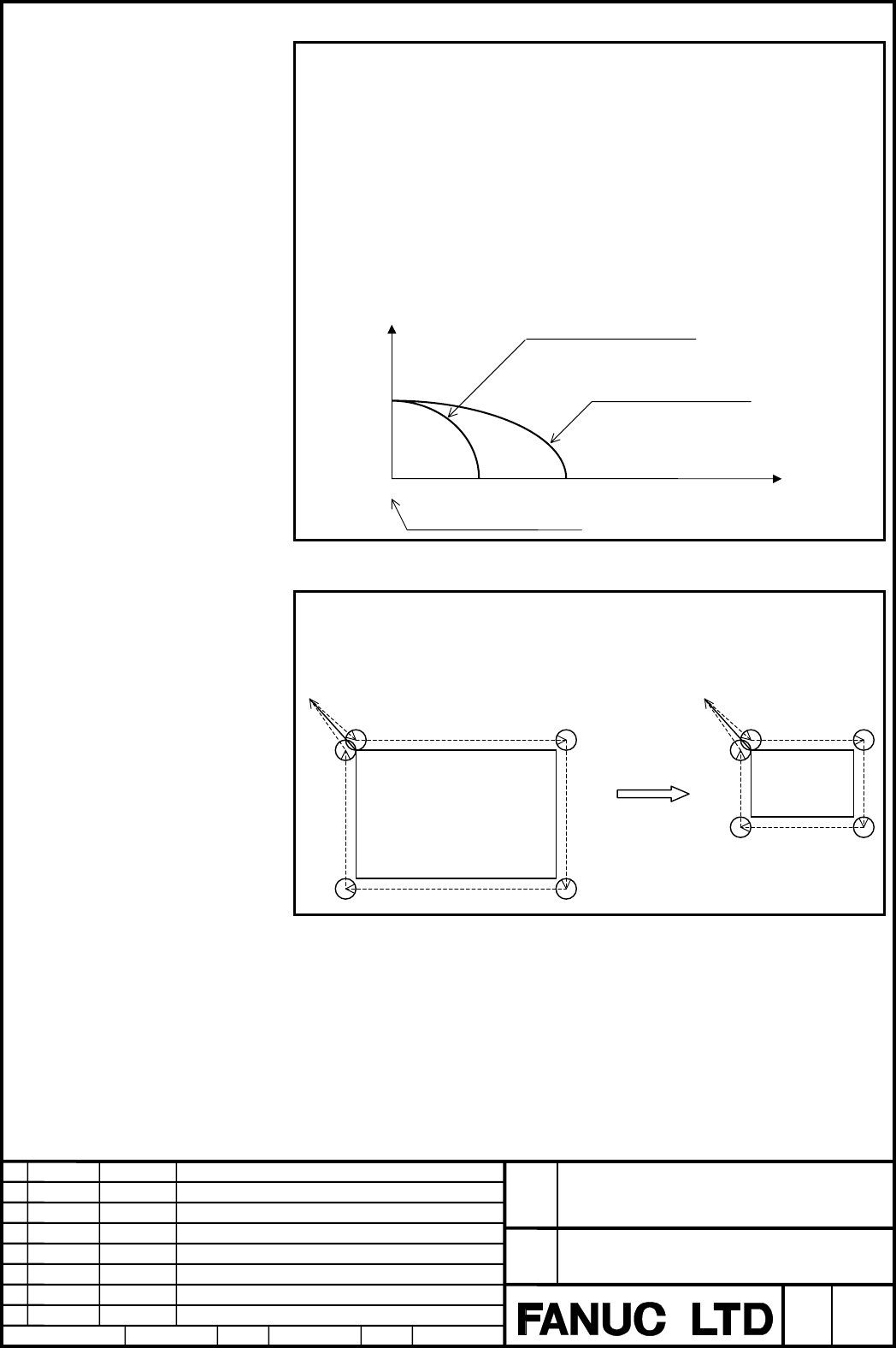

• Tool Offset
Note
This scaling is not applicable to tool offset values such as cutter compensation
values, tool length offset values, and so on.
Y
X
O
Scaling center
Figure without scaling
Figure after scaling
1/2 scaling
