FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
51/190
< Operation when assuming that C axis stationary and seeing from positive direction of Z >

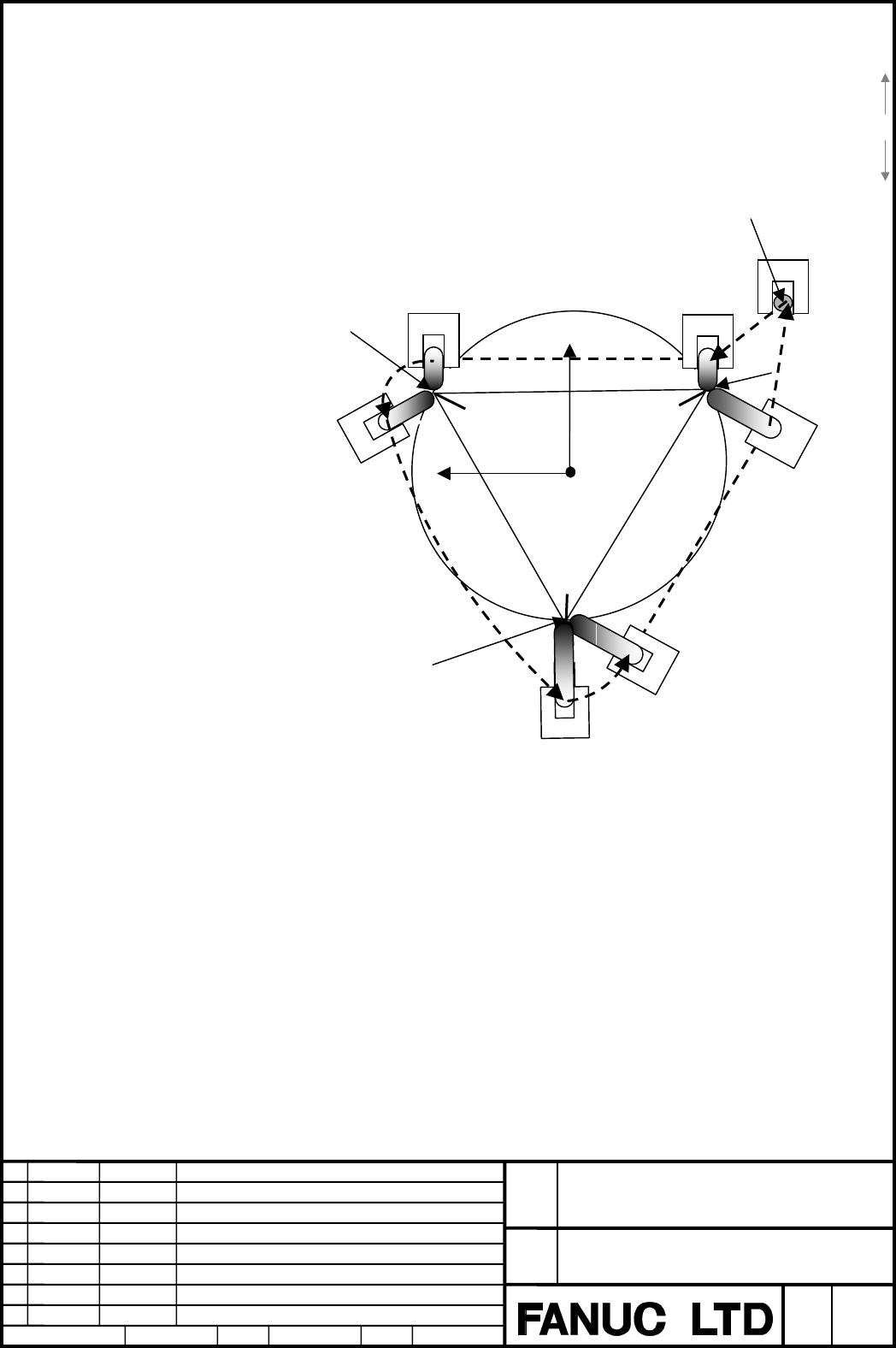

The following figure is showing of a relative position and the posture of work
and the tool head seen from the direction of +Z. X and Y coordinates value in
figure are the values in the programming coordinate system (coordinate
system which rotates by rotating C axis) fixed to the table.
(C 0.0)
(C 120.0)
(C 240.0)
(B –60.0)
(B –45.0)
( X 28.868, Y 50.0 )
( X 28.868,Y- 50.0,)
(B –60.0)
(X 50.0, Y -70.0, Z300.0, B-90.0)
(B –30.0)
( X –57.735, Y 0.0,)
(B –30.0)
(B –30.0)
Y
X
(3)
