• Modal
G code of group 01 when instructing in G05.1 Q2 should be G01.
When G code is not G01, P/S alarm 010 occurs.
2.13.5 Example
Sample program of smooth interpolation
G05 P10000
G05. 1 Q2 X0 Y0 Z0
N01 G91 G01 X1000 Z-300 F500
N02 X1000 Z-200
N03 X1000 Z-50
N04 X1000 Z50
N05 X1000 Z50
N06 X1000 Z-25
N07 X1000 Z-175
N08 X1000 Z-350
N09 Y1000
N10 X-1000 Z350
N11 X-1000 Z175
N12 X-1000 Z25
N13 X-1000 Z-50
N14 X-1000 Z-50
N15 X-1000 Z50
N16 X-1000 Z200
N17 X-1000 Z300
G05.1 Q0
G05 P0
N1
N2
N3
N4
N5
N6
N7
N8
N17
N16
N14
N13
N11
N12
N15
N10
N9
Interpolated by smooth curve
Linear interpolation
Interpolated by smooth curve

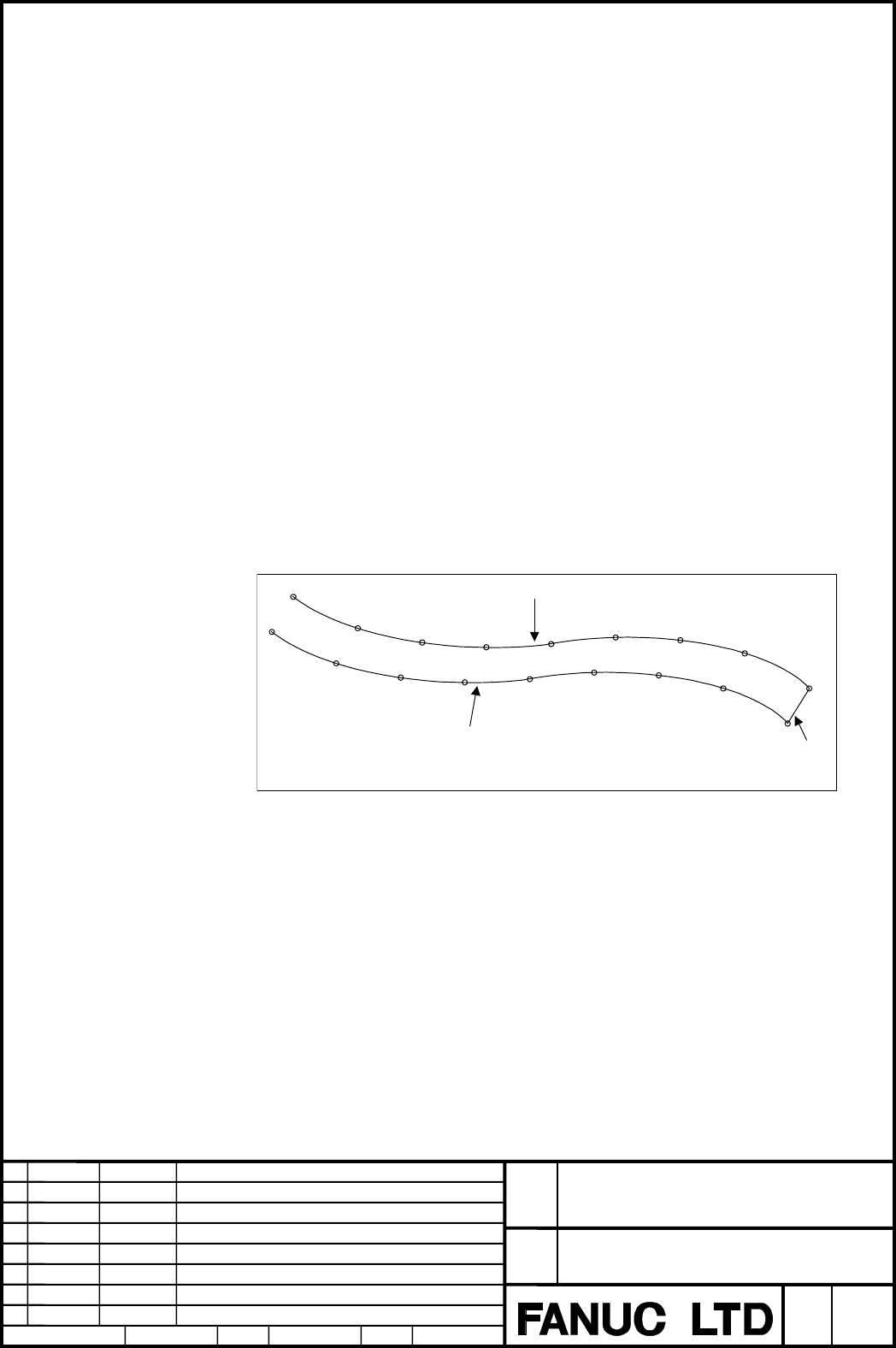

Fig. 2.13.5 (a) Sample program of smooth interpolation
