FANUC Series 16i /18i -TB
Specifications of AI High-Precision Contour Control /
A
I Nano High-Precision Contour control
89/190
• Conical interpolation

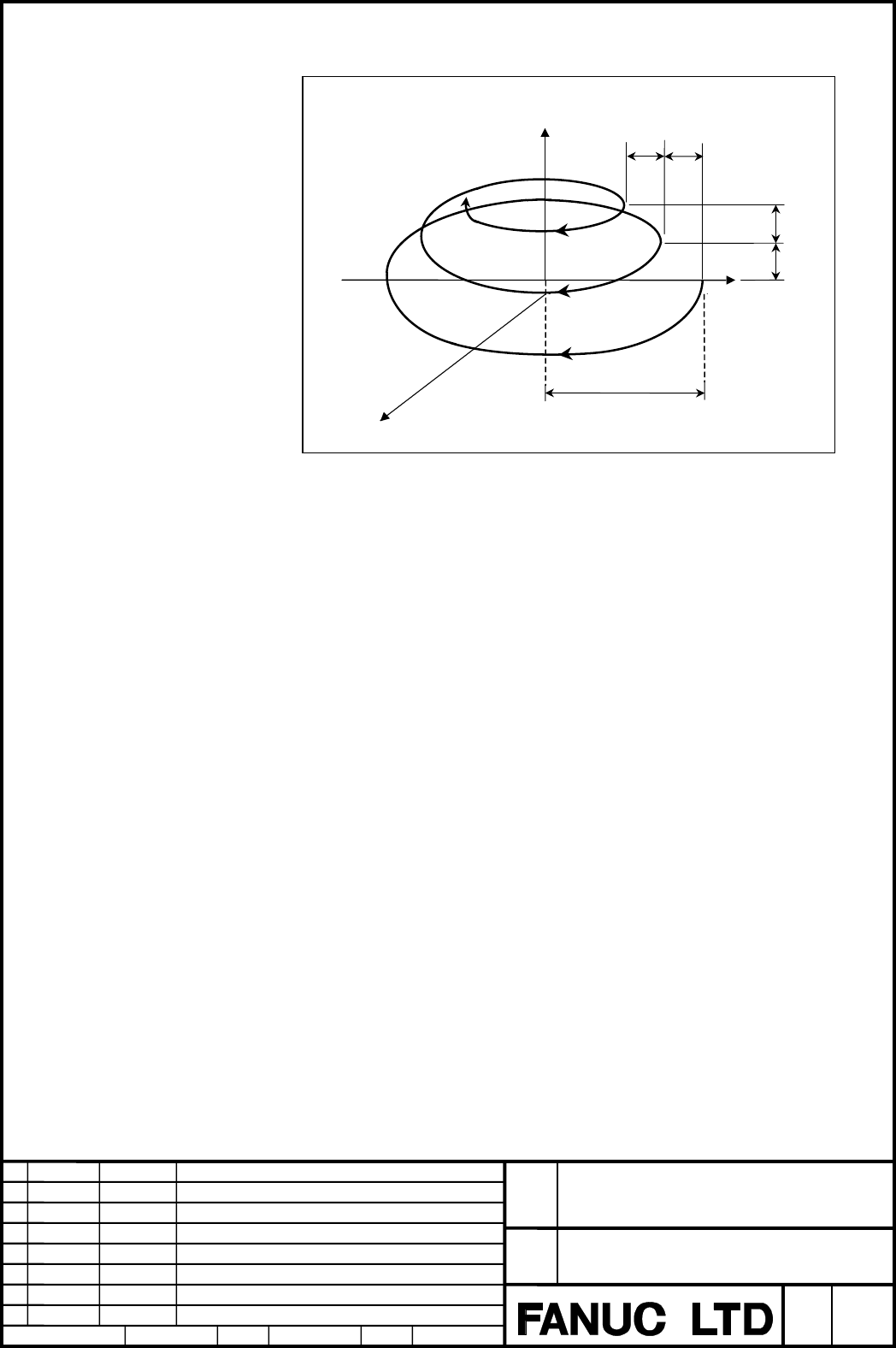

Fig. 2.19.5 (b) Conical interpolation
The sample path shown above is programmed with absolute and incremental
values as follows:
This sample path has the following values:
- Start point : (0,100.0,0)
- End point (X,Y) : (0,-37.5,62.5)
- Distance to the center (I,J) : (0,-100.0)
- Radius increment or decrement (Q) : -25.0
- Height increment or decrement (K) : 25.0
- Number of revolutions (L) : 3
(1) With absolute values, the path is programmed as follows:
G90 G02 X0 Y-37.5 Z62.5 I0 J-100.0 { K25.0, Q-25.0, or L3}
F300 ;
(2) With incremental values, the path is programmed as follows:
G90 G02 X0 Y-137.5 Z62.5 I0 J-100.0 { K25.0, Q-25.0, or L3}
F300 ;
+Z
+Y
+
X
(0,-37.5,62.5)
25.0
25.0
25.0
25.0
100.0
-100.0
